Armeg CDD152 Dry Diamond 152mm Core Drill – 150mm Core Bit for Masonry

Description

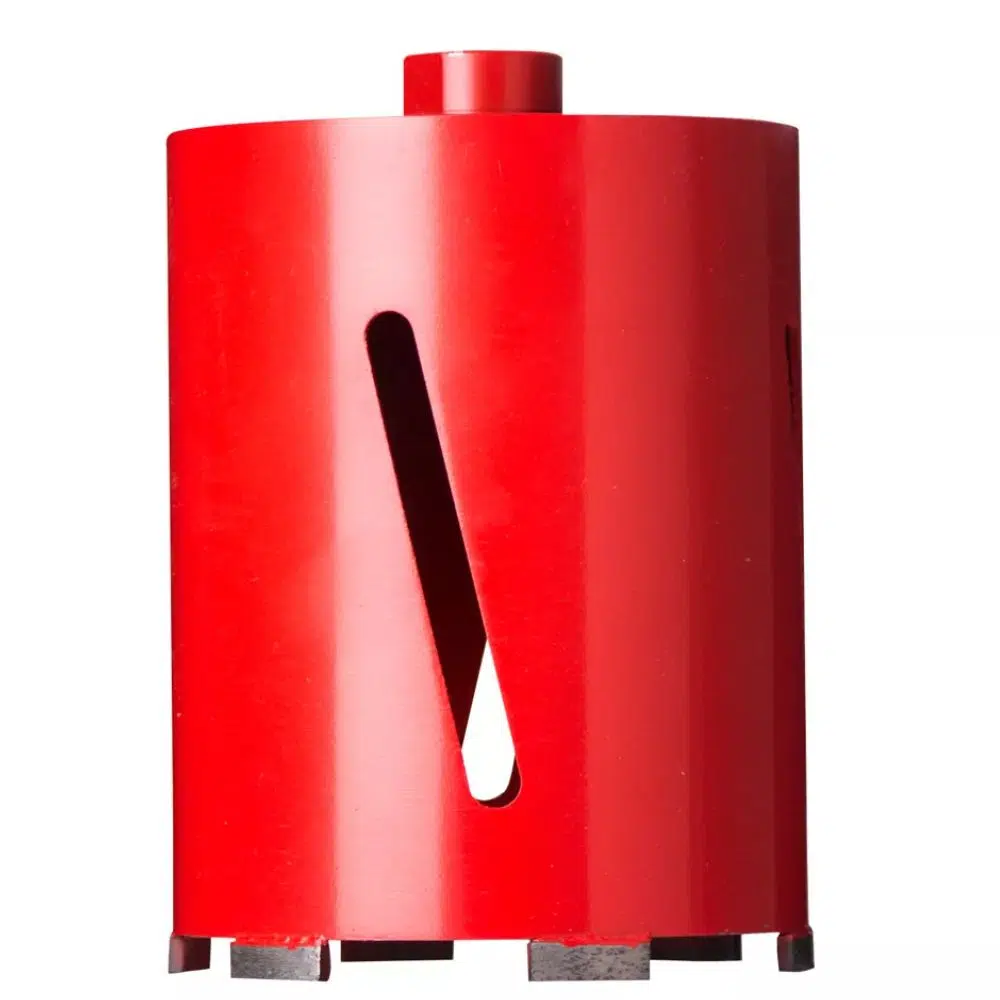

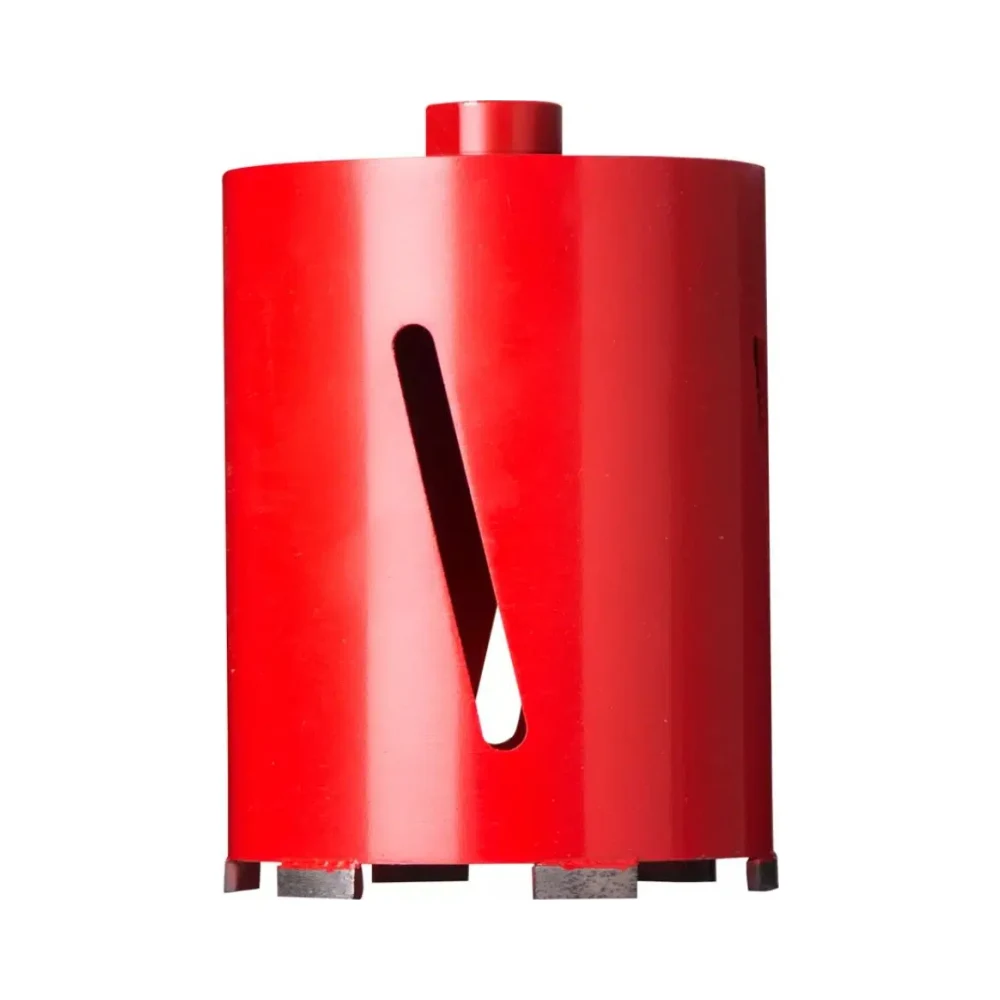

Dry Diamond – 152mm Professional Core Drill

Armeg CDD152

Precision-Engineered for Masonry and Concrete, the Armeg CDD152 Dry Diamond 152mm Core Drill is built for the trade.

The Armeg CDD152 Dry Diamond Core Drill is designed for high-speed, rotary-only drilling through soft bricks, lightweight blocks, and general concrete. Optimised for 850W+ machines with a 1/2” BSP fitting, it offers excellent cutting speed and a long service life when paired with the correct pilot and adaptor. The precision diamond segments ensure clean coring with reduced vibration and efficient debris clearance.

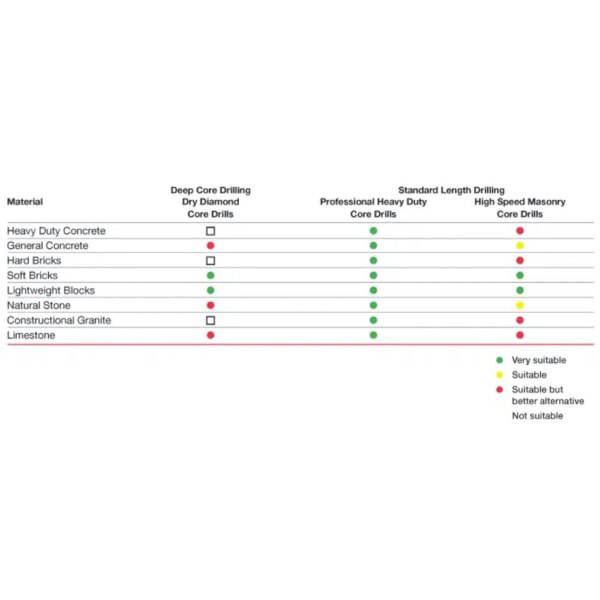

Material Suitability

✔️ Very Suitable For:

• Soft bricks
• Lightweight blocks

✔️ Also Suitable For:

• General concrete
• Natural stone
• Limestone

Key Features of the Armeg Dry Diamond Core Drill

• 152mm Diameter – Ideal for larger pipe and cable access
• 130mm Working Length – Delivers sufficient reach for most installations
• Laser-welded diamond segments – Long life and clean cuts
• 1/2” BSP Male Connection – Fits standard adaptors
• Use rotary only – Not suitable for hammer action
• Minimum Drill Power: 850W recommended

Specifications

• Product Code: CDD152
• Type: Professional Dry Diamond Core Drill
• Diameter: 152mm
• Working Length: 130mm
• Overall Length: 150mm
• Fitting: 1/2” BSP Thread
• Application: Soft brick, lightweight block, concrete
• Use With: Rotary drills only (not SDS+ or hammer)

What’s Included?

• 1 x Armeg CDD152 Dry Diamond 152mm Core Drill (pilot drills and adaptors sold separately)

Why Choose the Armeg CDD152 Dry Diamond Core Drill?

• ✅ Delivers smooth, fast cuts in soft masonry and blockwork
• ✅ Professional-grade laser-welded segment construction
• ✅ Suitable for portable or fixed rotary drill machines
• ✅ Ideal for electricians, plumbers, and HVAC contractors

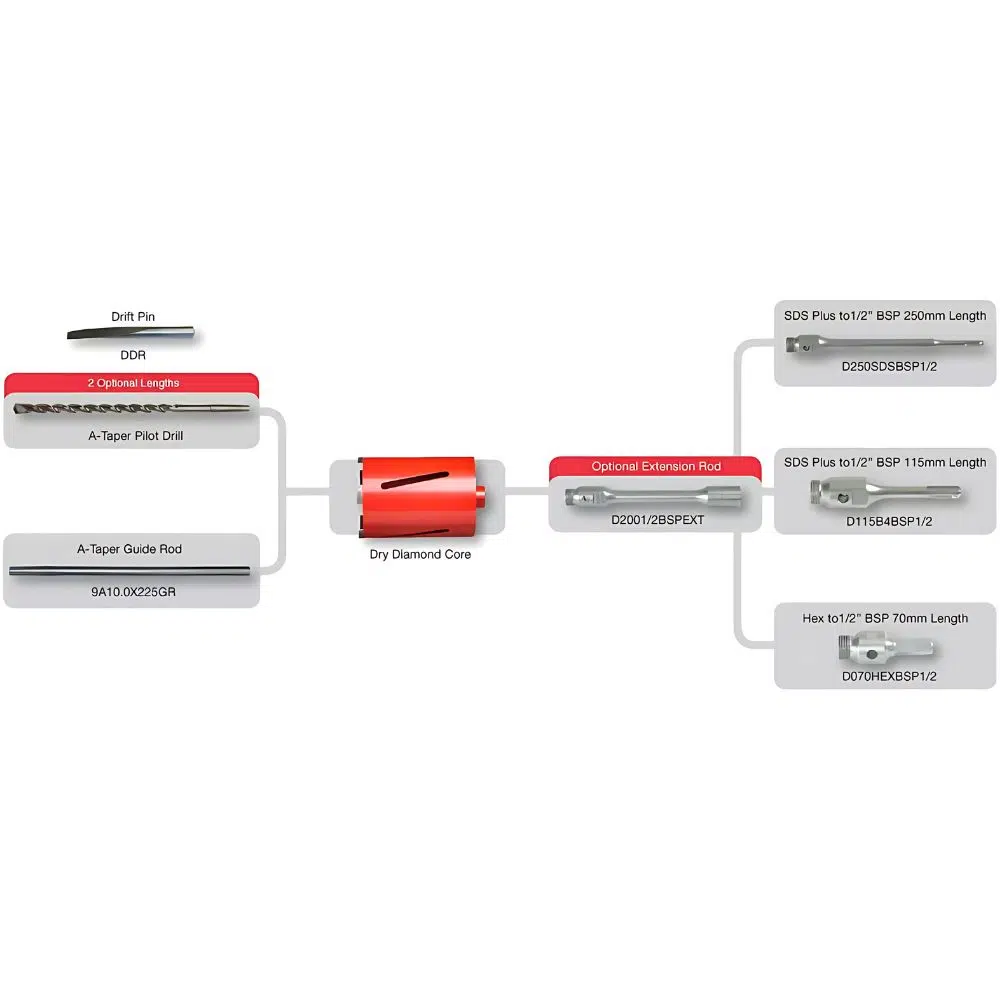

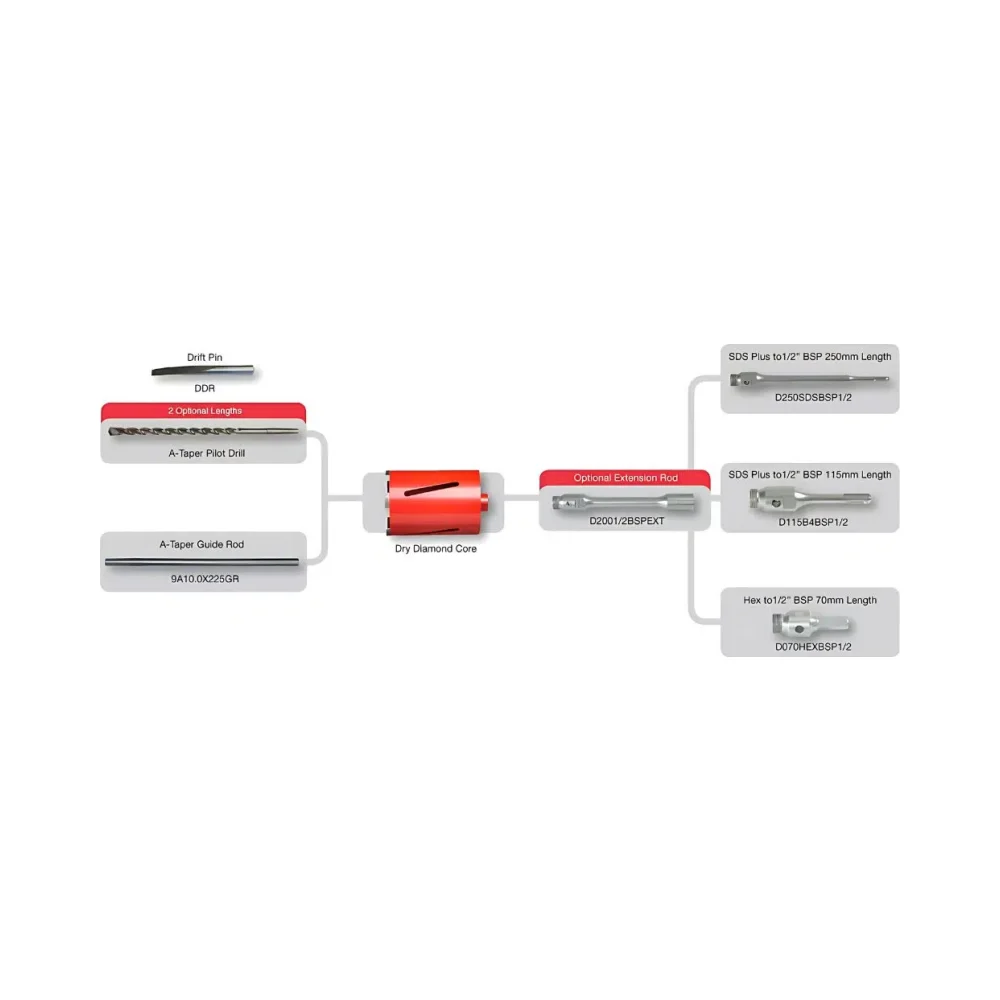

How to Assemble Your Armeg CDD152 Dry Diamond152mm Core Drill

To set up your Armeg CDD152 Dry Diamond 152mm Core Drill, start by inserting the A-Taper Pilot Drill into the core and lock it in place with the DDR Drift Pin.

If needed, add the A-Taper Guide Rod (9A10.0X225GR) for added stability.

Next, choose a suitable adaptor: use D250SDSBSP1/2 for 250mm SDS Plus, D115B4BSP1/2 for 115mm SDS Plus, or D070HEXBSP1/2 for 70mm Hex to BSP.

To extend your reach, connect the optional extension rod D2001/2BSPEXT between the core and adaptor.

Why Buy From Electrical4Less?

At Electrical4Less, we supply tried-and-tested core drilling tools like the Armeg CDD152 Dry Diamond Core Drill. With fast UK shipping and competitive trade pricing, we make it easy to find reliable solutions for brick, block, and concrete drilling on site.

Summary

The Armeg CDD152 Dry Diamond 152mm Core Drill combines precision, power, and durability. With long-life segments and a trade-ready build, it’s trusted by professionals needing a dependable solution for rotary-only dry core drilling.
