Description
Vibrant Dotless RGB Lighting – 40m Continuous COB LED Reel
Introduce brilliant colour control to your projects with the RGB COB 24V LED STRIP – 40M. This professional-grade LED strip delivers smooth, dot-free illumination using high-density Chip-on-Board (COB) technology, offering seamless RGB colour blending across its entire 40-metre length. Perfect for mood lighting, dynamic displays, and custom ambient effects, it transforms interiors with rich, consistent tones.
Engineered with 840 LEDs per metre and 50mm cut points, this IP20 strip offers outstanding layout flexibility. At just 5W per metre, it provides exceptional energy efficiency without sacrificing brightness. Whether you’re creating architectural highlights, backlighting shelves, or adding colour to bars and lounges, this long reel ensures maximum coverage with minimal joins.
Key Features – RGB COB 24V LED Strip (40m Reel, IP20)
- ✅ Dot-Free COB Technology – 840 LEDs/m for seamless, even output
- ✅ Rich RGB Output – Smooth colour mixing with up to 200lm (combined)
- ✅ Flexible Installation – Cuttable every 50mm
- ✅ 24V Operation – Compatible with standard RGB LED controllers and drivers
- ✅ Slim 10mm Width – Ideal for discrete integration in LED profiles
- ✅ Efficient & Reliable – 5W/m with up to 30,000 hours lifespan
- ✅ Interior Use – Best for retail, events, signage, and hospitality
- ✅ 3-Year Warranty – Backed by All LED for peace of mind
⚙️ Technical Specifications – RGB COB LED Tape
Electrical & Optical
- Voltage: 24V DC
- Wattage: 5W per metre
- Luminous Output: RED ≤37lm, GREEN ≤141lm, BLUE ≤24lm, RGB ≤200lm
- Beam Angle: 120°
- CRI: >80
- SDCM: <6
- Peak Intensity: RGB total ≤51cd
Physical
- IP Rating: IP20 (Indoor use only)
- Length: 40m reel

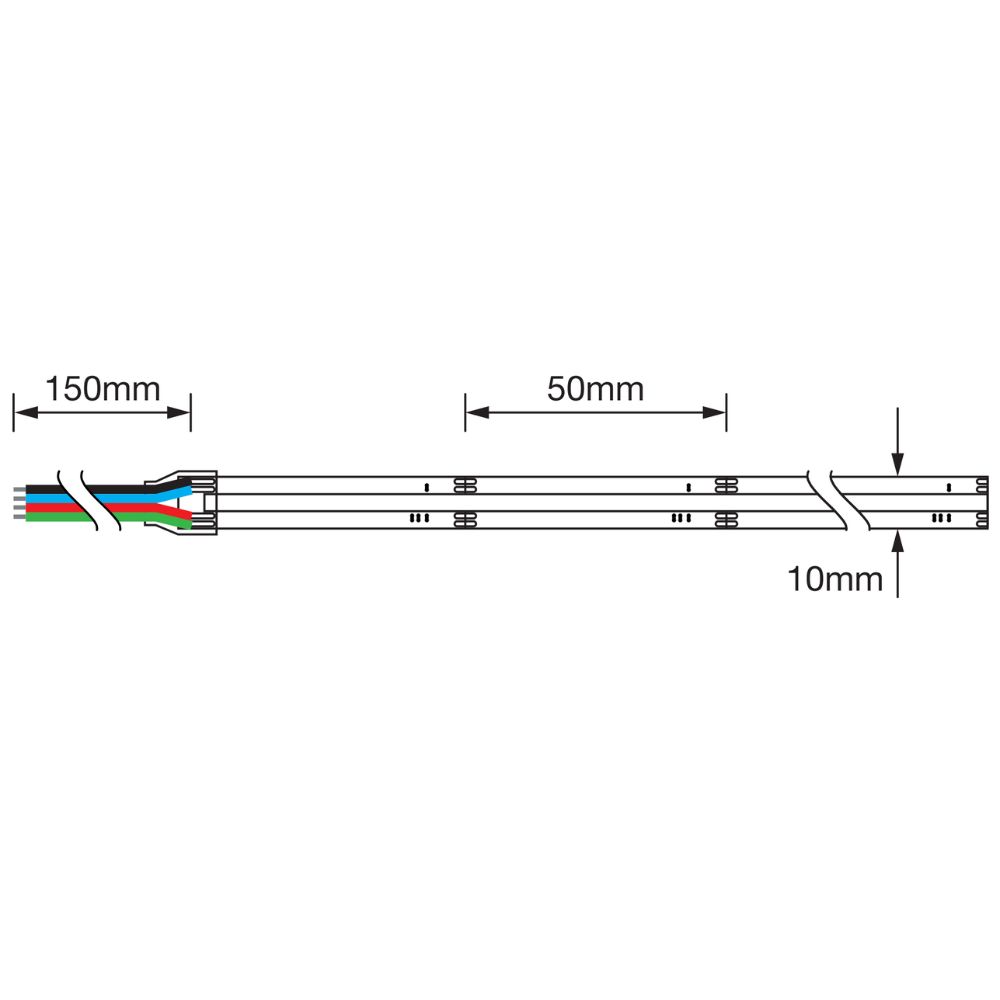

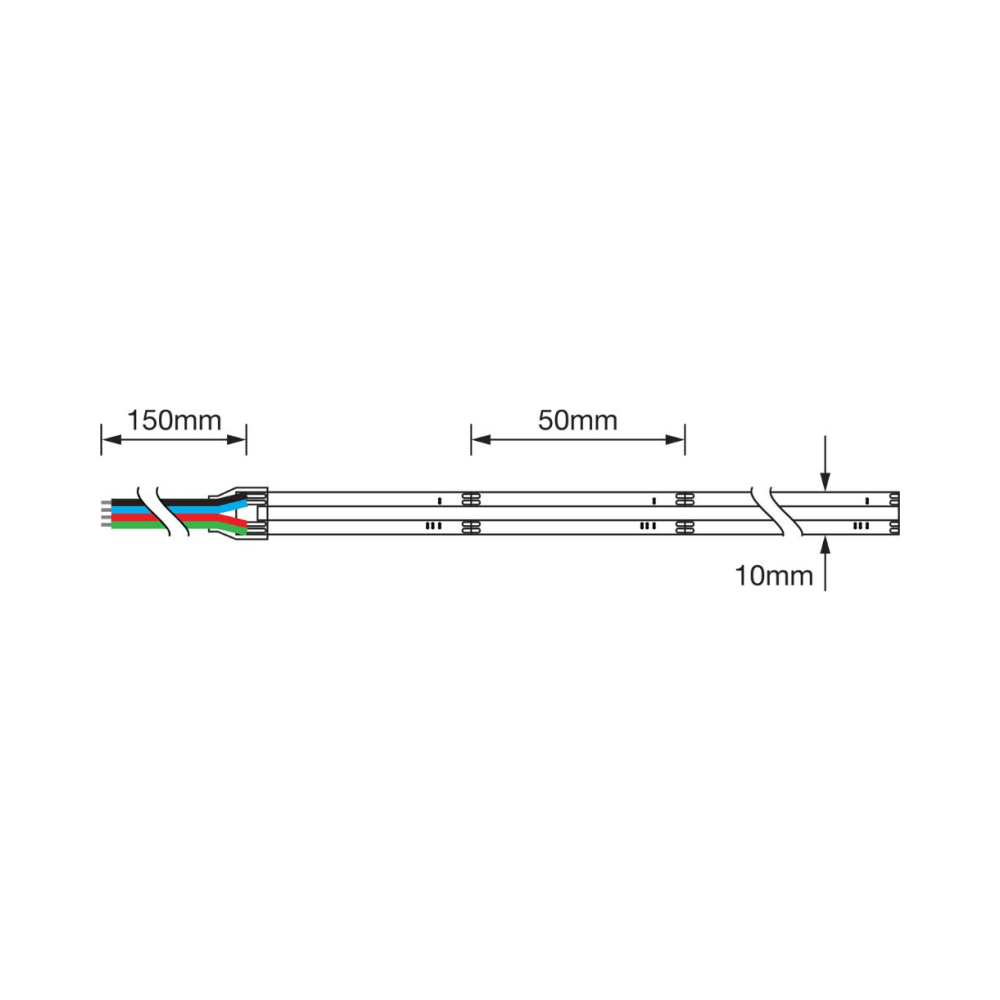

- Cut Points: Every 50mm
- LED Density: 840 LEDs/m
- PCB Width: 10mm
- Operating Temp: -20°C to +40°C
- Class: III
- Lifespan: 30,000 hours (L70 B50)
- Switching Cycles: >15,000
- Warranty: 3 years
Installation Advice
We recommend installing this RGB COB strip into an aluminium LED profile for effective heat dissipation and extended product life. It also creates a professional finish.
Browse LED Strip Profiles
Driver & Controller Guidance
This 40m IP20 RGB COB Dotless LED Strip should not be powered as one continuous run.
- Max length for single-ended feed: 10 metres
- Max length for double-ended feed: 20 metres
Choose a driver sized by: Length × 5W + 20%. Use compatible RGB controllers for full colour control ALL LED Strip Lights Controllers
Example: For 6m → 6 × 5W = 30W + 20% ≈ 36W driver recommended.
Why Choose This RGB COB Strip?
- ✅ Rich RGB blending with dotless output
- ✅ High-density LED layout for smooth transitions
- ✅ Flexible, cuttable every 50mm
- ✅ Easy to integrate into creative installations
- ✅ Long-lasting and energy efficient
