Description
🔆 Premium Dot-Free Illumination with Seamless Pro Technology

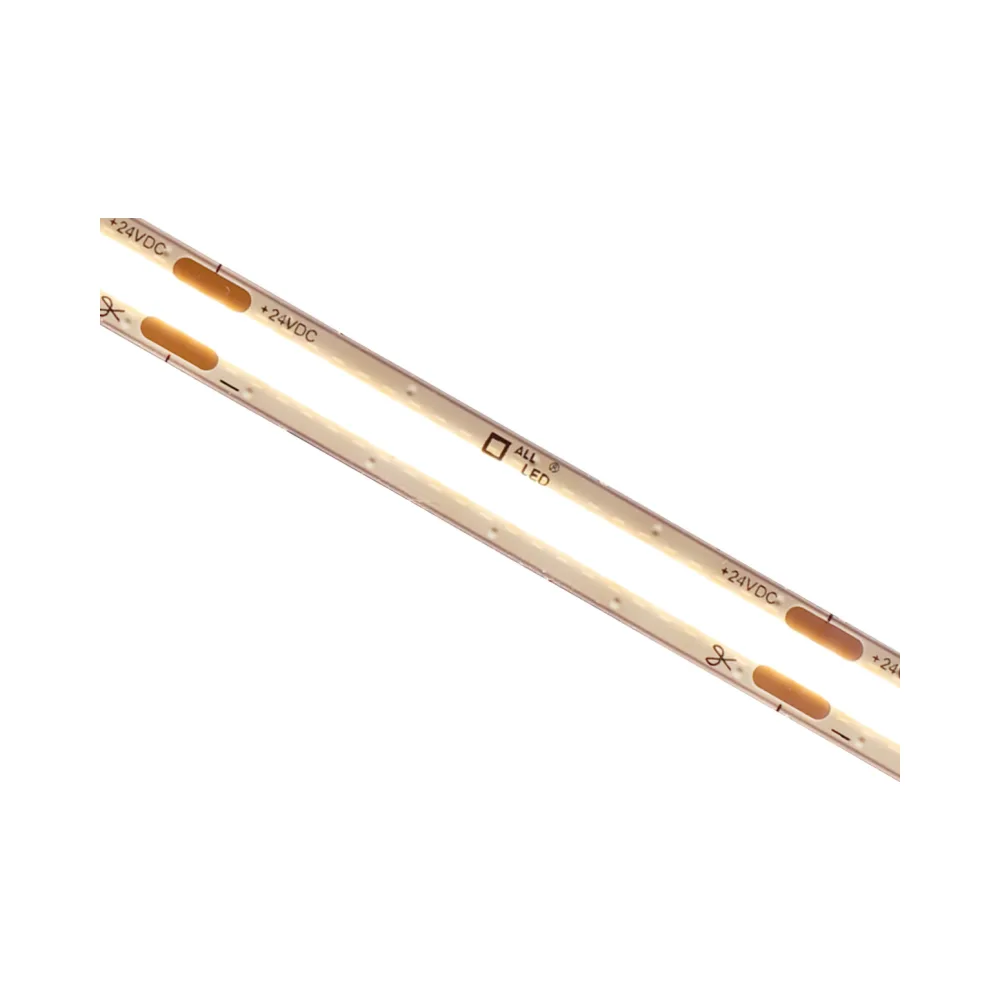

Experience high-quality linear lighting with the ALL LED Seamless Pro 9W/m 3000K COB Dotless LED Strip Light (AST09L/COB/30). This long 40-metre reel features state-of-the-art Chip-on-Board (COB) technology, delivering continuous, spot-free lighting with 420 LEDs per metre. Whether you’re illuminating kitchens, retail displays, or architectural features, this strip ensures rich warm white tones and high colour fidelity (CRI 90+).
With its IP20 indoor rating, this flexible strip is ideal for dry interior settings. Its 50mm cut points allow precise customization, and 24V DC operation ensures compatibility with both dimmable and non-dimmable drivers.
🔑 Key Features – 3000K COB LED Strip Light (IP20 Indoor Use)
- ✅ Dotless COB Technology – No visible spotting; ideal for clean lighting effects
- ✅ CRI >90 – Natural colour rendering for design-focused environments
- ✅ 3000K Warm White – Inviting and ambient colour temperature
- ✅ Dimmable – Pair with compatible 24V dimmable LED drivers
- ✅ Energy-Efficient – Only 9W per metre with high luminous output (700 lm/m)
- ✅ Precision Cutting – Cut every 50mm to match any space
- ✅ Flexible Build – 8mm PCB width for easy fitting into LED profiles
- ✅ Long-Life Performance – 30,000-hour lifespan, 3-year warranty
⚙️ Technical Specifications – AST09L/COB/30
Electrical & Performance:
- Voltage: 24V DC
- Wattage: 9W per metre
- Luminous Output: 700 lm/m
- Colour Temperature: 3000K
- CRI: >90
- Beam Angle: 120°
- Dimmable: Yes (with suitable driver)
Physical & Build:
- Total Length: 40 metres (Reel)
- LED Density: 420 LEDs/m
- Cut Points: Every 50mm
- PCB Width: 8mm
- IP Rating: IP20
- Operating Temp: -20°C to +40°C
- Class: III
- Lifespan: 30,000 hours
- Warranty: 3 years
📢 Important Installation Tip
Install your strip inside a suitable LED aluminium profile for improved heat dissipation and protection. Browse our range of 👉ALL LED Strip Profiles to complete your setup.
🔌 Driver Selection Guidance
💡 Tip: Although this is a 40m reel, LED strips should not be powered as one continuous run.
- For single-ended feeds: max 10m
- For double-ended feeds: max 20m
To choose the right driver size:
Multiply the length you plan to cut by the wattage per metre (9W) and add ~20% safety allowance.
Example:
For a 5m installation → 5m × 9W = 45W + 20% = ~54W
driver recommended.
For a 10m run → 10m × 9W = 90W + 20% = ~108W
driver.
🔗 Related Variants
Also available in:
- 🔄 2700K Very Warm White – 40m Reel
- 💠 4000K Cool White – 40m Reel
- ☀️ 6000K Daylight White – 40m Reel
- 💧 3000K Warm White – 30m IP67 Waterproof Reel
💬 Why Choose AST09L/COB/30?
This ALL LED Seamless Pro 24V COB Dotless Strip is designed for premium indoor applications that demand flawless lighting. With high CRI, flexible cutting, and reliable build quality, it’s the smart solution for architects, installers, and designers alike.
