Description
Dimmable 350mA Ground Uplight – 60mm Cut-Out
ALL LED AGL060AL/40

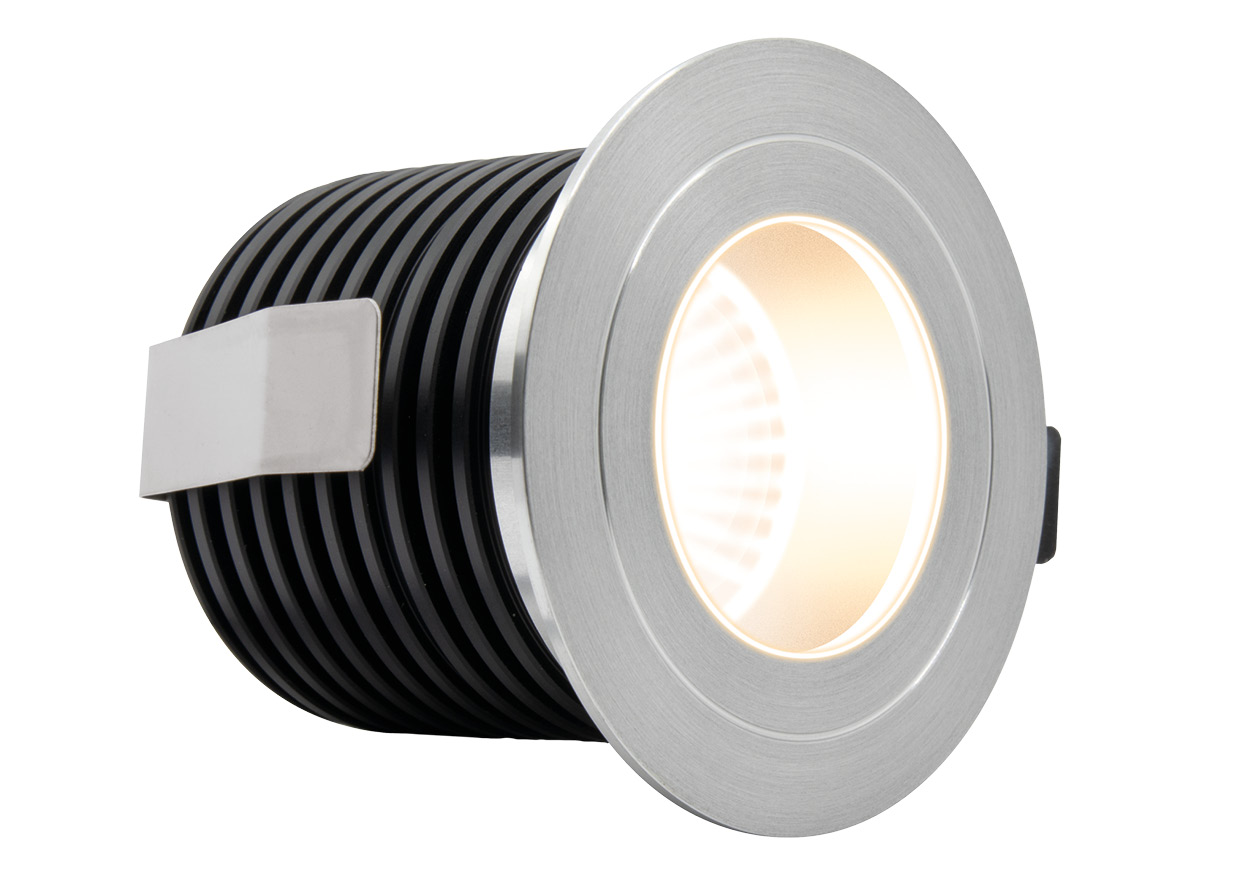

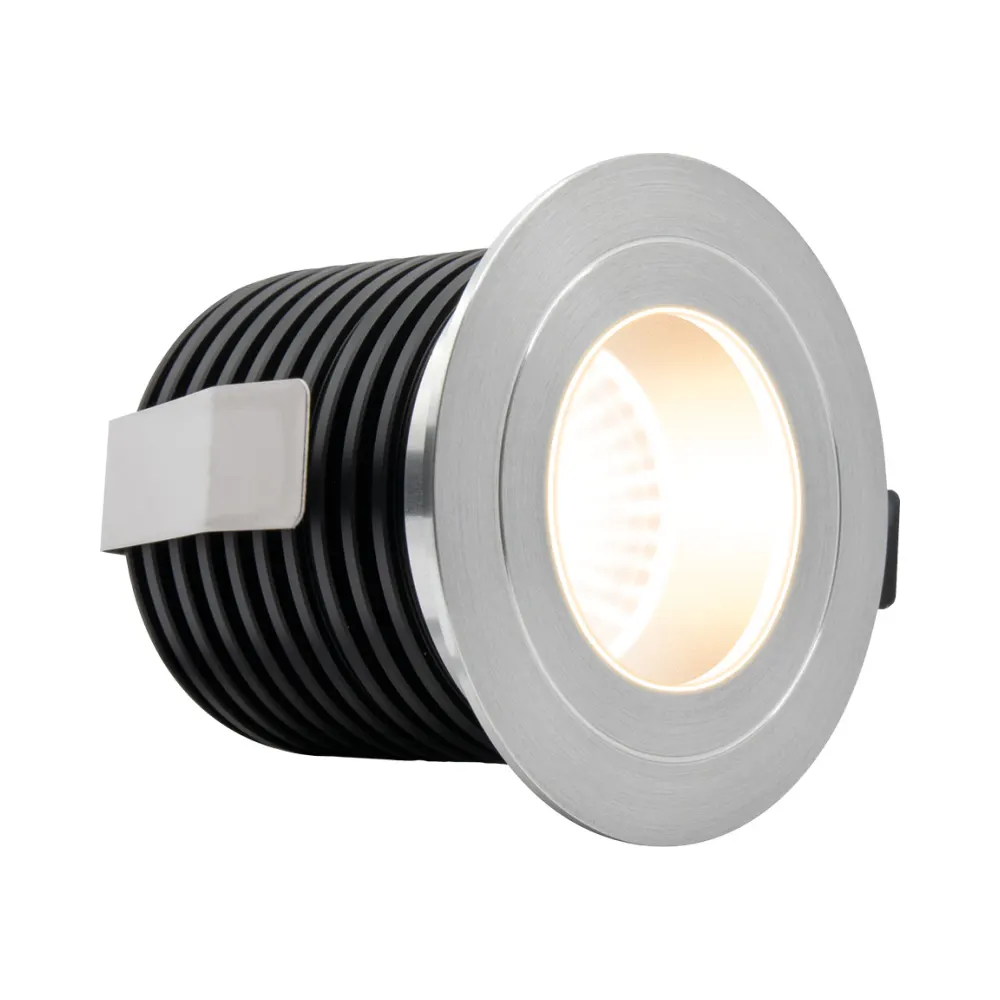

The ALL LED Noble 7 AGL060AL/40 4000K Ground Light is a 7W in-ground uplight with a 60mm cut-out, delivering crisp neutral white illumination. This model becomes dimmable when paired with a suitable 350mA constant current driver, making it ideal for pathways, patios, façades and landscaped outdoor areas.
Overview – ALL LED Noble 7 AGL060AL/40 4000K Ground Light
- Durable aluminium body with ultra-slim bezel
- Low-glare optical design using an internal black baffle
- Precision-engineered diamond-cut lens
- Drive-over rated up to 2 metric tonnes (with AGL/MS060 sleeve)
- IP65 ingress protection for outdoor installation
- 50,000 hour rated lifetime with 3-year guarantee
- Accreditations: CE, RoHS, ERP, Class III
Key Features of ALL LED Noble 7 AGL060AL/40 4000K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 7W COB LED providing efficient architectural illumination
- 60mm cut-out for compact recessed installation
- Neutral white 4000K colour temperature
- 30° beam angle for precise accent lighting
- Operating temperature: -20°C to +50°C
- Rated lifetime: 50,000 hours (L70)
Typical Applications
- Façade and wall uplighting
- Path and patio markers
- Driveways and parking areas (with AGL/MS060 sleeve)
- Tree, pillar and feature accent lighting
- Steps, terraces and garden borders
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – compatible with leading/trailing edge dimmers.
- Ground Light Installation Accessories – sleeves, junction boxes, glands and exterior-rated cable.
For the full 2 metric tonne drive-over rating, install using the AGL/MS060 48mm mounting sleeve.
Related ALL LED Noble Ground Lights
About ALL LED
ALL LED manufacture performance-grade LED lighting for professional, commercial and residential projects. Learn more at allledgroup.com.
