Description
Dimmable 350mA Ground Uplight – 48mm Cut-Out
ALL LED AGL045AL/30

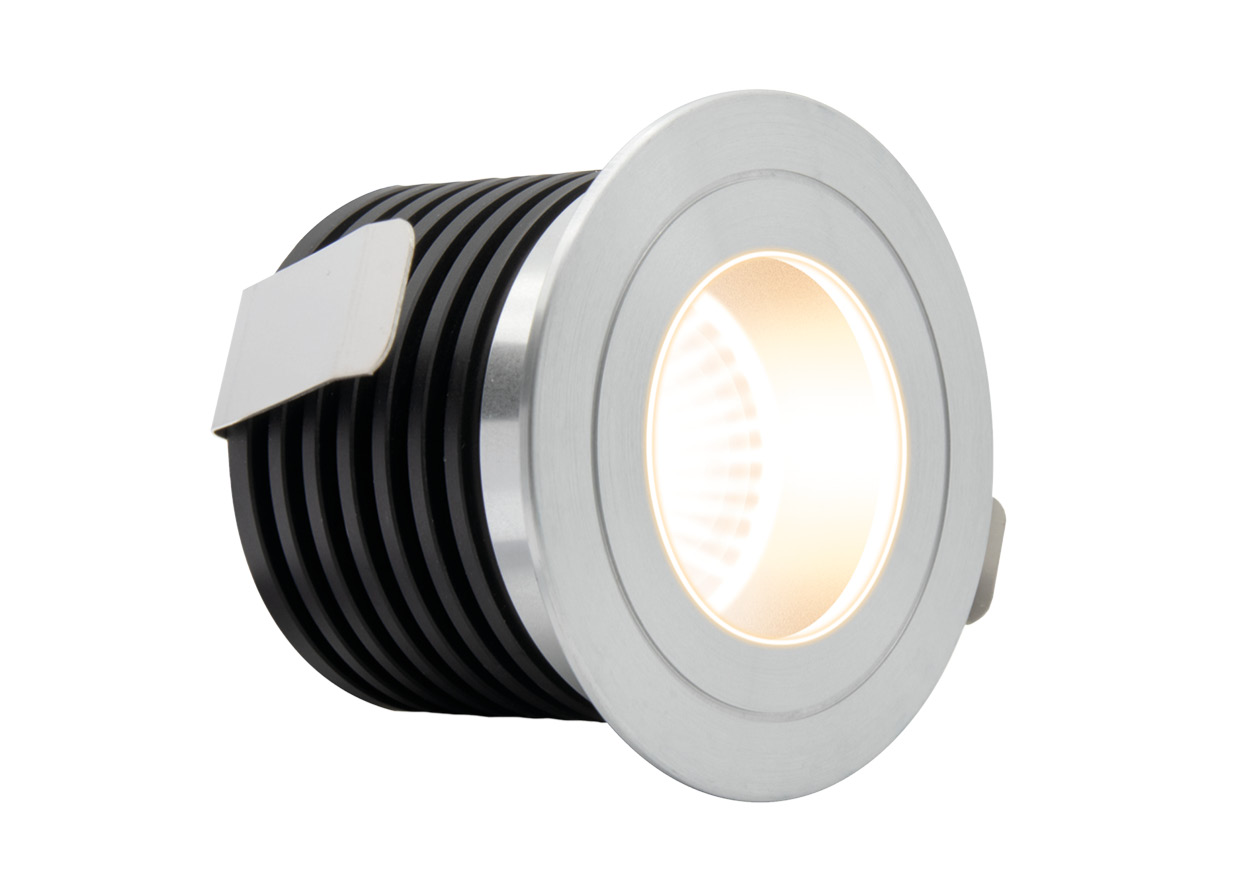

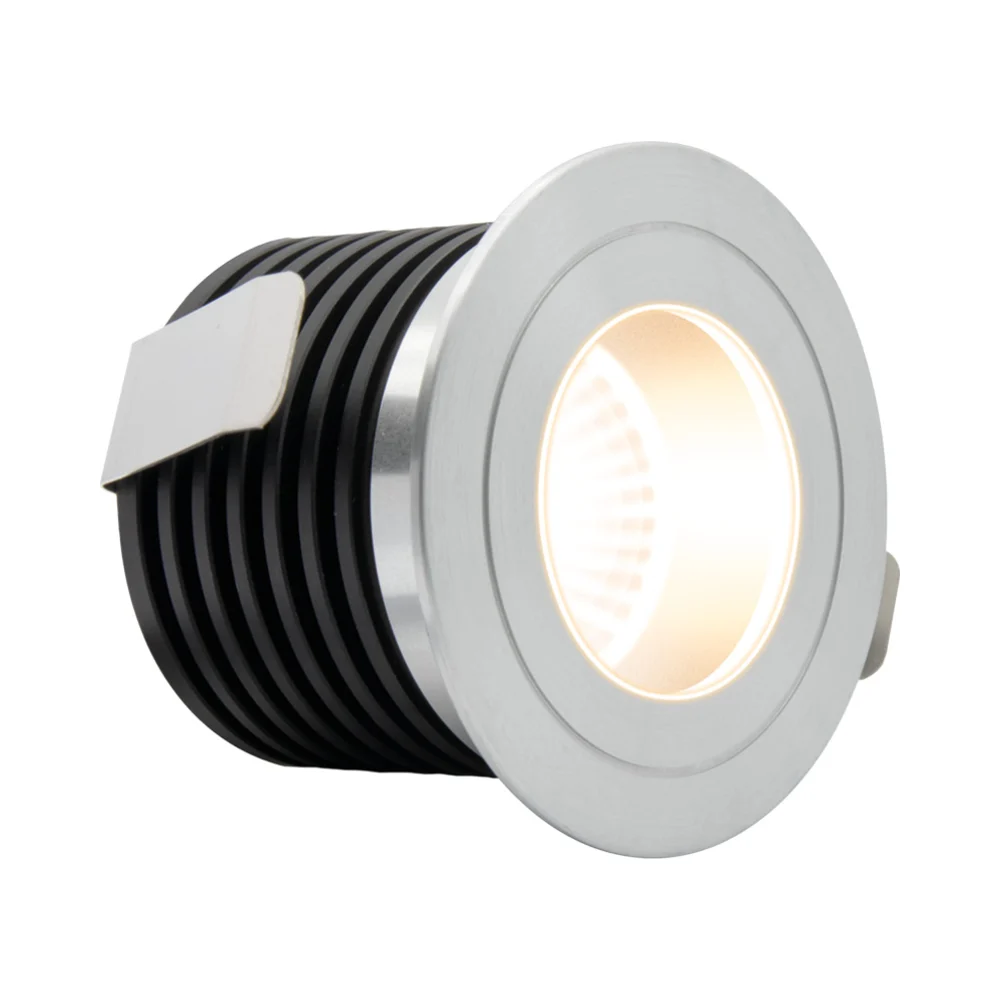

The ALL LED Noble 3 AGL045AL/30 3000K Ground Light is a compact 3W in-ground uplight with a 48mm cut-out, delivering warm white illumination. This model becomes dimmable when paired with a suitable 350mA constant current driver, ideal for steps, paths, patios and architectural landscape lighting.
Overview – ALL LED Noble 3 AGL045AL/30 3000K Ground Light
- Durable aluminium body with ultra-slim bezel
- Low-glare optical design using an internal black baffle
- Precision-engineered diamond-cut lens
- Drive-over rated up to 2 metric tonnes (with AGL/MS048 sleeve)
- IP65 ingress protection for outdoor installation
- 50,000 hour rated lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ERP, Class III
Key Features of ALL LED Noble 3 AGL045AL/30 3000K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 3W COB LED delivering warm white architectural lighting
- 48mm cut-out for compact recessed installation
- Warm white 3000K colour temperature
- 50° beam angle for broad feature illumination
- Operating temperature: -20°C to +50°C
- Rated lifetime: 50,000 hours (L70)
Typical Applications
- Warm façade and wall uplighting
- Path and patio markers
- Drive-over areas (with AGL/MS048 sleeve)
- Tree, pillar and feature illumination
- Steps, terraces and landscaped borders
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – compatible with leading/trailing edge dimmers.
- Ground Light Installation Accessories – sleeves, junction boxes, glands and exterior-rated cable.
For the full 2 metric tonne drive-over rating, install using the AGL/MS048 48mm mounting sleeve.
