Description
Dimmable 350mA Ground Uplight – 60mm Cut-Out
ALL LED AGL060SS/40

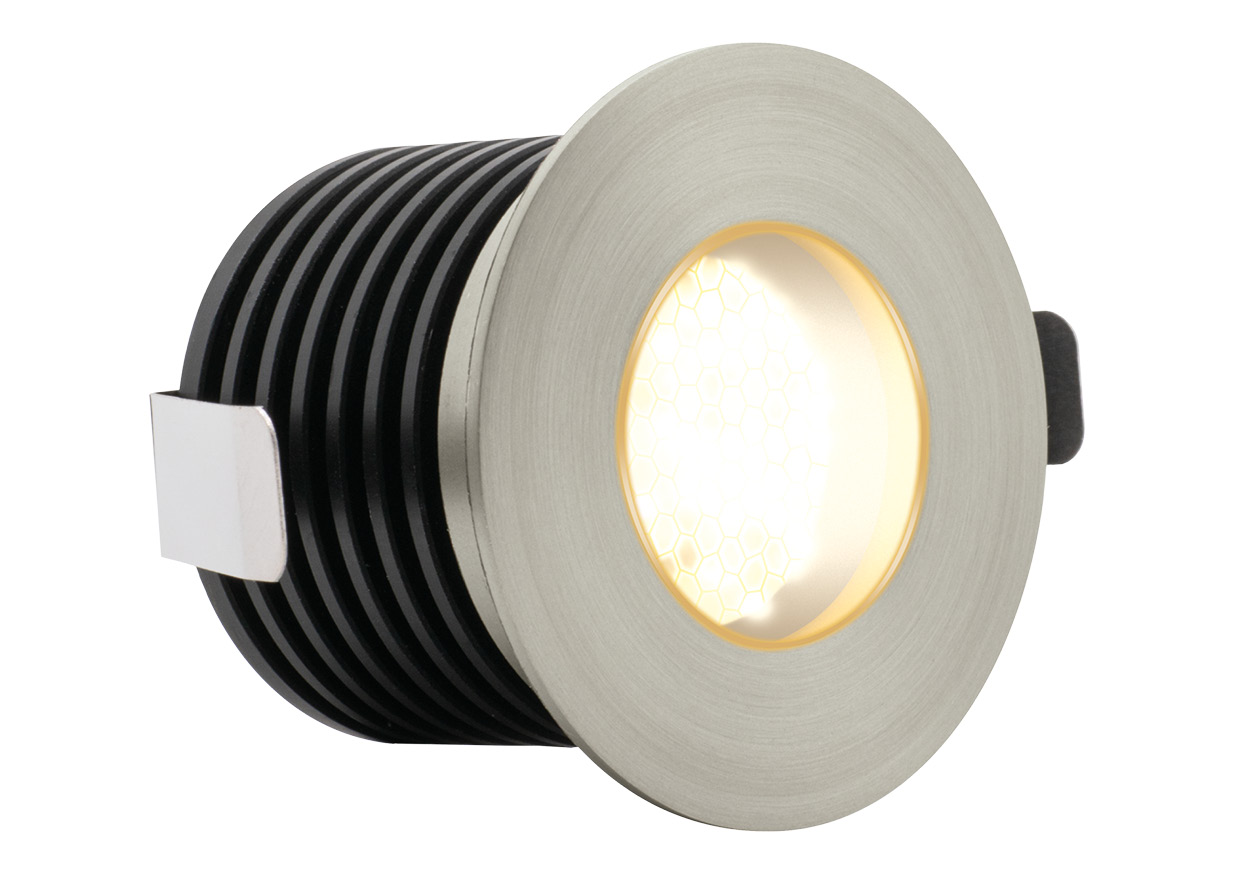

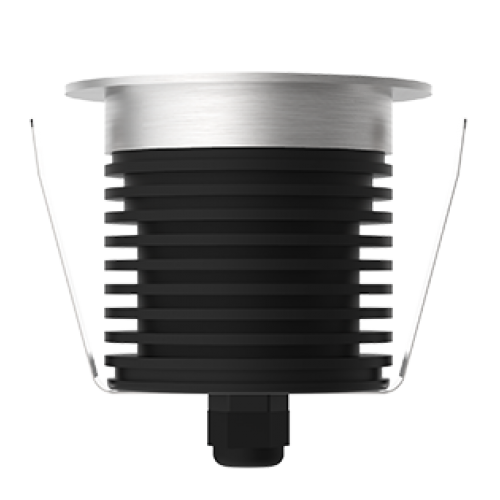

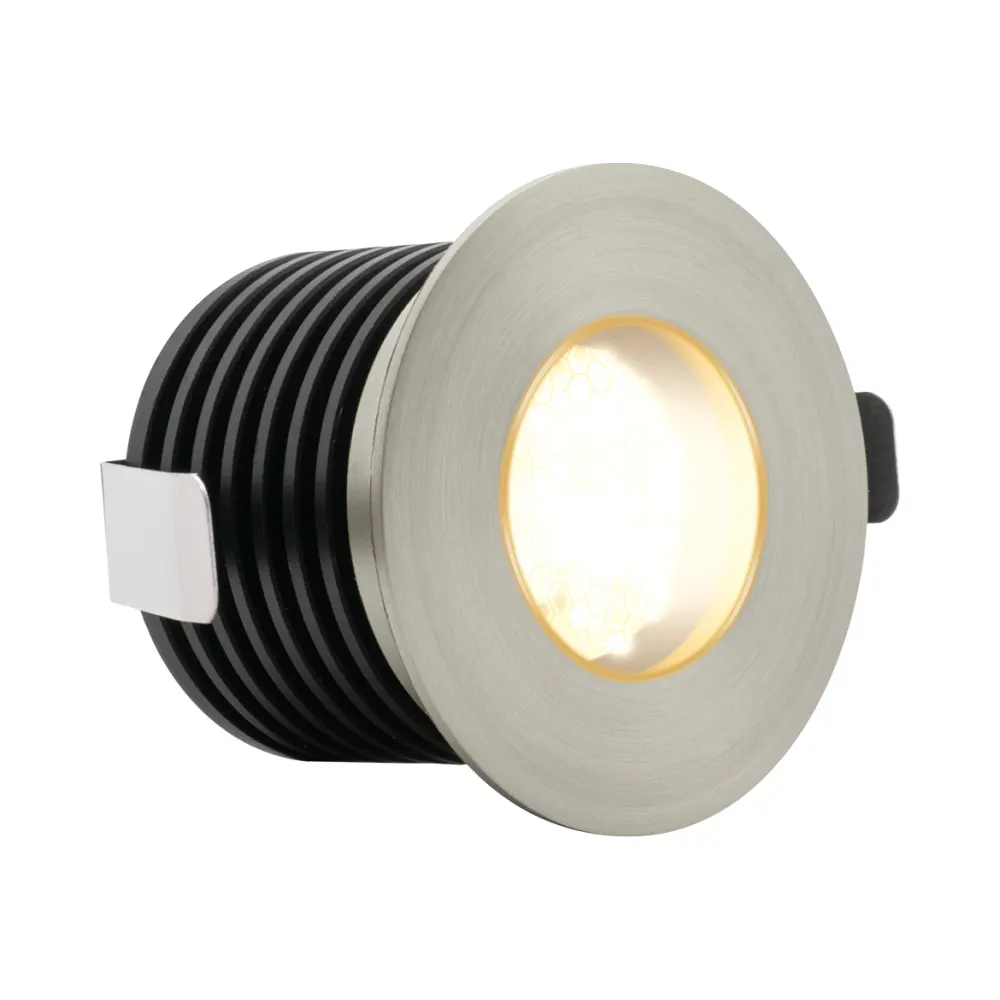

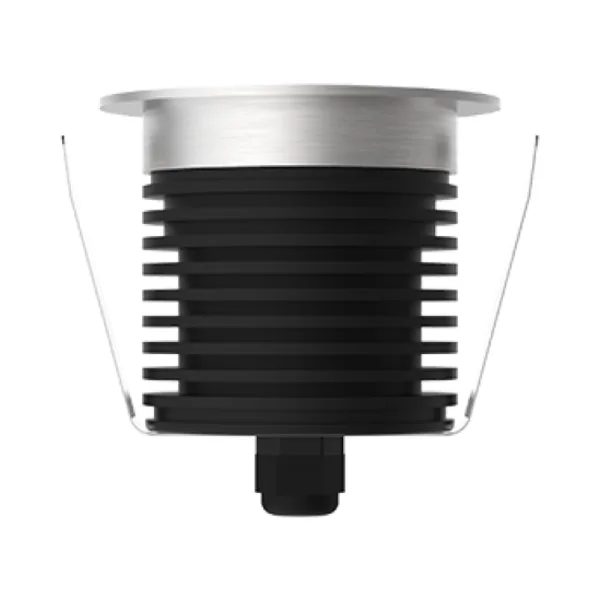

The ALL LED Marine 7 AGL060SS/40 4000K Ground Light is a high-performance 7W in-ground uplight engineered from 316L marine-grade stainless steel. Featuring an anti-glare honeycomb baffle, narrow 15° beam and IP67 ingress protection, it delivers precise, corrosion-resistant illumination for coastal, architectural and outdoor applications. This model becomes dimmable when paired with a suitable 350mA constant current driver.
Overview – ALL LED Marine 7 AGL060SS/40 4000K Ground Light
- 316L marine-grade stainless steel bezel and body
- Honeycomb anti-glare system for controlled light output
- Internal baffle to reduce glare and improve visual comfort
- IP67 ingress protection for harsh outdoor environments
- Drive-over rated up to 2 metric tonnes
- Precision 15° narrow beam for feature accenting
- 50,000 hour lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ErP, Class III
Key Features of ALL LED Marine 7 AGL060SS/40 4000K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 7W LED with high CRI <92 for accurate colour rendering
- 60mm cut-out for secure recessed installation
- Neutral white 4000K colour temperature
- 15° narrow beam with peak intensity of 868 cd
- Instant start with <100,000 switching cycles
- Operating temperature: -20°C to +50°C
- Lifetime rated to LM70: 50,000 hours
Typical Applications
- Coastal properties and marine environments
- Premium landscaping and architectural accent lighting
- Driveways, paths and patios (2T drive-over rated)
- Feature uplighting for walls, pillars and sculptures
- High-end commercial and residential exteriors
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – for smooth dimming performance.
- Ground Light Installation Accessories – sleeves, junction boxes, glands and exterior-rated cable.
For full 2 metric tonne drive-over performance, install using the appropriate mounting sleeve.
