Description
Dimmable 350mA Ground Uplight – 48mm Cut-Out
ALL LED AGL045SS/40

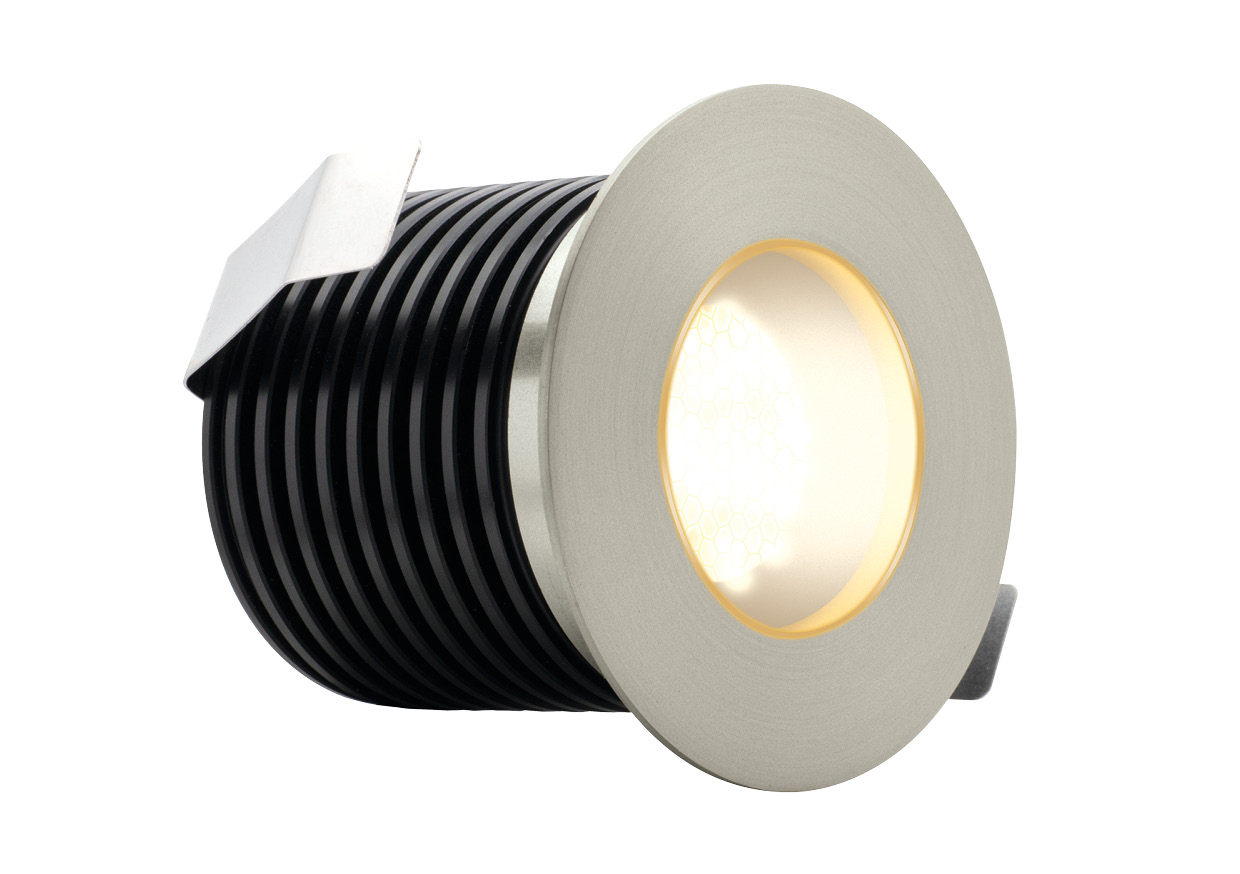

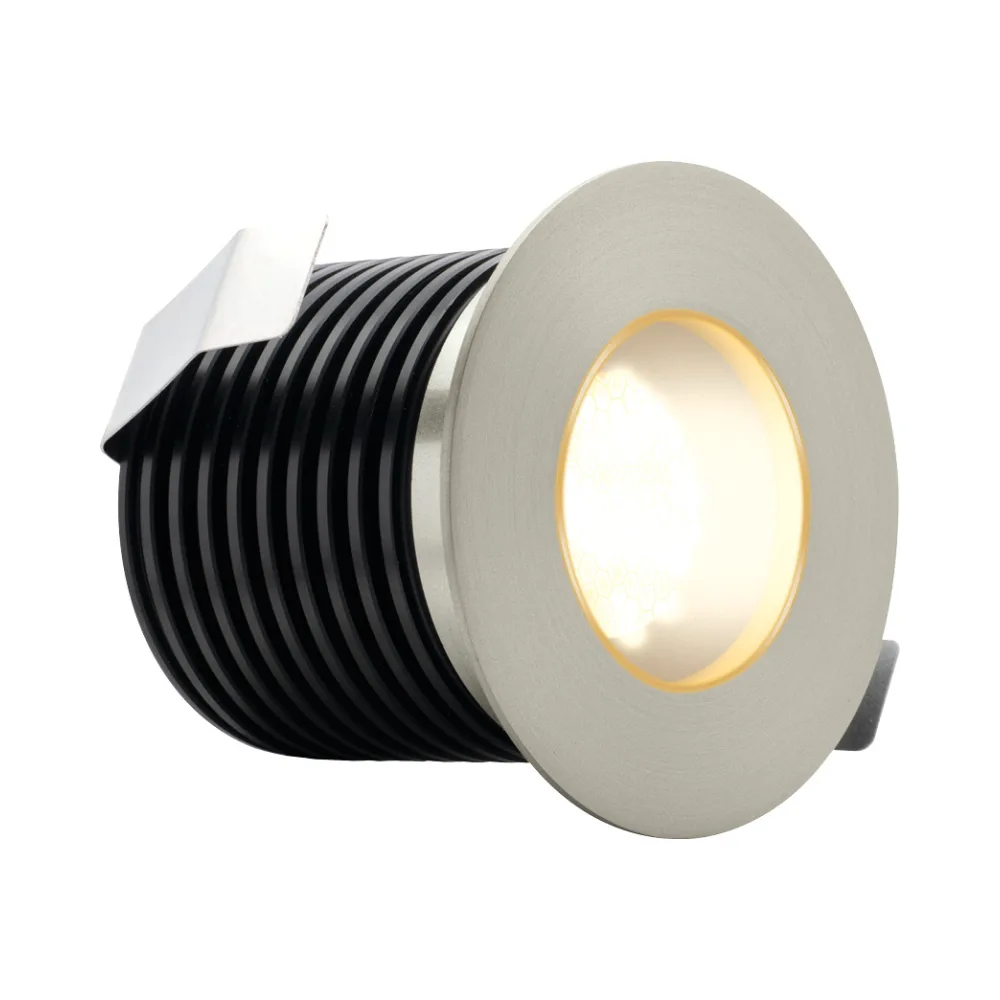

The ALL LED Marine 3 AGL045SS/40 4000K Ground Light is a 3W in-ground uplight engineered from 316L marine-grade stainless steel, offering exceptional corrosion resistance for coastal and exposed environments. Featuring a honeycomb anti-glare baffle, 15° narrow beam and IP67 protection, it delivers crisp, focused illumination for architectural and landscape applications. When used with a suitable 350mA constant current driver, this model becomes fully dimmable.
Overview – ALL LED Marine 3 AGL045SS/40 4000K Ground Light
- 316L marine-grade stainless steel construction
- Honeycomb anti-glare design for controlled, low-glare output
- Internal baffle reduces light spill and improves visual comfort
- IP67 rating for high-resilience outdoor performance
- Drive-over rated up to 2 metric tonnes
- Neutral white 4000K colour output
- 50,000 hour rated lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ErP, Class III
Key Features of ALL LED Marine 3 AGL045SS/40 4000K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 3W LED with high CRI <92 for accurate colour rendering
- 48mm cut-out for compact recessed installation
- Neutral white 4000K colour temperature
- 15° narrow beam with 453 cd peak intensity
- Instant full light with <100,000 switching cycles
- Operating temperature: -20°C to +50°C
- Lifetime rated to LM70: 50,000 hours
Typical Applications
- Coastal installations and marine environments
- Driveways, paths and patios (2T drive-over rated)
- Architectural uplighting for walls, pillars and features
- Premium landscaping and garden lighting
- Commercial exterior walkways and public areas
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – compatible with leading/trailing edge dimmers.
- Ground Light Installation Accessories – mounting sleeves, junction boxes, glands and exterior cable.
To achieve the full 2 tonne drive-over rating, install using the correct mounting sleeve.
Related ALL LED Marine Ground Lights
About ALL LED
ALL LED manufacture high-performance LED solutions for coastal, architectural and commercial outdoor environments. Learn more at allledgroup.com.
