Dimmable 350mA Ground Uplight – 48mm Cut-Out
ALL LED AGL045SS/30

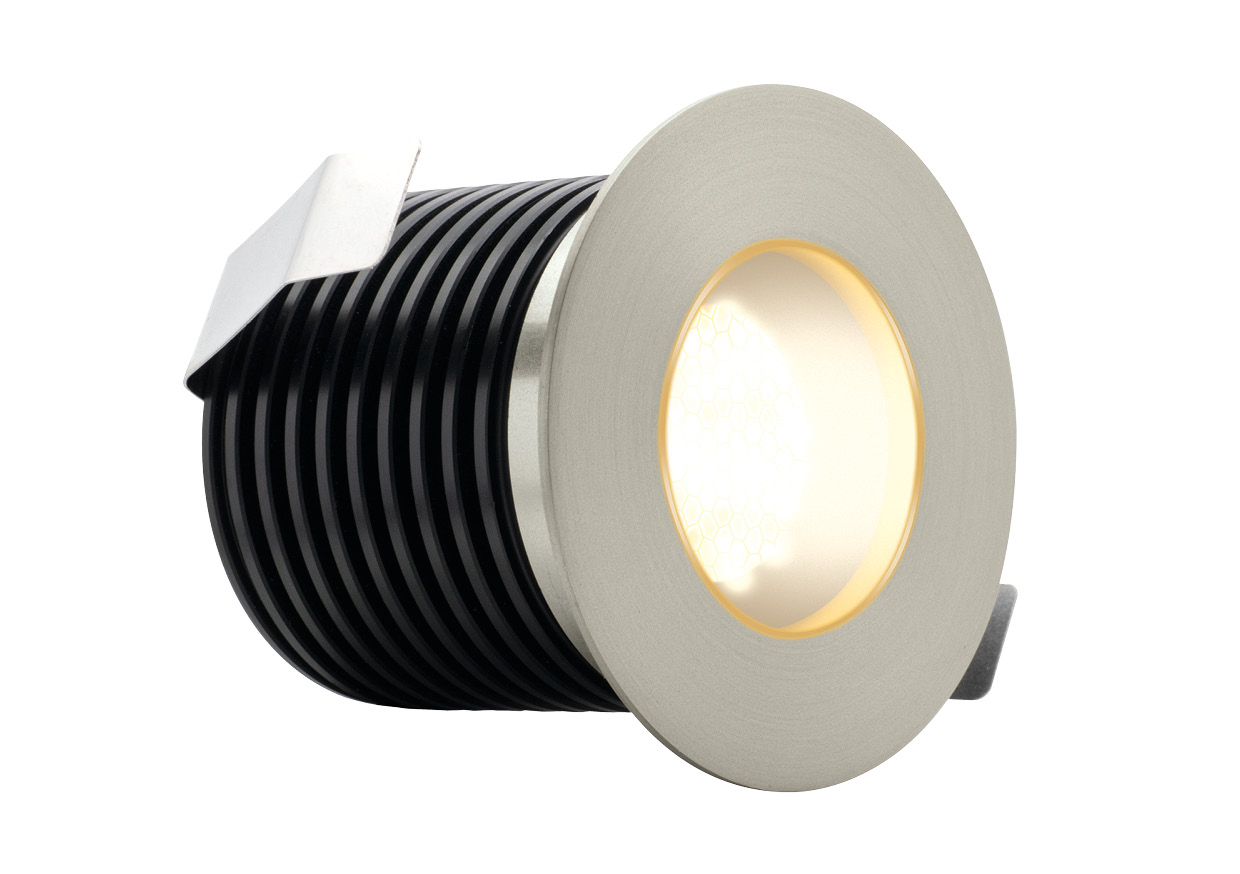

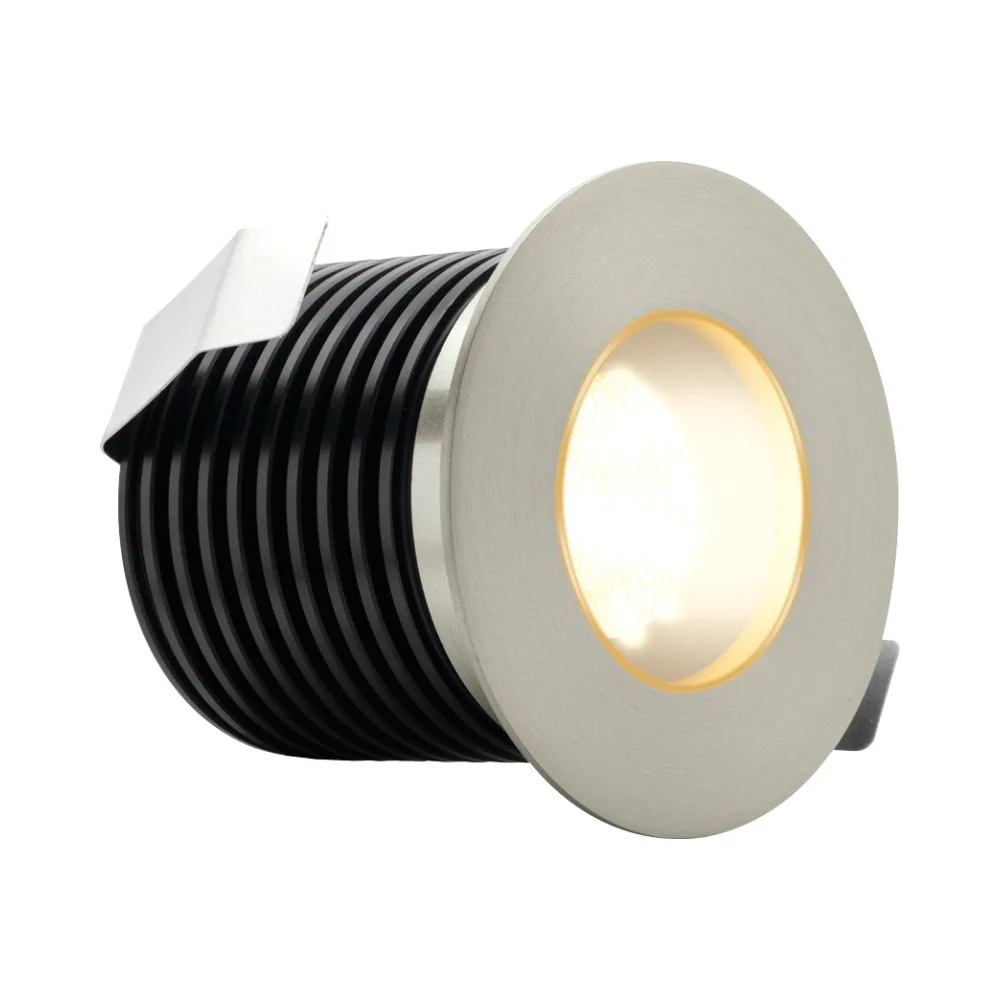

The ALL LED Marine 3 AGL045SS/30 3000K Ground Light is a compact 3W in-ground uplight engineered using 316L marine-grade stainless steel. Designed for harsh coastal and exposed environments, it offers high corrosion resistance, a honeycomb anti-glare baffle and a focused 15° narrow beam. With IP67 protection and a 2-tonne drive-over rating, this fitting provides warm, glare-controlled illumination for premium outdoor applications. When paired with a suitable 350mA constant current driver, it becomes fully dimmable.
Overview – ALL LED Marine 3 AGL045SS/30 3000K Ground Light
- 316L marine-grade stainless steel bezel and body
- Honeycomb anti-glare design for controlled, comfortable illumination
- Internal baffle minimises glare and unwanted spill
- IP67 ingress protection for high-exposure outdoor environments
- Drive-over rated up to 2 metric tonnes
- Warm white 3000K colour temperature
- 50,000 hour lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ErP, Class III
Key Features of ALL LED Marine 3 AGL045SS/30 3000K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 3W LED with high CRI <92 for natural colour rendering
- 48mm cut-out for compact recessed installation
- Warm white 3000K colour output
- 15° narrow beam with peak intensity of 426 cd
- Instant full-output performance with <100,000 switching cycles
- Operating temperature: -20°C to +50°C
- Lifetime rated to LM70: 50,000 hours
Typical Applications
- Coastal properties and marine environments
- Driveways, patios and paths (2T drive-over rated)
- Architectural accent lighting for walls, pillars and landscape features
- Premium garden and exterior lighting projects
- Commercial walkways and public outdoor areas
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – compatible with leading/trailing edge dimmers.
- Ground Light Installation Accessories – sleeves, junction boxes, glands and outdoor-rated cable.
To achieve the full 2-tonne drive-over rating, install using the appropriate mounting sleeve.
