Description
Dimmable 350mA Ground Uplight – 48mm Cut-Out
ALL LED AGL045SS/27

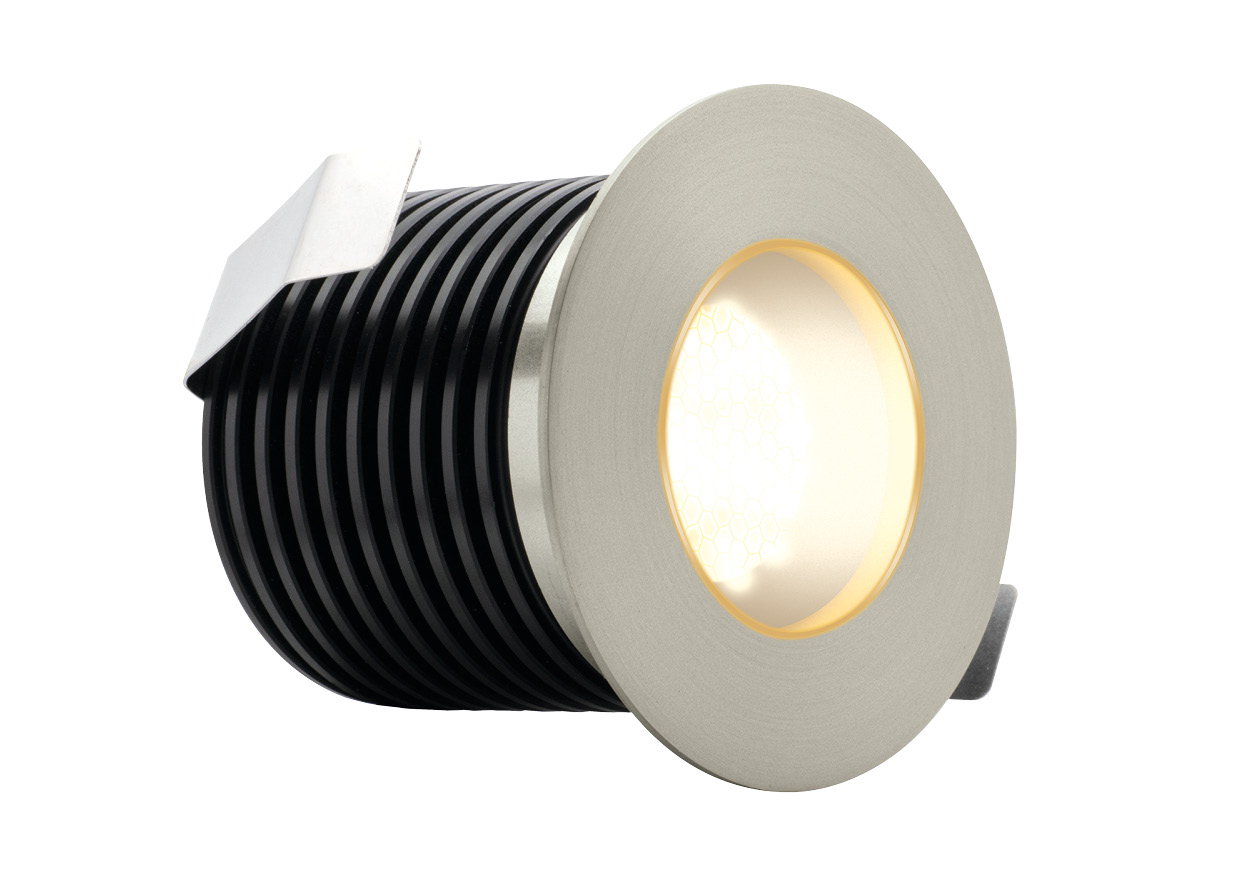

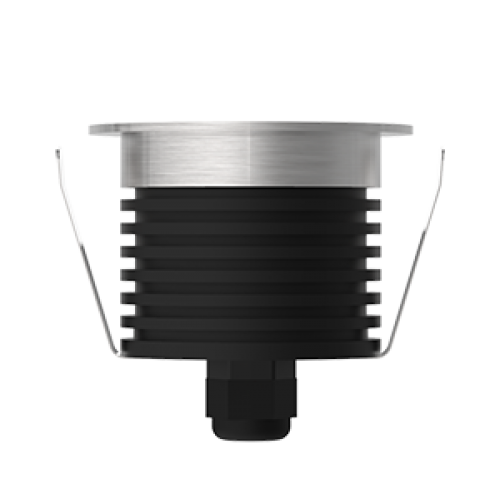

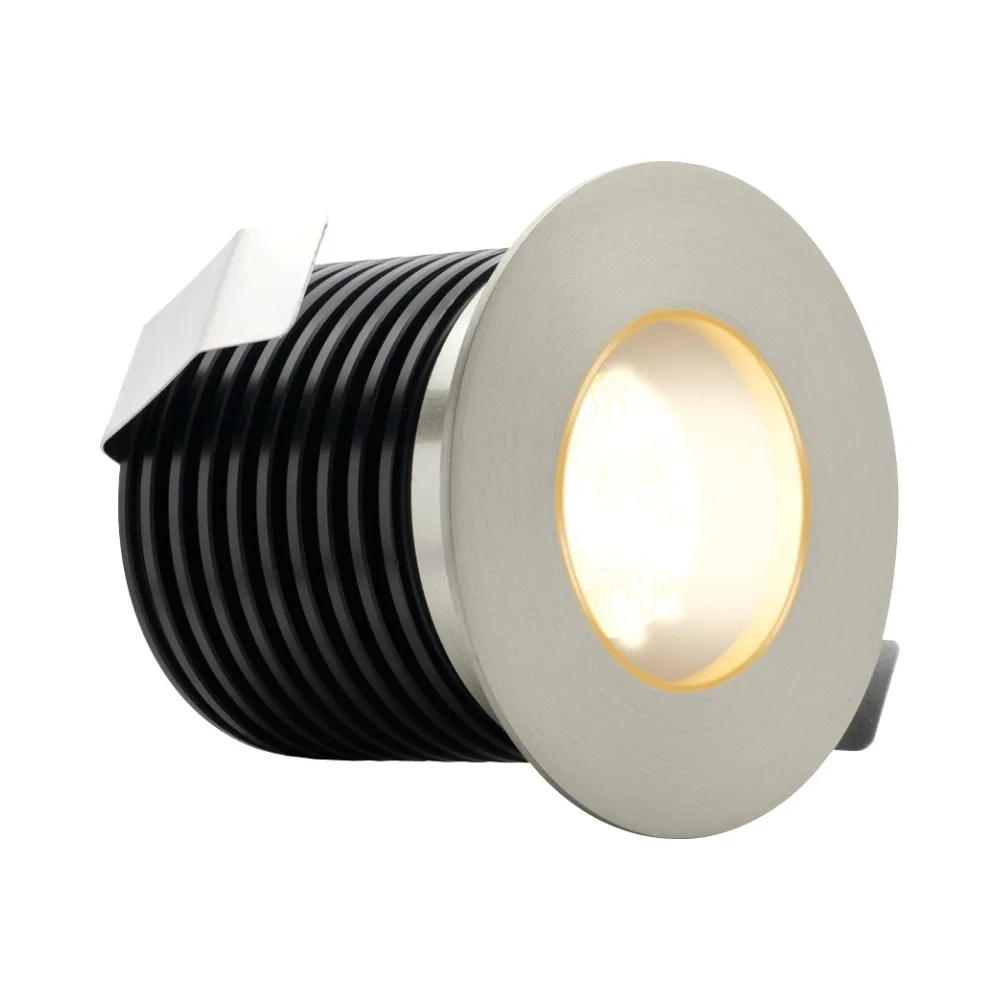

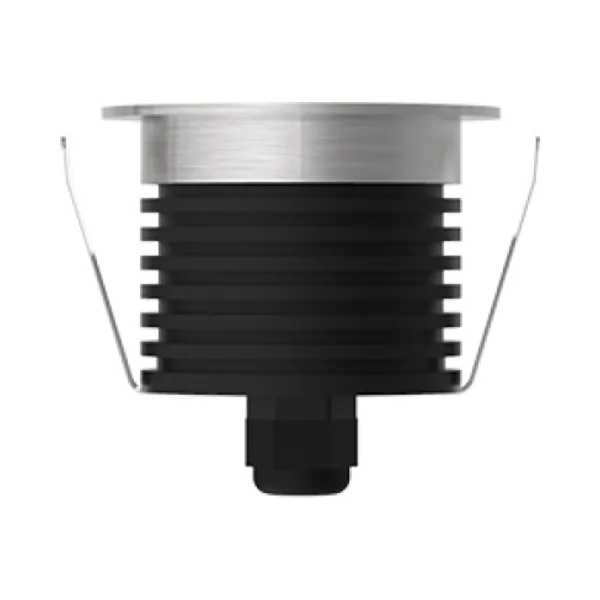

The ALL LED Marine 3 AGL045SS/27 2700K Ground Light is a compact 3W in-ground uplight built from 316L marine-grade stainless steel for superior corrosion resistance in coastal and high-exposure environments. Its honeycomb anti-glare baffle, 15° narrow beam and IP67 rating make it ideal for warm, focused outdoor illumination. When combined with a suitable 350mA constant current driver, this fitting becomes fully dimmable.
Overview – ALL LED Marine 3 AGL045SS/27 2700K Ground Light
- 316L marine-grade stainless steel bezel and body

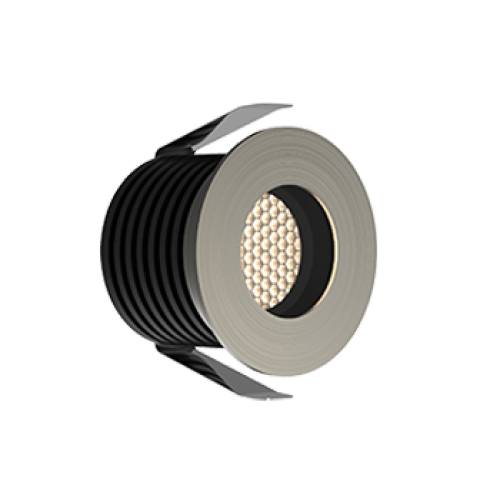

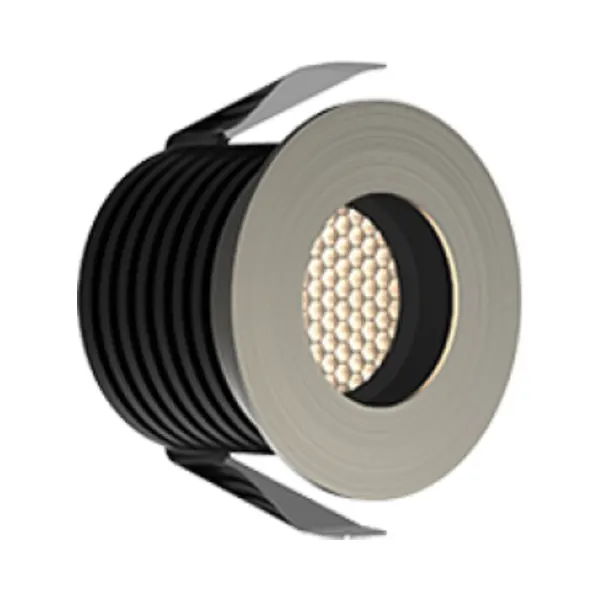

- Honeycomb anti-glare design for controlled, low-glare illumination
- Internal baffle to minimise glare and unwanted spill
- IP67 ingress protection for outdoor and coastal environments
- Drive-over rated up to 2 metric tonnes
- Warm white 2700K colour temperature
- 50,000 hour lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ErP, Class III
Key Features of ALL LED Marine 3 AGL045SS/27 2700K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 3W LED with high CRI <92 for natural warm colour rendering
- 48mm cut-out for compact recessed fitting
- Warm white 2700K light output
- 15° narrow beam with 400 cd peak intensity
- Instant full brightness with <100,000 switching cycles
- Operating temperature: -20°C to +50°C
- Lifetime rated to LM70: 50,000 hours
Typical Applications
- Coastal and marine environments
- Driveways, patios and pathways (2T drive-over rated)
- Architectural feature uplighting
- Premium garden and landscape lighting
- Commercial exterior walkways and public spaces
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – compatible with leading/trailing edge dimmers.
- Ground Light Installation Accessories – sleeves, junction boxes, glands and outdoor-rated cable.
To achieve the full 2-tonne drive-over rating, install using the appropriate mounting sleeve.
