Description
Dimmable 350mA Ground Uplight – 48mm Cut-Out
ALL LED AGL032SS/40

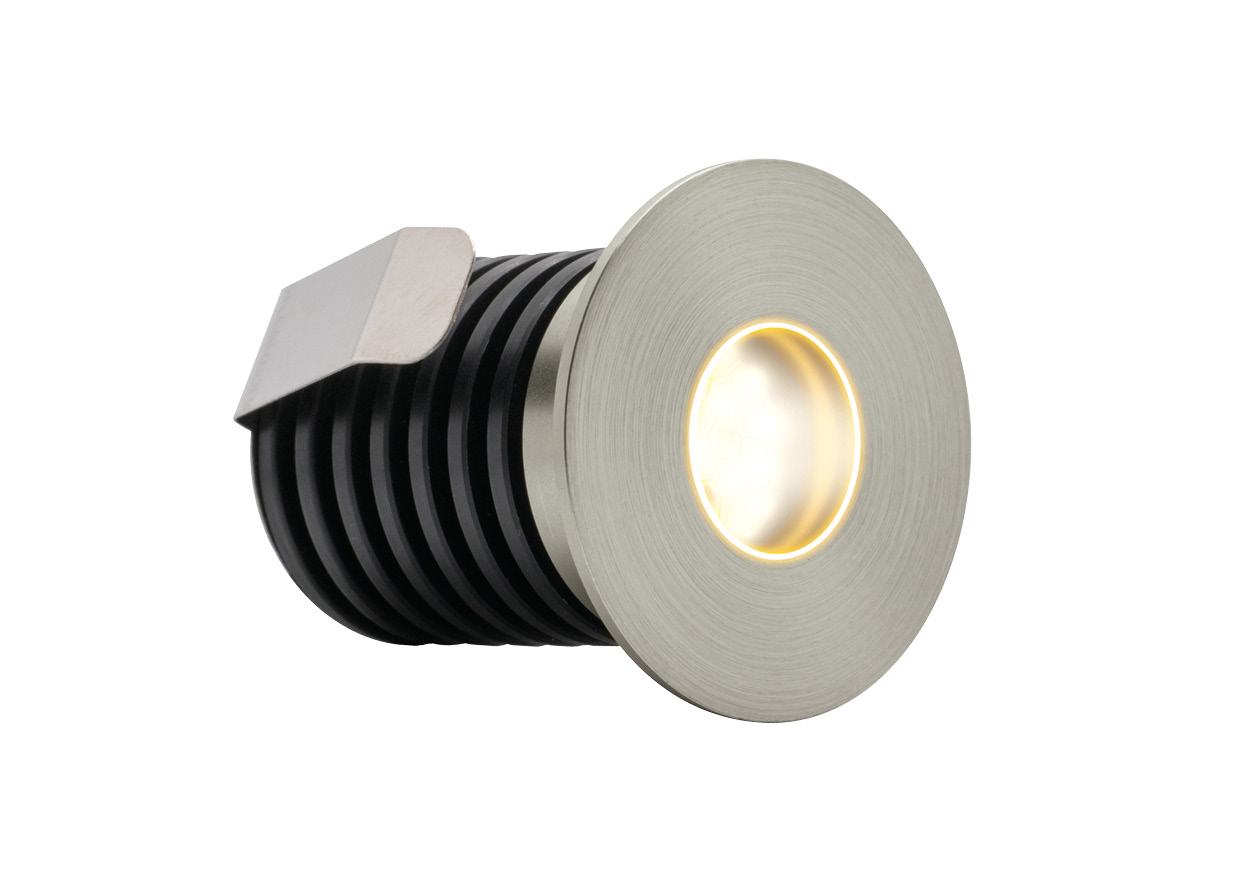

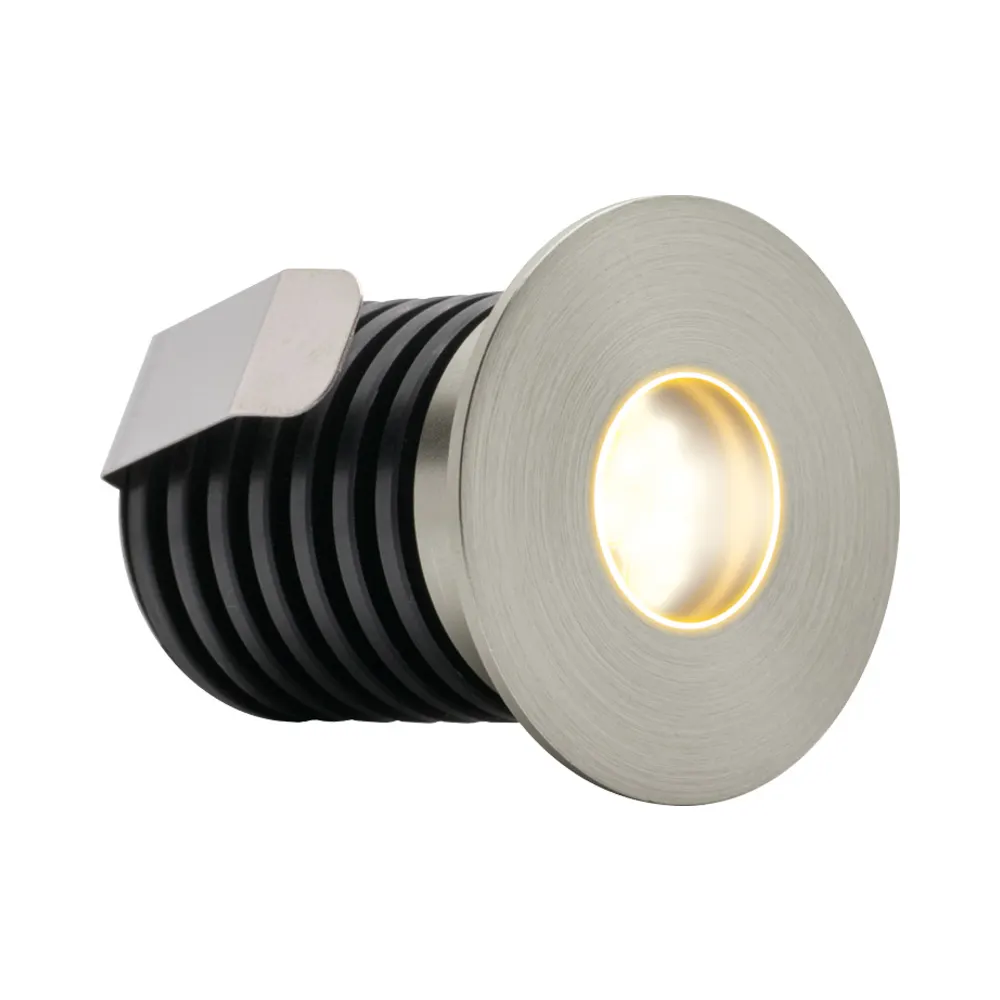

The ALL LED Marine 1 AGL032SS/40 4000K Ground Light is a compact 1W in-ground uplight engineered from 316L marine-grade stainless steel for exceptional corrosion resistance in coastal installations. Featuring a honeycomb anti-glare baffle, crisp 4000K output and IP67 protection, it delivers highly controlled, focused light for outdoor architectural and landscape projects. When paired with a suitable 350mA constant current driver, the Marine 1 becomes fully dimmable.
Overview – ALL LED Marine 1 AGL032SS/40 4000K Ground Light
- 316L marine-grade stainless steel bezel and body
- Honeycomb anti-glare system for precise, low-glare illumination
- Internal baffle for improved optical control
- IP67 ingress protection for high-exposure outdoor environments
- Drive-over rated up to 2 metric tonnes
- Neutral white 4000K colour temperature
- 50,000 hour rated lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ErP, Class III
Key Features of ALL LED Marine 1 AGL032SS/40 4000K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 1W LED with high CRI <85 for crisp, clean light
- 48mm cut-out for compact recessed installations
- Neutral white 4000K light output
- 15° narrow beam with 341 cd peak intensity
- Instant full light with <100,000 switching cycles
- Operating temperature: -20°C to +50°C
- Lifetime rated to LM70: 50,000 hours
Typical Applications
- Coastal properties and marine environments
- Path and step highlighting
- Low-level architectural uplighting
- Garden borders and landscape accents
- Commercial walkways and exterior features
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – smooth dimming compatibility.
- Ground Light Installation Accessories – mounting sleeves, junction boxes, glands and outdoor cable.
For installations requiring vehicle load rating, use the correct mounting sleeve to maintain the 2-tonne drive-over capability.
Related ALL LED Marine Ground Lights
About ALL LED
ALL LED manufacture performance-grade LED lighting for coastal, architectural and landscape applications. Learn more at allledgroup.com.
