Description
Dimmable 350mA Ground Uplight – 48mm Cut-Out
ALL LED AGL032SS/30

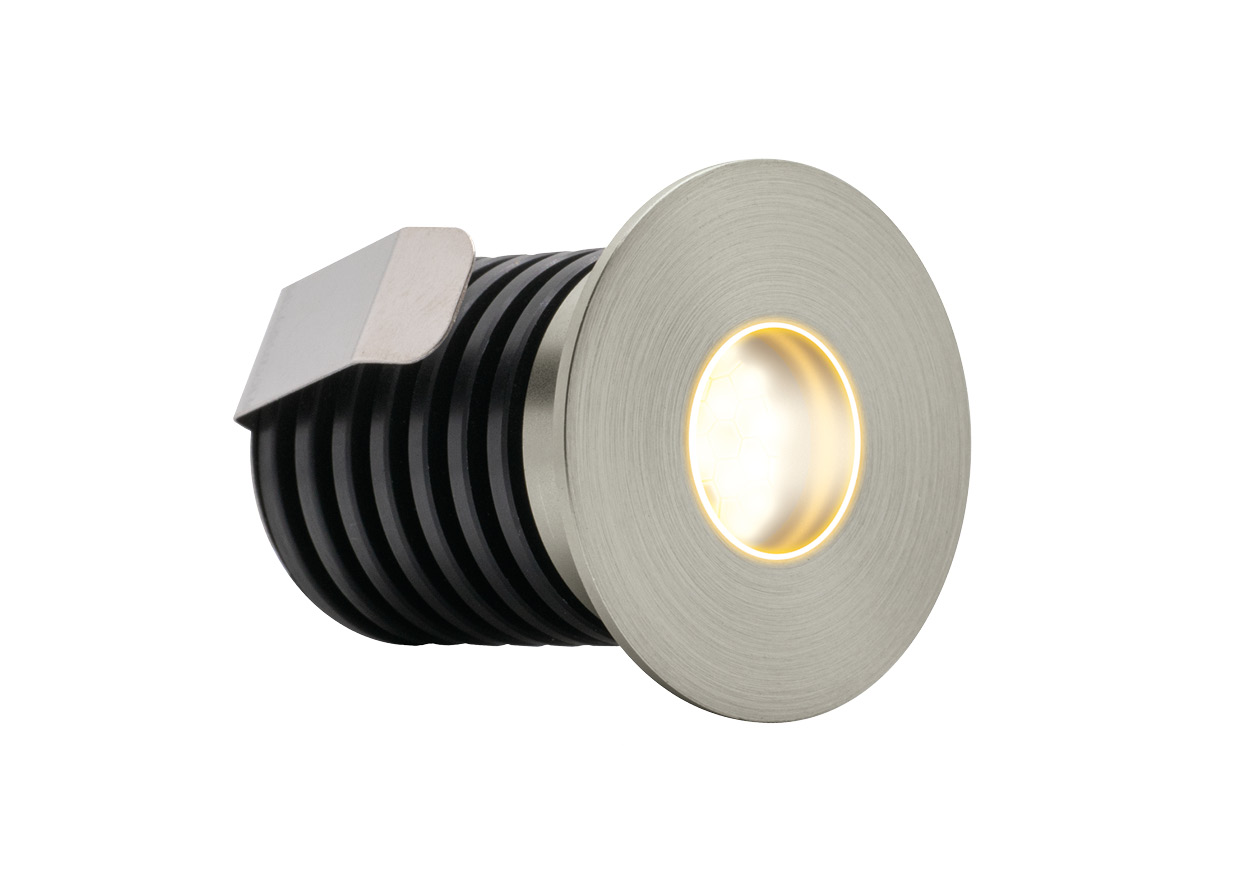

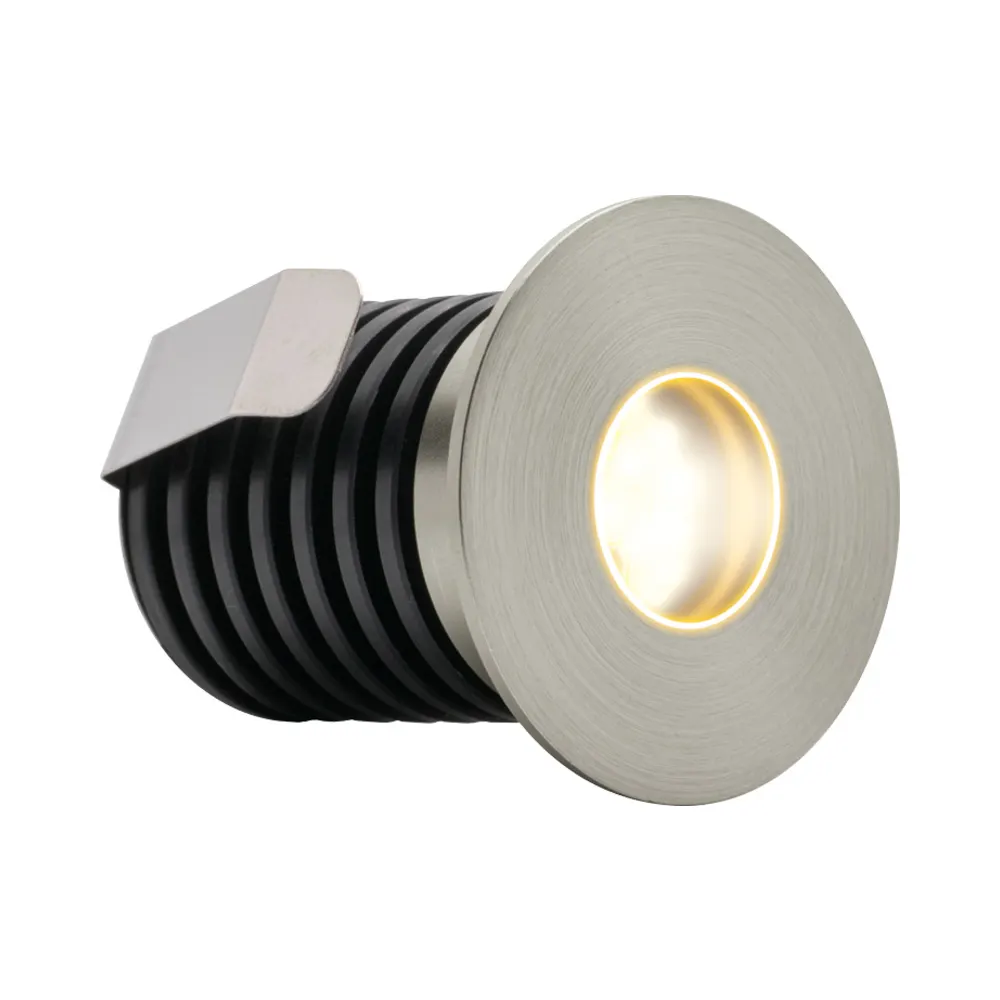

The ALL LED Marine 1 AGL032SS/30 3000K Ground Light is a compact 1W in-ground uplight built from 316L marine-grade stainless steel, offering excellent corrosion resistance for coastal and exposed environments. With a honeycomb anti-glare baffle, 15° narrow beam and IP67 protection, it provides warm, precise illumination for architectural and landscape lighting. When paired with a suitable 350mA constant current LED driver, this fitting becomes fully dimmable.
Overview – ALL LED Marine 1 AGL032SS/30 3000K Ground Light
- 316L marine-grade stainless steel bezel and body
- Honeycomb anti-glare system for controlled, low-glare output
- Internal baffle minimises spill light and enhances visual comfort
- IP67 ingress protection for outdoor and coastal conditions
- Drive-over rated up to 2 metric tonnes
- Warm white 3000K colour temperature
- 50,000-hour lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ErP, Class III
Key Features of ALL LED Marine 1 AGL032SS/30 3000K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 1W LED with high CRI <85 for natural warm illumination
- 48mm cut-out for compact recessed installation
- Warm white 3000K colour output
- 15° narrow beam with peak intensity of 312 cd
- Instant full brightness with <100,000 switching cycles
- Operating temperature: -20°C to +50°C
- Lifetime rated to LM70: 50,000 hours
Typical Applications
- Coastal properties and marine environments
- Pathway and step marker lighting
- Low-level architectural uplighting
- Gardens, borders and landscape accents
- Commercial exterior walkways and features
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – smooth dimming performance.
- Ground Light Installation Accessories – sleeves, junction boxes, glands and exterior-rated cable.
To maintain the 2-tonne drive-over rating, install using the appropriate mounting sleeve.
