Description
Dimmable 350mA Ground Uplight – 48mm Cut-Out
ALL LED AGL032SS/27

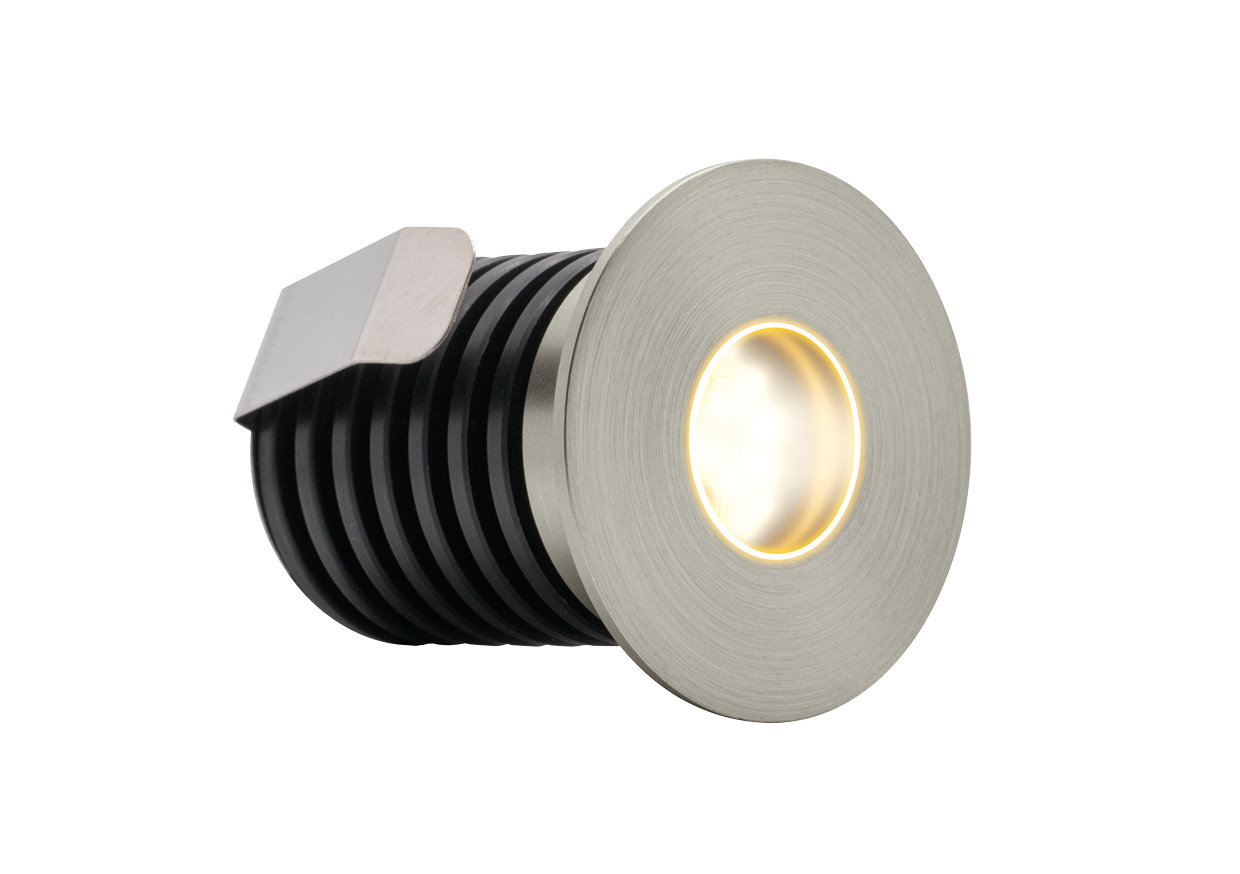

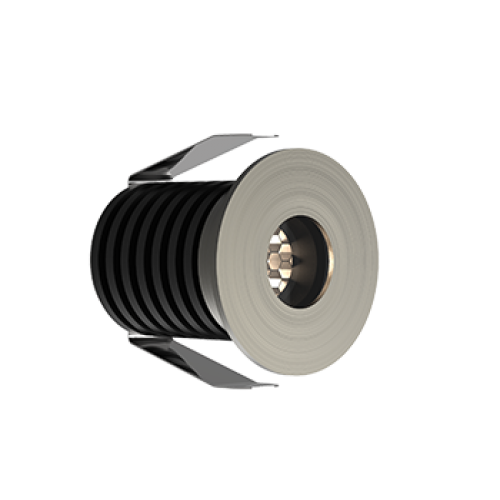

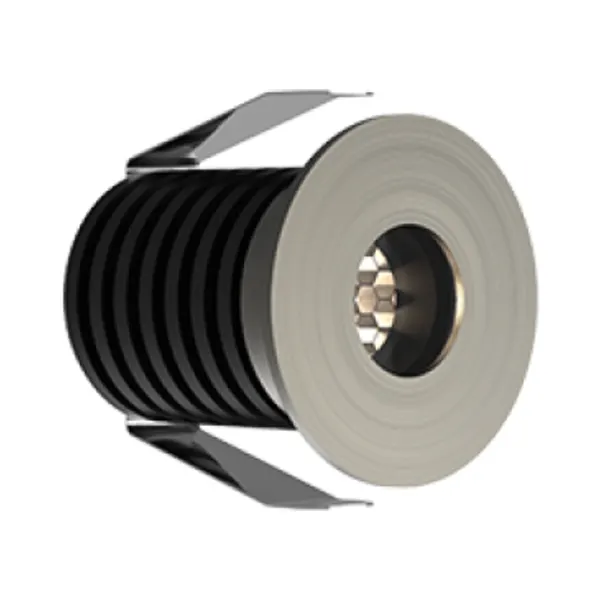

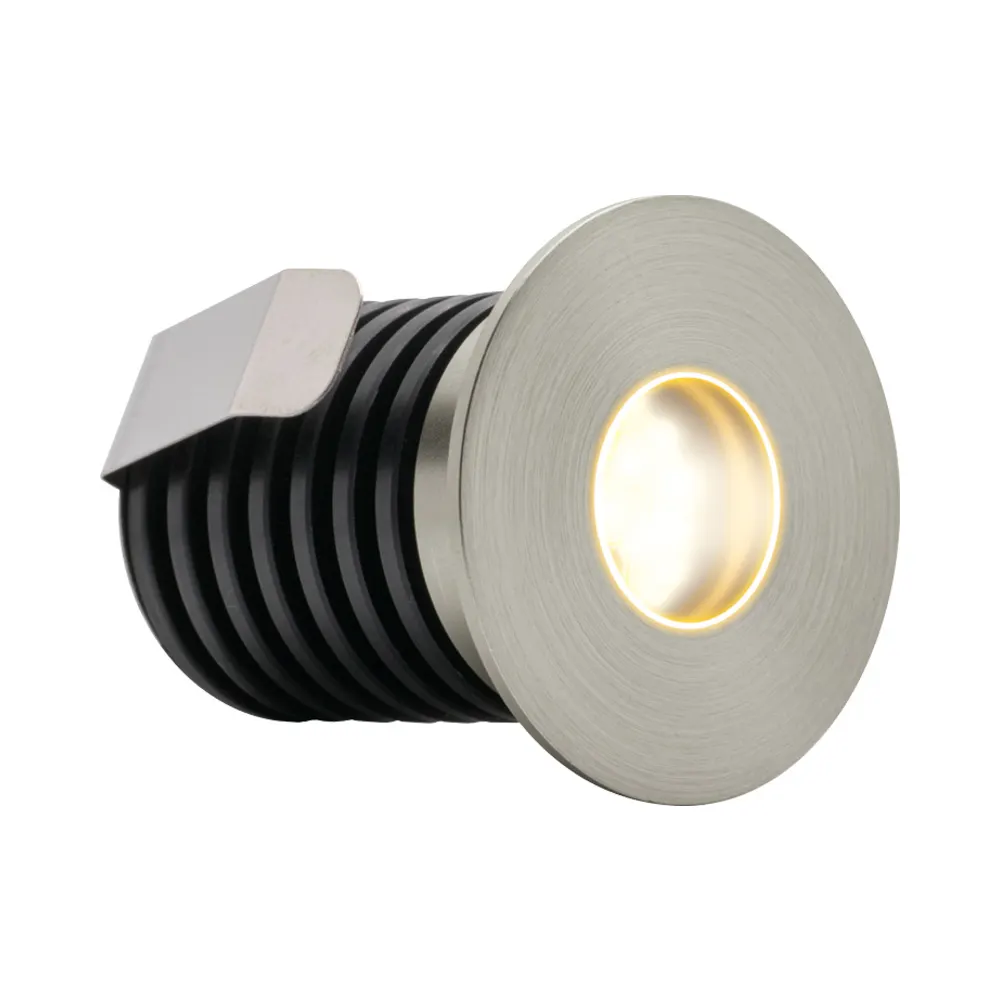

The ALL LED Marine 1 AGL032SS/27 2700K Ground Light is a compact 1W in-ground uplight built from 316L marine-grade stainless steel, engineered for superior corrosion resistance in coastal and exposed installations. Its honeycomb anti-glare baffle, 15° narrow beam and IP67 protection make it perfect for warm, low-glare architectural and landscape lighting. When paired with a suitable 350mA constant current LED driver, the Marine 1 becomes fully dimmable.
Overview – ALL LED Marine 1 AGL032SS/27 2700K Ground Light
- 316L marine-grade stainless steel bezel and body
- Honeycomb anti-glare system for smooth, controlled illumination
- Internal baffle minimises spill light and glare
- IP67 ingress protection for harsh outdoor conditions
- Drive-over rated up to 2 metric tonnes
- Warm white 2700K colour temperature
- 50,000-hour lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ErP, Class III
Key Features of ALL LED Marine 1 AGL032SS/27 2700K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 1W LED with high CRI <85 for warm, natural illumination
- 48mm cut-out for compact recessed installation
- Warm white 2700K light output
- 15° narrow beam with peak intensity of 278 cd
- Instant full light with <100,000 switching cycles
- Operating temperature: -20°C to +50°C
- Lifetime rated to LM70: 50,000 hours
Typical Applications
- Coastal properties and marine environments
- Pathway and step marker lighting
- Low-level architectural accent lighting
- Garden, border and landscape highlighting
- Commercial exterior walkways and public spaces
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – compatible with most leading/trailing edge dimmers.
- Ground Light Installation Accessories – sleeves, junction boxes, glands and exterior-rated cables.
To maintain the 2-tonne drive-over rating, use the correct mounting sleeve during installation.
