Description
Sleek & Rugged CCT-Selectable LED Bulkhead

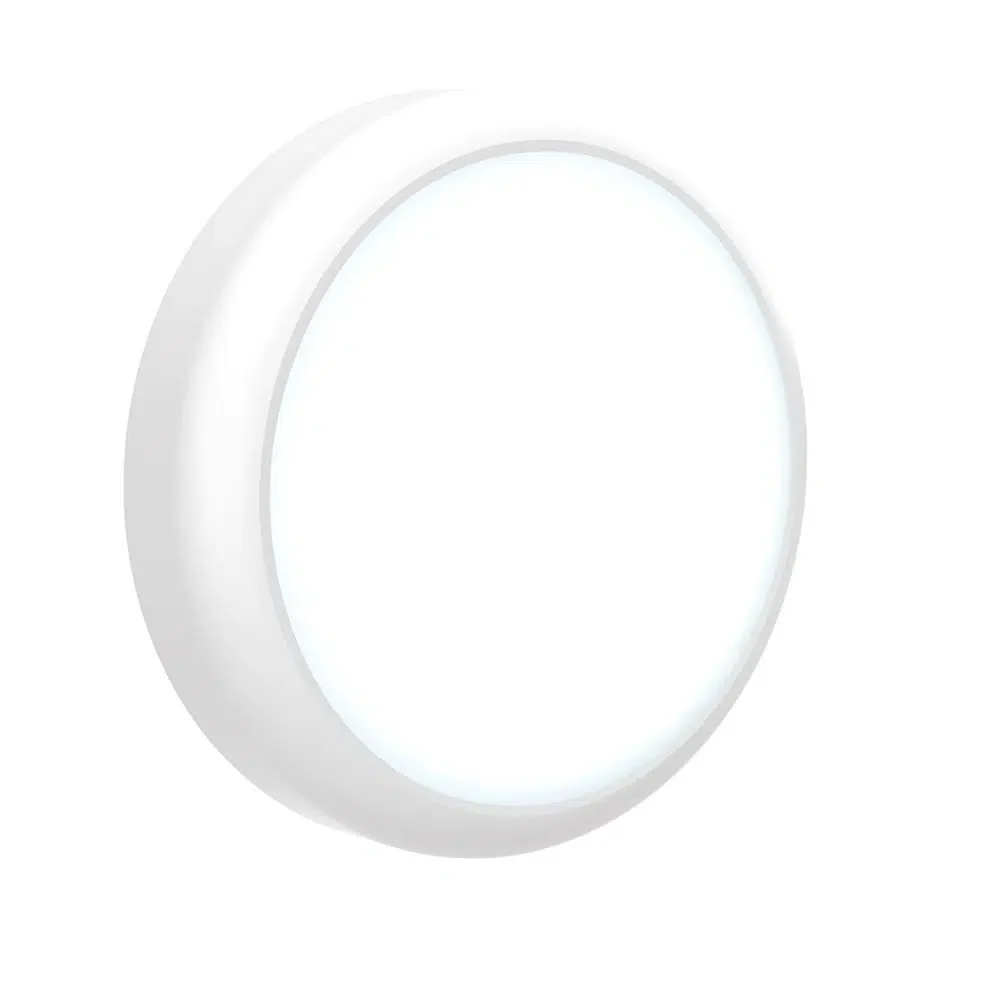

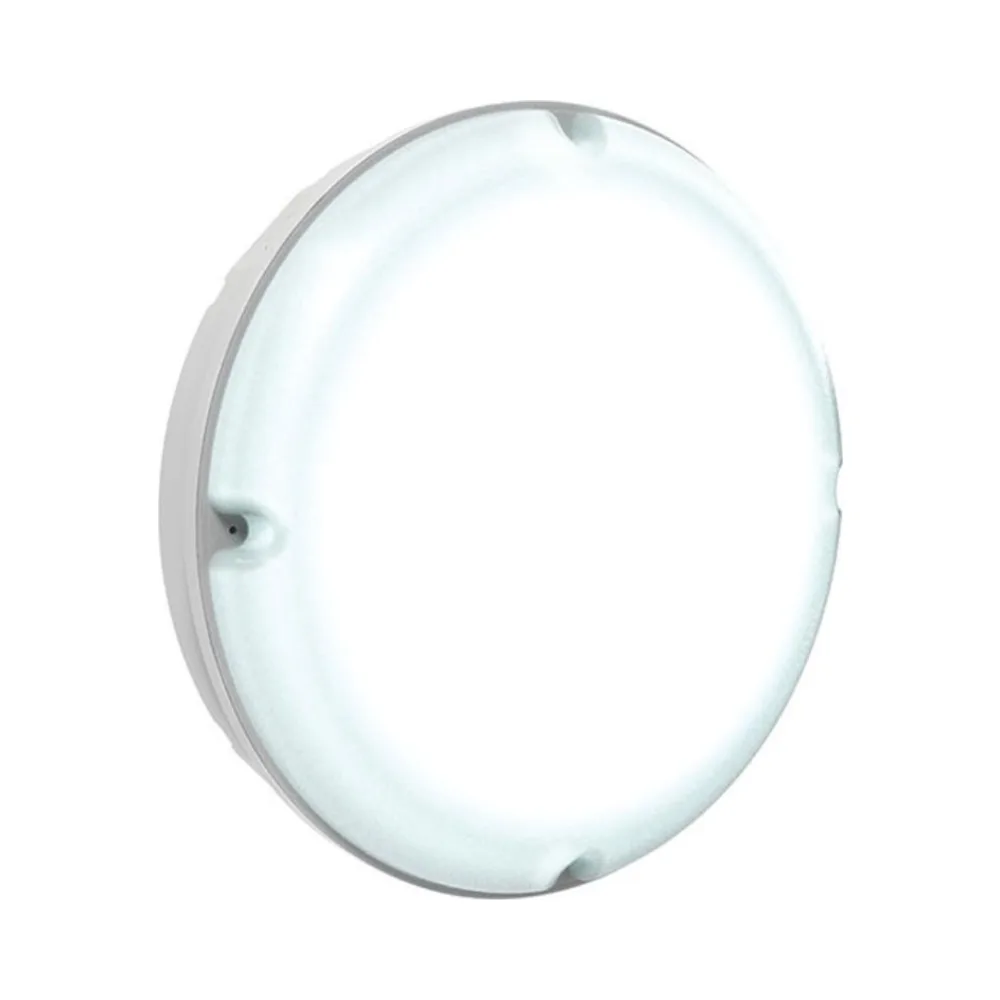

Bruno 3 16W IP65 IK10 CCT Selectable LED Bulkhead
The ALL LED Bruno 3 16W CCT IP65 LED Bulkhead delivers adjustable colour temperature (3000 K • 4000 K • 6000 K) alongside IP65 and IK10 ratings, housed in a shatterproof polycarbonate shell with quick-release gear tray and white ring bezel as standard.
Installers value its Q-Nex Plug-and-Play system for easy integration of emergency packs or sensor modules. It includes four conduit entries, captive screws, push terminals, and built-in BESA box mounts—perfect for both wall and ceiling applications, indoors or in challenging environments.
Key Features – Bruno 3 16W LED Bulkhead
- CCT-selectable: 3000 K / 4000 K / 6000 K
- Ultra-high efficiency (≤ 148 lm/W)
- IP65-rated for dust & water resistance
- IK10-rated, shatter-resistant polycarbonate construction
- Quick-release flip-down gear tray; push-terminal wiring
- Four side conduit entries; captive screws
- Integrated BESA box mounts; wall or ceiling installation
- White ring bezel included; wide variety of bezel accessories
- Optional Q-Nex Plug-and-Play emergency (AB/EM/PACK) or sensor module (AB/MSC)
- 5-year guarantee
Technical Overview — Bruno 3 16W LED Bulkhead
- Wattage: 16 W
- Luminous Flux (lm): 2130 (3000 K), 2370 (4000 K), 2350 (6000 K)
- Useful Flux (lm): same as above
- Peak Intensity (cd): 669 / 729 / 715
- Beam Angle: 115°
- Colour Rendering Index (CRI): > 80
- Operating Voltage: 220–240 VAC, 50/60 Hz
- Operating Current: max 0.092 A
- Power Factor (PF): 0.79; Displacement Factor: ≥ 0.7
- No-load Power: ≤ 0.5 W
- Driver Max Output: 180 mA, 89 V DC
- Efficiency: approx. 89%
- Flicker Metric (PstLM): ≤ 1.0; Stroboscopic Metric (SVM): ≤ 0.4
- Class II insulation; Energy Rating: E
- Ambient Temperature: –20 °C to +45 °C
- Lifetime (L70 B50): 50,000 h; Switching Cycles: 50,000
- Body: Polycarbonate; Frame Colour: White
- Warranty: 5 years
Why Choose This Product?
Bruno 3 sets itself apart with its flexible CCT settings, high luminous output, and durable IP65/IK10 design—perfect for demanding indoor or outdoor settings. The modular Q-Nex system supports a seamless upgrade path, while the quick-install features save time without sacrificing reliability.
About All LED
All LED specialises in durable, professional lighting solutions. The Bruno series exemplifies their approach—robust, adaptable fixtures that combine ease of install with industry-grade performance, trusted by professionals across the UK and beyond.
