Description
Dimmable 350mA Ground Uplight – 60mm Cut-Out
ALL LED AGL060SS/30

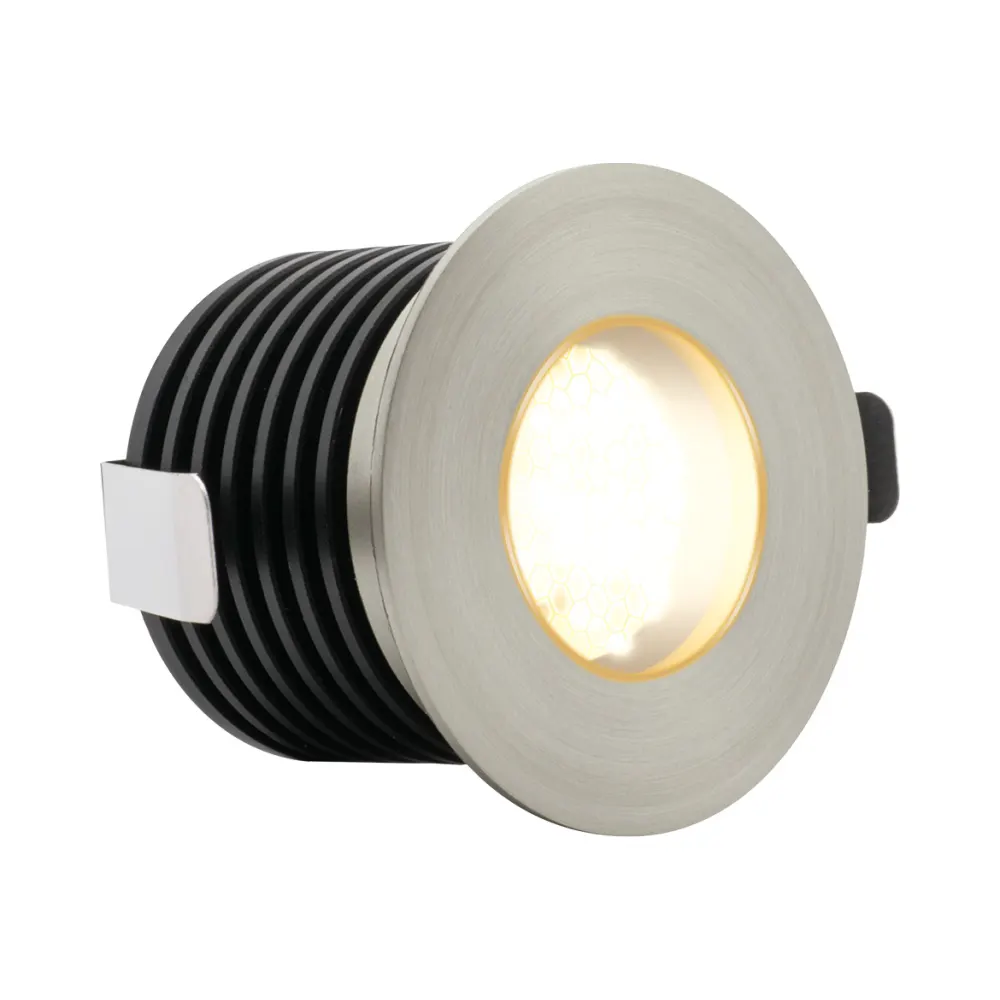

The ALL LED Marine 7 AGL060SS/30 3000K Ground Light is a premium 7W in-ground uplight manufactured from 316L marine-grade stainless steel. Designed for coastal and harsh outdoor environments, it features a honeycomb anti-glare baffle, IP67 protection and a precise 15° narrow beam. This fitting becomes dimmable when paired with a suitable 350mA constant current driver and is ideal for architectural lighting, pathways, decking and landscaping projects.
Overview – ALL LED Marine 7 AGL060SS/30 3000K Ground Light
- 316L marine-grade stainless steel bezel and body
- Honeycomb anti-glare system for comfortable, controlled light output
- Internal baffle to minimise glare and improve visual comfort
- IP67 ingress protection for demanding outdoor environments
- Drive-over rated up to 2 metric tonnes
- Precision 15° narrow beam for focused feature lighting
- 50,000 hour lifetime with 3-year manufacturer guarantee
- Accreditations: CE, RoHS, ErP, Class III
Key Features of ALL LED Marine 7 AGL060SS/30 3000K Ground Light
- ⚠️ Series Wiring Required – 350mA Constant Current
- 7W LED with high CRI <92 for accurate colour rendering
- 60mm cut-out for secure recessed installation
- Warm white 3000K colour temperature
- 15° narrow beam with peak 805 cd intensity
- Instant start with <100,000 switching cycles
- Operating temperature: -20°C to +50°C
- Lifetime rated to LM70: 50,000 hours
Typical Applications
- Coastal properties and marine environments
- Premium landscaping and architectural accent lighting
- Driveways, paths and patios (2T drive-over rated)
- Feature uplighting for walls, pillars, trees and sculptures
- High-end commercial and residential exterior projects
Drivers and Installation Accessories
This fitting requires a 350mA constant current LED driver and ⚠️ must be wired in series.
- ALL LED 350mA mains dimmable drivers – for smooth dimming performance.
- Ground Light Installation Accessories – sleeves, junction boxes, glands and exterior-rated cable.
To achieve the full 2 metric tonne drive-over rating, install using the appropriate mounting sleeve.
