ALL LED Programmable Grid Dimmer – 150W LED

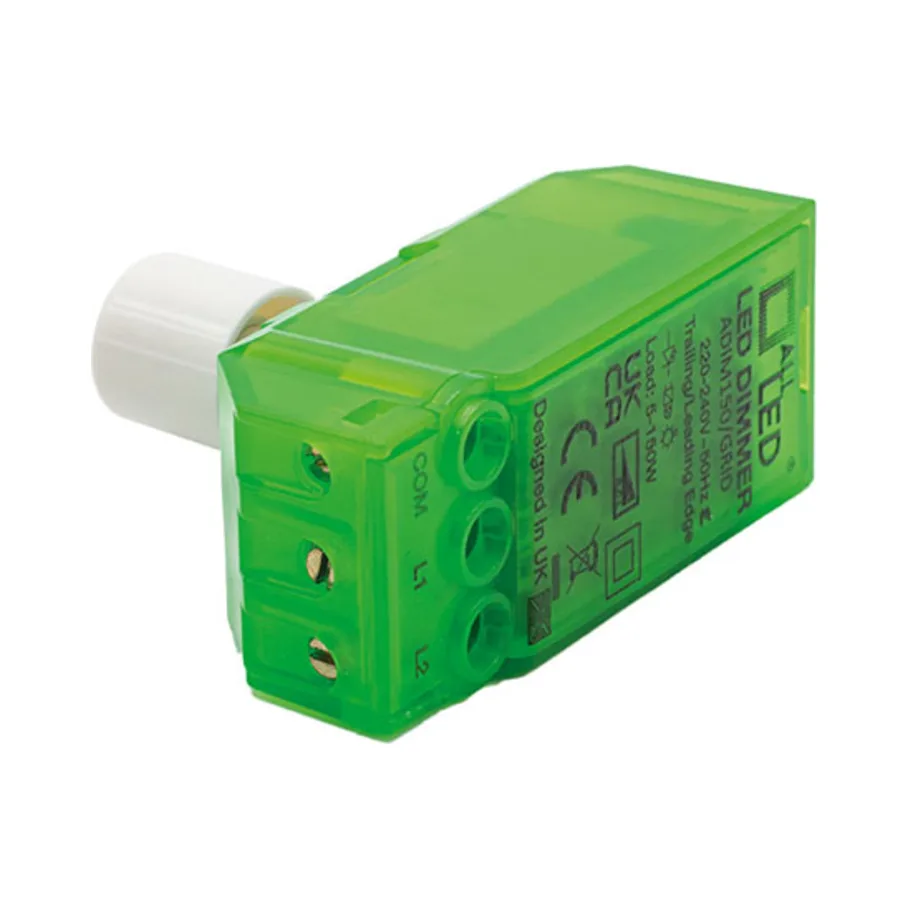

ALL LED | ADIM150/GRID/WH
ALL LED programmable grid dimmer (LED) technology delivers smooth, reliable dimming control for modern LED lighting installations. The All-Dim 150W Programmable 2 Way LED Grid Dimmer is designed specifically for LED loads, providing flicker-free performance, wide compatibility, and installer-friendly flexibility.
Key Features – ALL LED Programmable Grid Dimmer – 150W
- Programmable leading edge and trailing edge dimming modes
- 5W–150W maximum LED load
- No maximum luminaire quantity
- Adjustable minimum brightness setting
- Advanced OptiDim technology for smooth, flicker-free dimming
- Wide dimming compatibility across LED lamp brands
- Centre spindle design for grid system compatibility
- Enlarged terminals for fast, secure wiring
- Suitable for retrofit and new installations

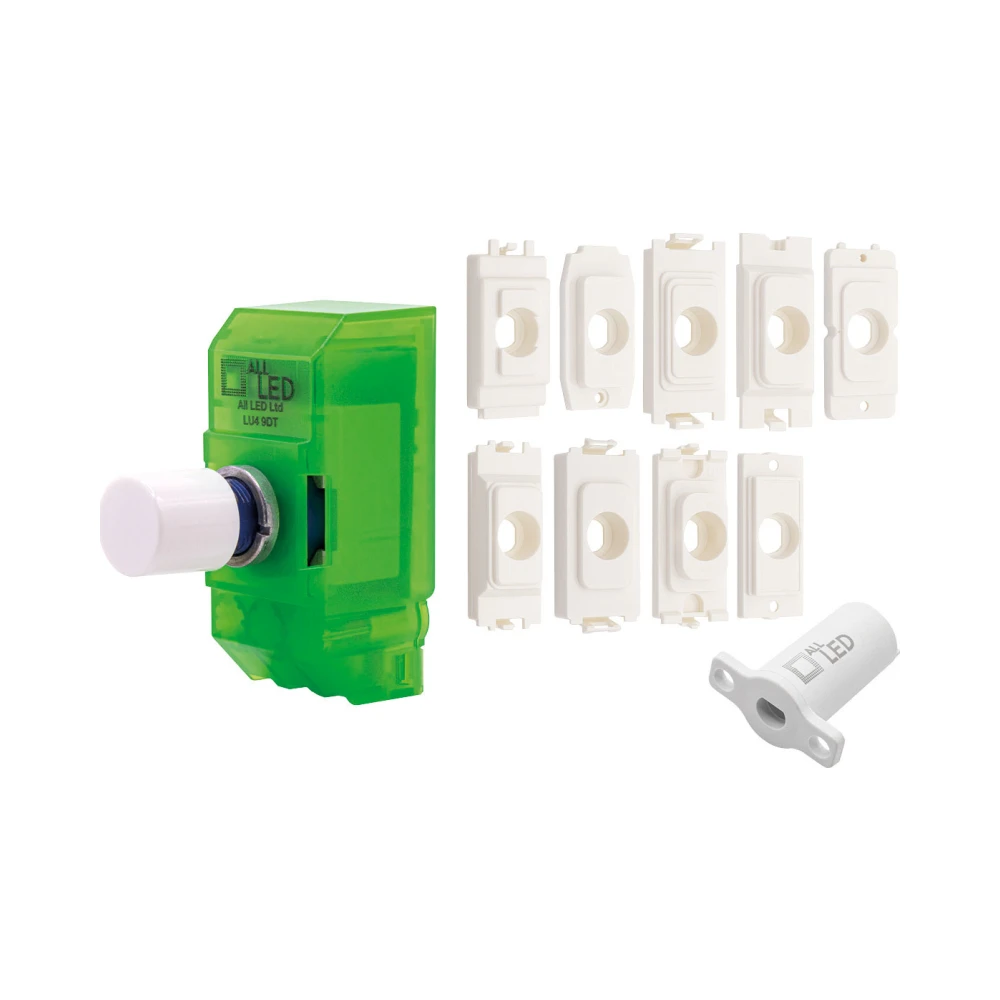

- Supplied with nine white adaptor plates
- Includes ALL LED dimmer nut tool
Technical Specifications
- Operating voltage: 220–240V AC
- Operating current (max): 0.7A
- Output power: 5W–150W LED
- Dimming modes: Leading edge and trailing edge (fully programmable)
- Power factor: ≥0.83
- No-load power: 0W
- Input frequency: 50Hz
- Electrical class: Class II
- Ingress protection: IP20
- Body material: Polycarbonate
- Operating temperature: -10°C to +40°C
- Guarantee: 2 years
Applications
Suitable for residential LED lighting circuits, commercial and office installations, retrofit grid dimmer upgrades, and new-build lighting projects.
