High-Performance Anti-Corrosive LED Batten for Harsh Environments

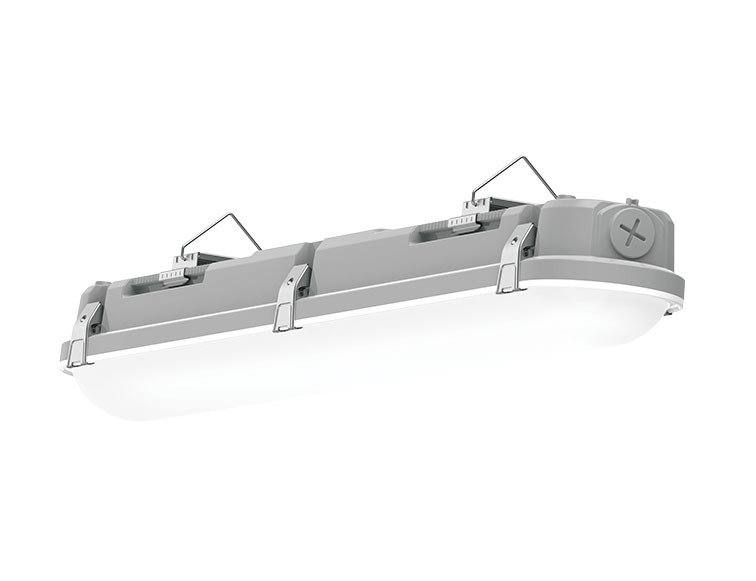

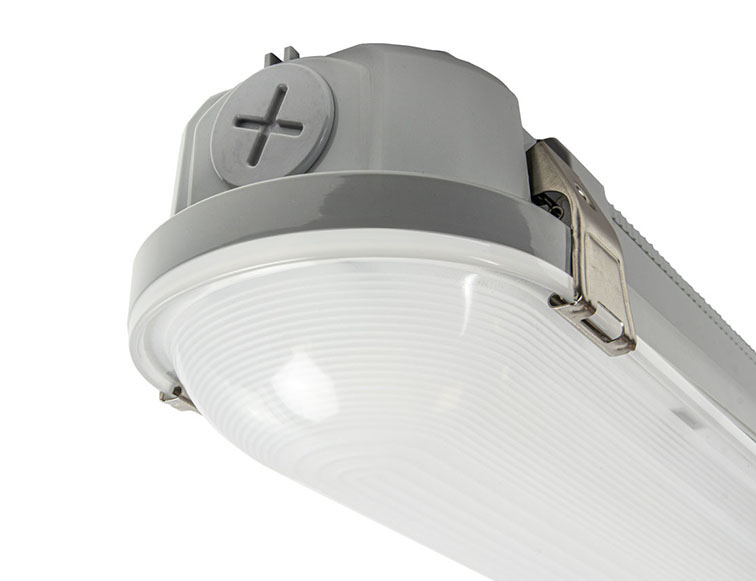

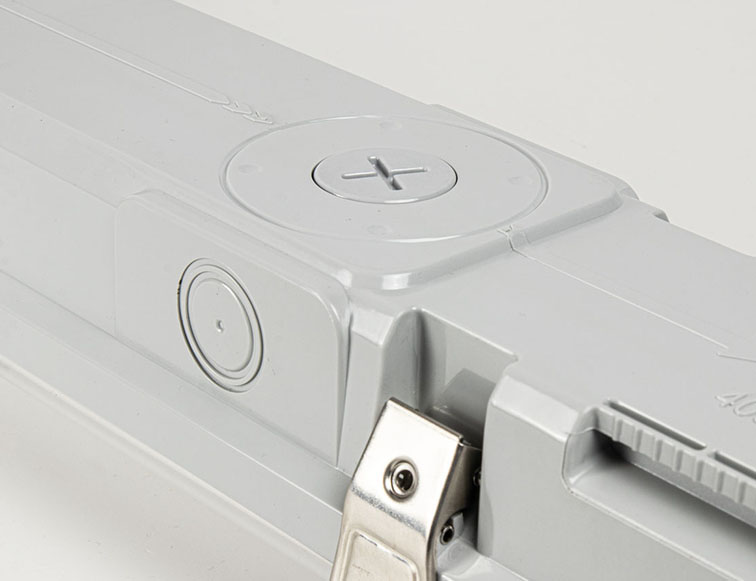

ALL LED ABAR/XT2FT/CCT 18W Anti-Corrosive LED Batten
The ALL LED ABAR/XT2FT/CCT 18W Anti-Corrosive LED Batten is engineered for demanding commercial and industrial spaces. Designed with Q-Nex Plug & Play technology, it allows fast integration of optional self-testing emergency (ABAR/EM/ST) and 2-in-1 programmable microwave sensor modules (ABAR/MS2IN1), offering enhanced control and compliance.
With selectable wattages (10W / 12W / 15W / 18W) and CCT options (3000K / 4000K / 6500K), this versatile fitting adapts to a wide range of environments. Delivering up to 152lm/W and up to 2430 lumens, it provides powerful, efficient illumination. Built with a robust polycarbonate body, IP66 ingress protection and IK10 impact resistance, it performs reliably in warehouses, car parks, plant rooms and external covered areas.
Integrated Besa mounts, dynamically located push terminals, and a drop-down LED module with gear tray ensure simple installation and maintenance. Backed by a 5-year guarantee, this Barracuda Extreme batten delivers durability without compromise.
Key Features – ALL LED ABAR/XT2FT/CCT 18W Anti-Corrosive LED Batten
- Q-Nex Plug & Play technology
- Wattage selectable: 10W / 12W / 15W / 18W
- CCT selectable: 3000K / 4000K / 6500K
- Ultra-high efficiency up to 152lm/W
- IP66 rated | IK10 impact resistant
- Optional plug-in emergency and microwave sensor modules
- Integrated Besa mounts for fast installation
- Drop-down LED module and gear tray for easy access
Technical Overview – ALL LED ABAR/XT2FT/CCT 18W Anti-Corrosive LED Batten
- Protection class: IP66
- Impact resistance: IK10
- Operating voltage: 220–240V AC
- Operating current (max): 0.15A
- Beam angle: 110°
- Power factor: 0.9
- Efficiency: 88%
- Ambient temperature range: -35°C to +40°C
- Lifetime: 55,000 hours (L70 B50)
- Body material: Polycarbonate
- Frame colour: Grey
- Class: I
- Standby power: <0.5W
- Input frequency: 50/60Hz
- SDCM: <6
- CRI: >80
- Switching cycles: 25,000
- Flicker metric (PstLM): <1
- Stroboscopic effect metric (SVM): <0.4
Why Choose This Product?
Choose the ABAR/XT2FT/CCT for robust, high-efficiency lighting in wet, dusty or impact-prone environments. Its selectable output, modular compatibility and IP66/IK10 protection make it ideal for professional installations.
About ALL LED
ALL LED delivers innovative, contractor-focused lighting solutions designed for performance, efficiency and long-term reliability across commercial and industrial applications.
Guarantee & Compliance
This product is IP66 and IK10 rated, Class I, and backed by a 5-year manufacturer guarantee.
