Description

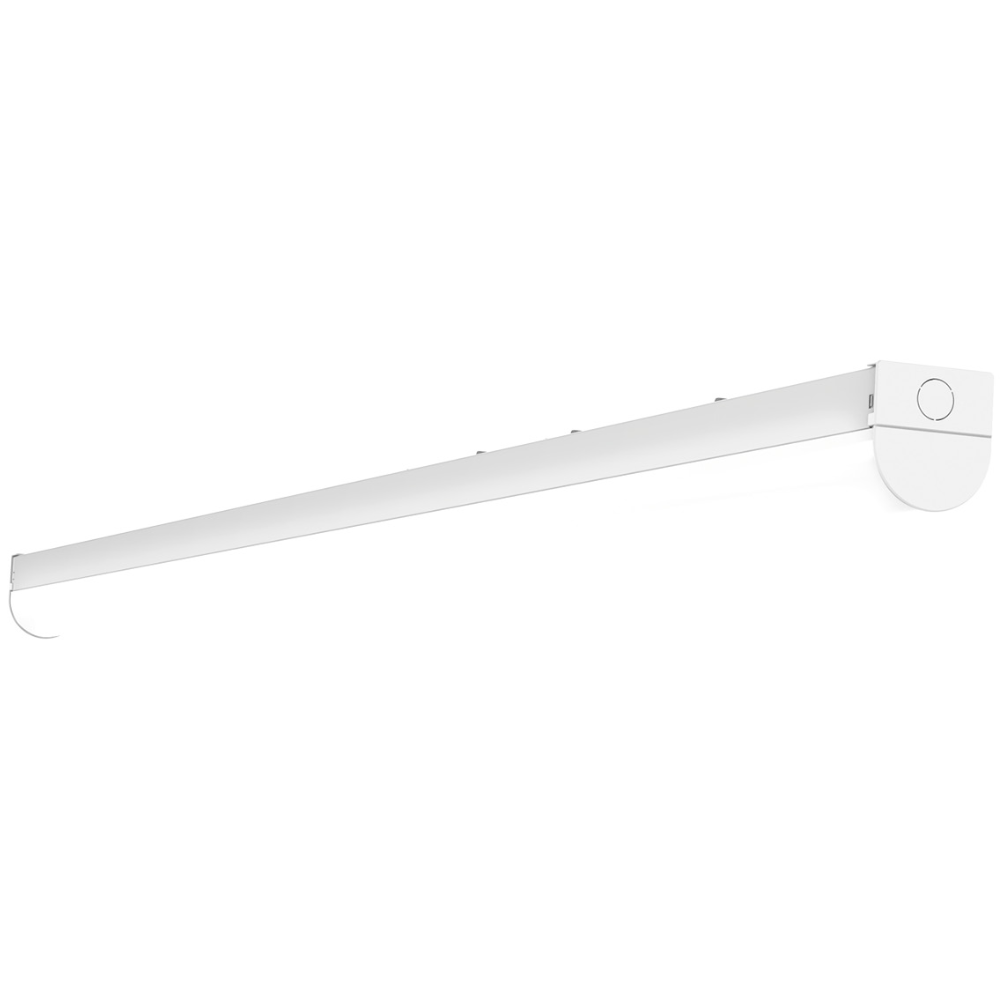

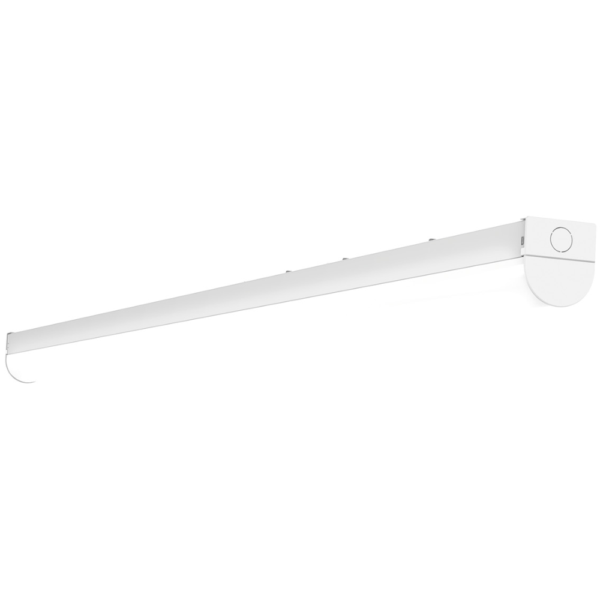

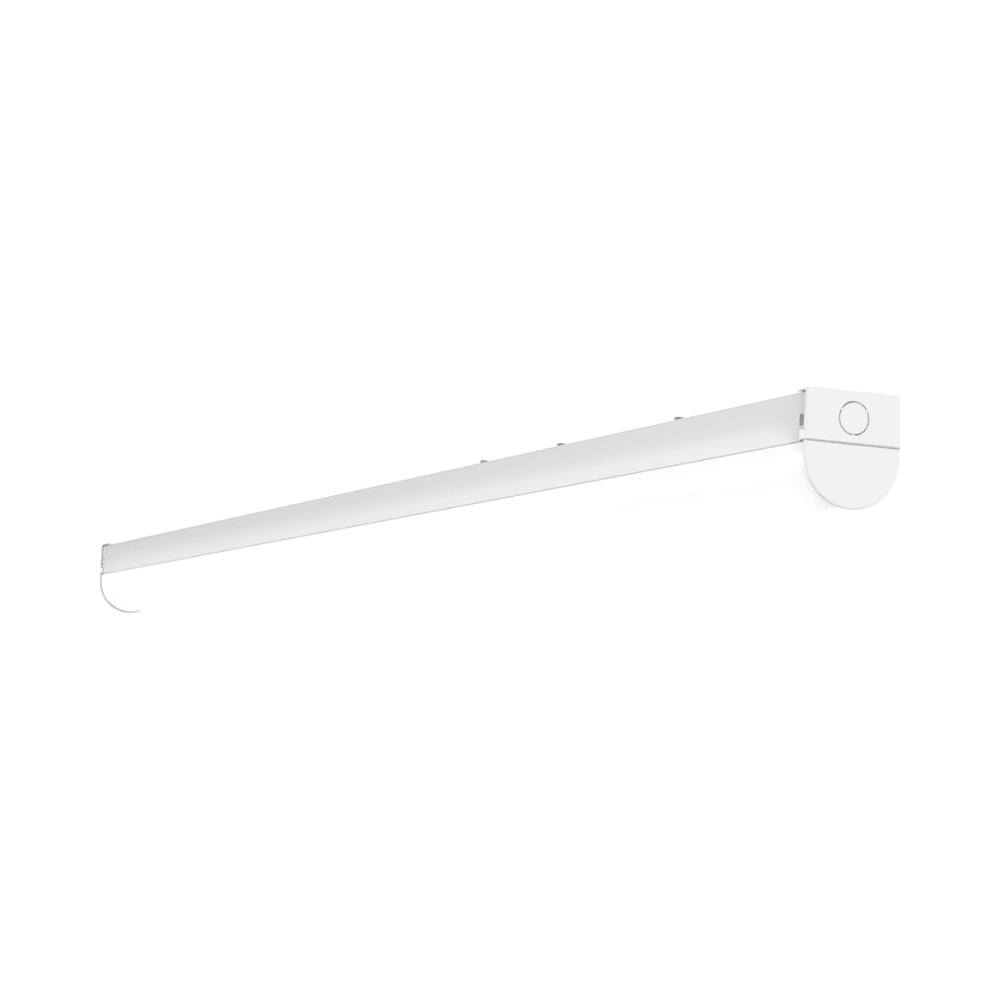

Barracuda 5ft IP20 CCT & Wattage Selectable Batten
ALL LED ABAR/5FT/CCT
Versatile, High-Efficiency Lighting with Q-Nex Plug & Play Technology – ALL LED ABAR/5FT/CCT CCT LED Batten
The Barracuda CCT & Wattage Selectable LED Batten delivers customisable and energy-efficient lighting for commercial, industrial, and residential applications. Featuring Q-Nex Plug & Play Technology, it simplifies both installation and maintenance, making it a smart choice for modern lighting solutions.
With CCT selectable options (3000K, 4000K, 6500K) and adjustable wattage (29W, 38W, 47W, 55W), users can tailor the lighting output to meet specific project needs. The drop-down gear tray allows for easy access, while the integrated Besa mounts and multiple cable entry points offer installation flexibility.
Enhancing safety and convenience, the batten supports Q-Nex Plug & Play accessories, including a self-testing emergency module and a fully programmable 2-in-1 microwave motion and corridor sensor. Designed for efficiency and durability, this batten provides up to 150lm/W, ensuring bright illumination with reduced energy consumption.
Key Features – ALL LED ABAR/5FT/CCT CCT LED Batten
- Q-Nex Plug & Play Technology – Simplifies installation and maintenance
- CCT Selectable – Choose between 3000K, 4000K, and 6500K
- Wattage Selectable – Adjustable power settings: 29W, 38W, 47W, 55W
- Ultra High Efficiency – Delivers up to 150lm/W
- Drop-Down Gear Tray – Ensures quick and easy access for installation
- Multiple Installation Options – Includes Besa mounts and multiple cable entry holes
- Smart Accessories Available:
- Q-Nex Plug & Play 3-Hour Self-Testing Emergency Module (ABAR/EM/ST)
- Q-Nex Plug & Play 2-in-1 Microwave Sensor Module (ABAR/MS2IN1)
- Durable Construction – Made from steel & polycarbonate with a polar white (RAL9003) finish
- 5-Year Guarantee – Ensuring long-term reliability
Technical Specifications
- Luminous Flux (Max): ≤8100lm
- Efficiency: ≤150lm/W
- Beam Angle: 110°
- Power Factor: 0.9
- Standby Power: <0.5W
- Operating Voltage: 220-240V AC
- Switching Cycles: 25,000
- Lifetime (L70 B50): 55,000 hours
- Ingress Protection: IP20
- Operating Temperature: -35°C to +40°C
- Class: I
- Input Frequency: 50/60Hz
- Flicker Metric (PstLM): <1
- Stroboscopic Effect Metric (SVM): <0.4
Why Choose ALL LED ABAR/5FT/CCT CCT LED Batten?
The Barracuda 5ft CCT & Wattage Selectable LED Batten is a versatile and energy-efficient lighting solution, providing customisable light output and easy installation. With smart plug & play accessories, ultra-high efficiency, and durable construction, it is ideal for a range of professional and commercial applications.
