Description

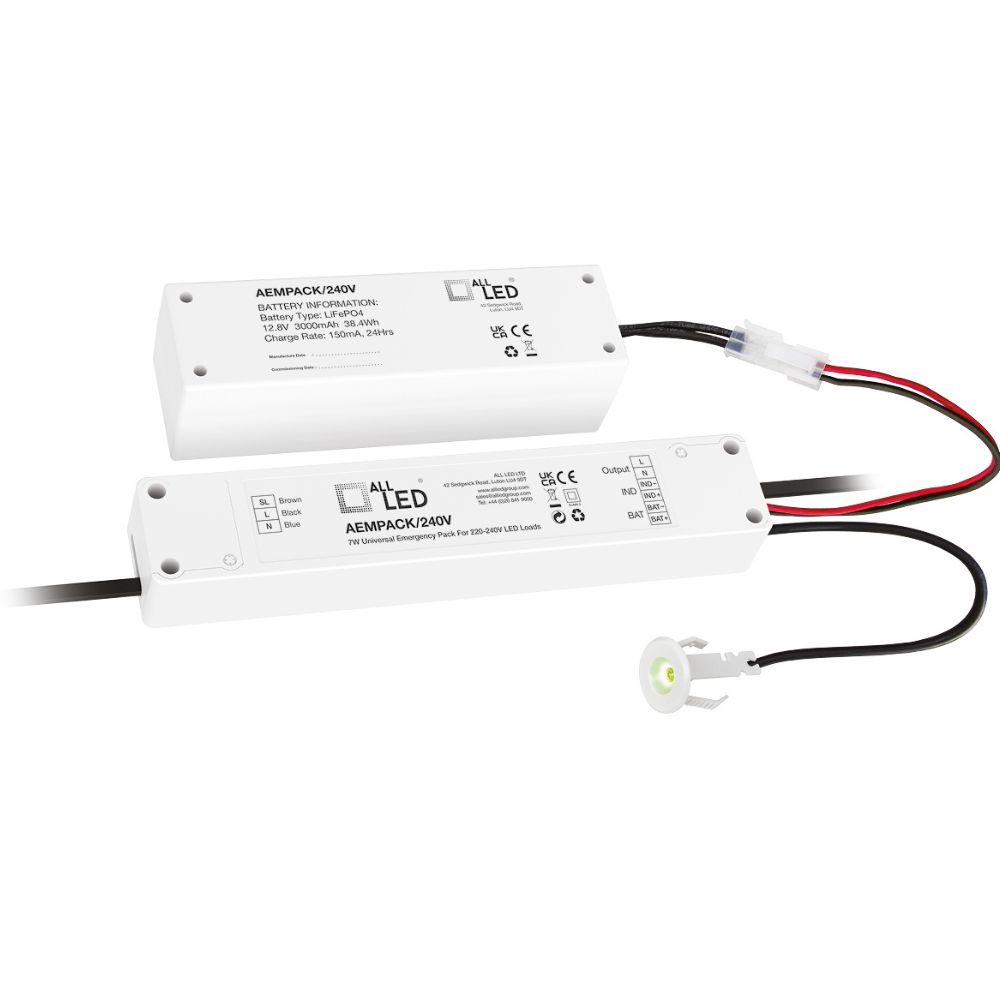

ALL LED 7W Universal Emergency Pack for 220–240V LED Loads
ALL LED 7W Universal Emergency Pack 240V
The ALL LED AEMPACK/240V is a 7W universal emergency pack designed for 220–240V AC LED loads up to 40W. Featuring LiFePO4 battery technology with a 38.4Wh capacity and 12.8V DC output, it delivers over 3 hours of emergency illumination during mains power failure. The unit operates at 7W emergency output (2W secondary mode) with a maximum output voltage of 320V DC.
Designed for compatibility with approved ALL LED fittings, the emergency pack integrates with downlights, lamps and other LED fixtures while maintaining consistent performance across compliant installations.
Key Features – ALL LED 7W Universal Emergency Pack 240V
- 7W universal emergency pack
- Compatible with 220–240V AC LED loads
- Supports approved fixtures up to 40W
- Emergency output power: 7W / 2W
- Emergency duration: >3 hours
- LiFePO4 lithium battery technology
- Battery capacity: 38.4Wh (12.8V DC, 3Ah)
- 24-hour charge time
- Maximum output voltage: 320V DC
- Class II construction
- IP20 rated
- Polycarbonate body
- 2-year guarantee
Technical Overview
- Operating voltage: 220–240V AC
- Input frequency: 50/60Hz
- Charging current (max): 0.2A
- Emergency output current (max): 1A
- Power factor: >0.5
- Ambient operating temperature: 0°C to +45°C
- Ingress protection: IP20
- Body material: Polycarbonate
- Battery type: LiFePO4
- Mounting: Ceiling void installation
Installation & Compatibility
The AEMPACK/240V must be used with ALL LED compatible fittings for warranty purposes. Live (L) and neutral (N) must be charged frequently and external connection with a control switch is prohibited. Minimum ceiling void requirements vary depending on fitting size, as detailed in the installation guide.
