Description

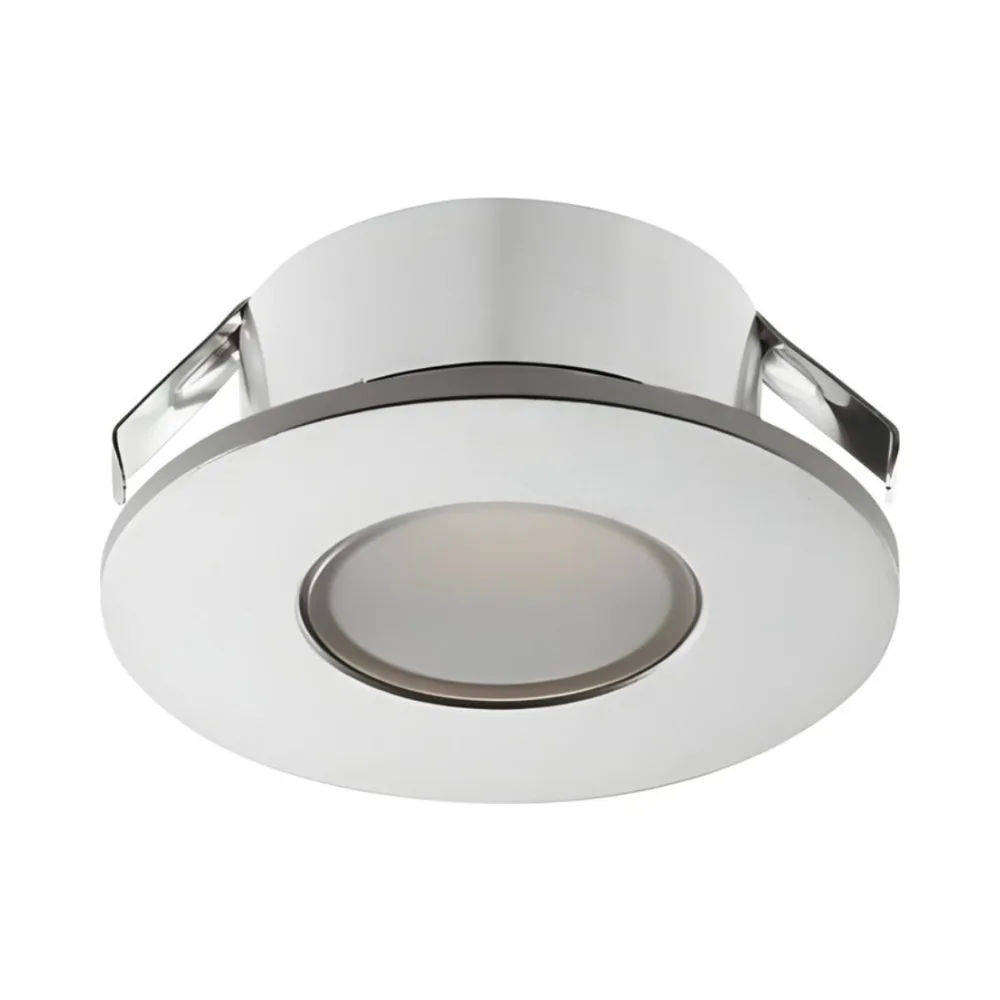

LED 2022 12V Mini Recessed Downlight
Hafele 833.72.086
The Hafele 833.72.086 Loox5 LED 2022 12V Spot Light is a compact mini LED downlight designed for shelving, cabinetry, display units and wet-room environments. When recess-mounted, it reaches IP44 splash-proof protection, suitable for bathroom zone-1 areas. Its 35 mm diameter with a slim 1.5 mm rim delivers a clean finish, while the Ø26 mmpress-fit design allows easy installation.
Applications – Hafele 833.72.086 Loox5 LED 2022 12V Spot Light

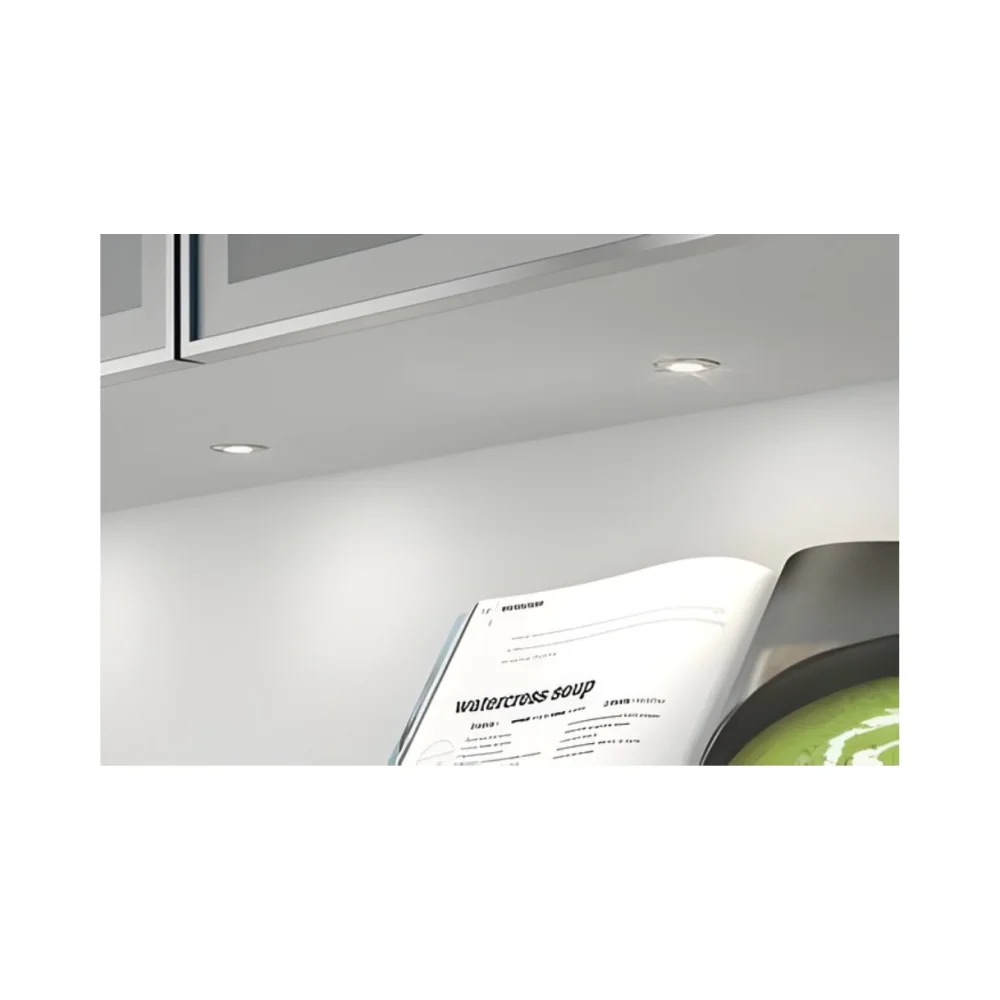

- Display cabinets, shelving and furniture lighting
- Wet rooms and bathrooms (IP44 recess mounted)
- Retail and residential accent lighting
- Suitable for installations using Ø26 mm mini hinge drill holes
Key Features – Hafele 833.72.086 Loox5 LED 2022 12V Spot Light
- Part of the Loox5 12V lighting system
- 1.5W output, 4000K cool white
- IP44 when recess mounted; IP20 when surface mounted
- Ø26 mm drill hole, press-fit or screw-fix installation
- 90° wide refraction angle
- 2.0 m Loox5 connector lead included
- Dimmable with Loox drivers and switches
- Robust aluminium housing
Technical Specifications – Hafele 833.72.086 Loox5 LED 2022 12V Spot Light
- Model: Loox5 LED 2022
- Voltage: 12V
- Wattage: 1.5W
- Colour temperature: 4000K
- Diameter: 35 mm
- Drill hole: Ø26 mm
- IP rating: IP44 (recess mounted), IP20 (surface mounted)
- Beam angle: 90°
- Housing material: Aluminium
- Cable length: 2000 mm (Loox5 connector)
- Energy class: G
- Dimmable: Yes
Order Information
- Driver and mains lead sold separately
- Optional bezels available
- Switch ordered separately
- Supplied with Loox5 connector lead and fixings
Hafele Lifetime Guarantee
This product is covered by the Hafele Lifetime Guarantee. Manufacturer page: https://www.hafele.co.uk/en/
