High-Quality LSZH Cable for Reliable Industrial Use

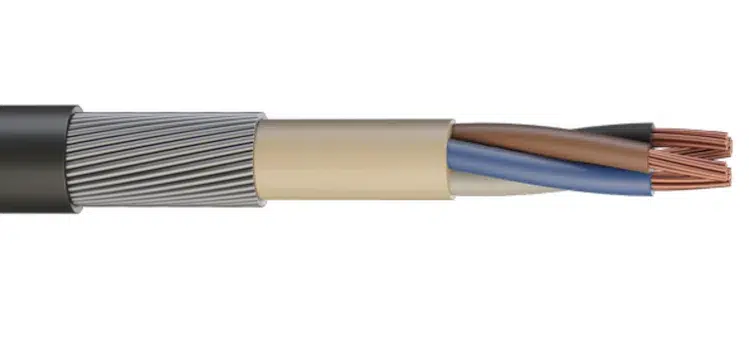

Doncaster Cables SWA LSZH Steel Wire Armoured Cable
The Doncaster Cables SWA cable guarantees excellent performance in varied electrical installations. With robust features, this Low Smoke Zero Halogen (LSZH) cable offers enhanced fire safety, making it an ideal choice for sensitive environments. Manufactured to the strict BS 6724 standards, and available in several core configurations, it stands up to the highest demands.
Overview
Designed for both safety and efficiency, this cable features plain annealed copper conductors and XLPE insulation. The LSNH bedding ensures minimal toxic emissions during fire incidents. With a galvanised steel wire armour (SWA), this cable provides additional mechanical protection, making it suitable for outdoor or industrial settings.
Key Features of Doncaster Cables LSZH SWA 7 Core 2.5mm² – 25 Metres
- Manufactured to BS 6724 standards.
- Plain Annealed Copper Conductor for superior conductivity.
- XLPE insulation for excellent thermal stability.
- Low Smoke Zero Halogen composition for enhanced fire safety.
- Galvanised Steel Wire Armour for increased durability.
- Available in various core configurations: 2, 3, 4, and 5 core.
Applications
This cable is predominantly used for industrial wiring and mains distribution. It’s specifically designed for environments where smoke and acid gas emissions could be hazardous. Installations often take place in air, clipped to surfaces, on cable trays, embedded in concrete, or buried underground.
Specifications
- Conductor: Plain Annealed Copper Class 2 Stranded to BS EN 60228.
- Insulation: Thermosetting XLPE Type GP8 to BS 7655-1.3.
- Sheath: LSNH Type LTS1 to BS 7655-6.1.
- Min Operating Temperature: -15°C.
- Max Operating Temperature: 90°C.
- Min Bending Radius: 8 x ∅.
- Core Colours: 2 Core – Brown and Blue; 3 Core – Brown, Black and Grey; 4 Core – Blue, Brown, Black and Grey; 5 Core – Green/Yellow, Blue, Brown, Black and Grey.
- Sheath Colour: Black.
- Current Carrying Capacity: For specific ratings, see table 4E4A of BS7671 IEE Wiring Regulations.
Why Choose This Product
Selecting the Doncaster Cables SWA LSZH cable ensures compliance with the latest BS7671 Wiring Regulations. At Electrical4Less, we source our cables from reputable UK distributors. This guarantees you receive safe, reliable products that meet industry standards. Invest in a cable that provides peace of mind and long-lasting performance.
