5 Core 10mm² H6945XL10 XLPE SWA PVC Steel Wire Armoured Cable – 100 Metres

SKU: H6945XL10/100
Delivery usually within 1-3 working days*
Confirm Availability

Discover the 5 Core 10mm² H6945XL10/100 XLPE SWA Cable at Doncaster Cables. Ideal for heavy-duty applications, it features durable XLPE insulation, steel wire armoring, and excellent electrical performance, ensuring safety and efficiency.

£886.60 + VAT

(incl. VAT £1,063.92)

Description

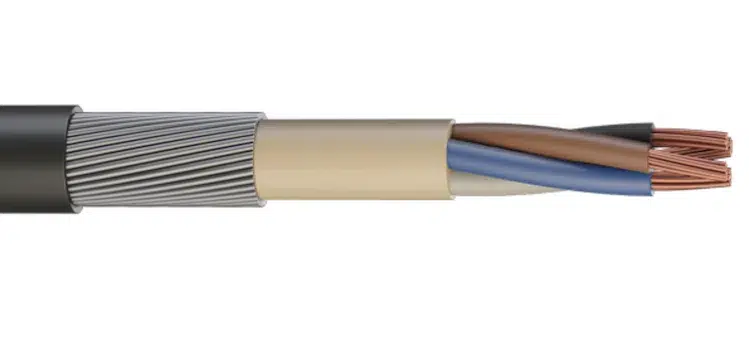

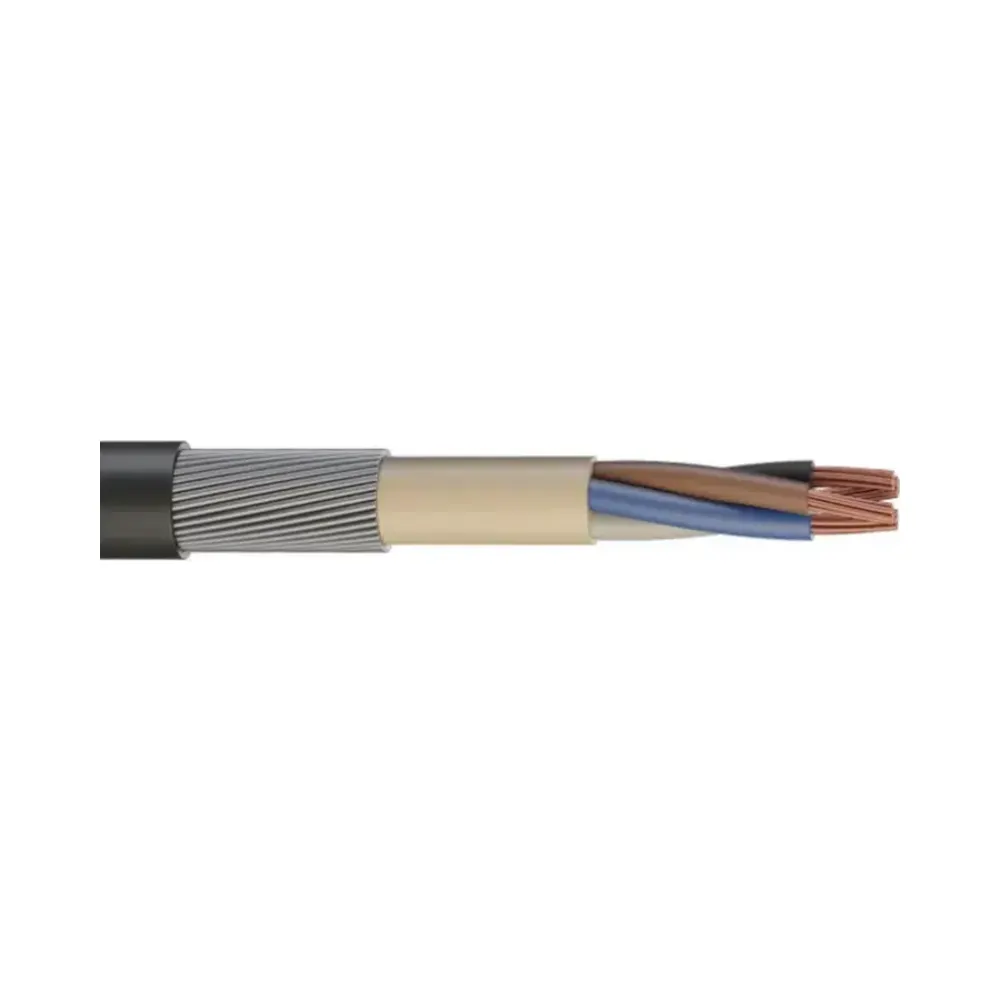

Five Core 10mm² H6945XL10 XLPE SWA PVC Cable – 100 Metres

Doncaster Cables SWA PVC Steel Wire Armoured Cable

Introducing the Doncaster Cables SWA PVC Steel Wire Armoured Cable, a high-performance solution for various electrical installations. This durable cable is specifically designed for both residential and industrial use. With its robust construction and compliance with British standards, it ensures reliable performance in any environment.

Overview

Manufactured to BS 5467, this cable features plain annealed copper conductors that are thermosetting XLPE insulated. The PVC bedding provides additional protection, while the galvanised steel wire armour enhances its durability. This cable is suitable for a voltage rating of 600/1000V, making it ideal for demanding applications.

Key Features of 5 Core 10mm² H6945XL10/100 XLPE SWA Cable

  • Complies with BS 5467 for reliable performance
  • Plain annealed copper conductors for optimal conductivity
  • XLPE insulation for enhanced temperature resistance
  • Galvanised steel wire armour for superior mechanical protection
  • Multiple core options to suit your project needs

Applications

This cable is predominantly used in industrial wiring and mains distribution. It is suitable for installation in various settings, such as:

  • Air installation
  • Clipped to surfaces
  • Cable tray or ladder work
  • Embedded in concrete
  • Buried directly or in ducting underground

Specifications

Here are the key specifications of the Doncaster Cables SWA PVC cable:

  • Minimum Operating Temperature: -15˚C
  • Maximum Operating Temperature: 90˚C
  • Core Colours (5 Core): Green/Yellow, Blue, Brown, Black, Grey
  • Insulation Type: XLPE Type GP8 to BS 7655-1.3
  • Bedding Material: PVC
  • Sheathing Type: PVC Type 9 to BS 7655-4.2

Why Choose This Product

Opting for the Doncaster Cables SWA PVC Steel Wire Armoured Cable signifies choosing a trusted and high-quality product. This cable is ideal for a range of applications, ensuring safety and compliance with the IET Wiring Regulations.

In summary, the Doncaster Cables SWA PVC Steel Wire Armoured Cable is a durable and versatile PVC-insulated cable. It is designed to be installed in air, clipped to surfaces, on cable tray, embedded in concrete, and buried directly or in ducting underground. This cable is widely used in residential, commercial, and industrial electrical installations, ensuring reliable performance and compliance with UK wiring standards. Trust in the Doncaster Cables SWA PVC Steel Wire Armoured Cable for your electrical wiring needs.

Downloads

Data Sheet Data Sheet

Additional information

Brand

Doncaster Cables

Number of Cores

5 Core

Insulation

XLPE – Thermosetting

Sheath

PVC

Size

10mm

Length

100m

Product

SWA Steel Wire Armoured Cable
