Description
Doncaster Cables H6945XL1.5

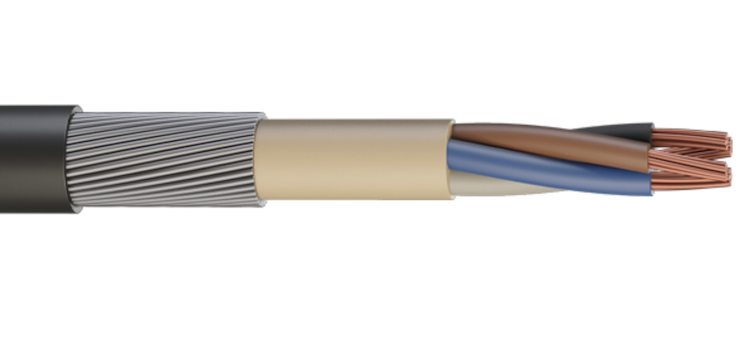

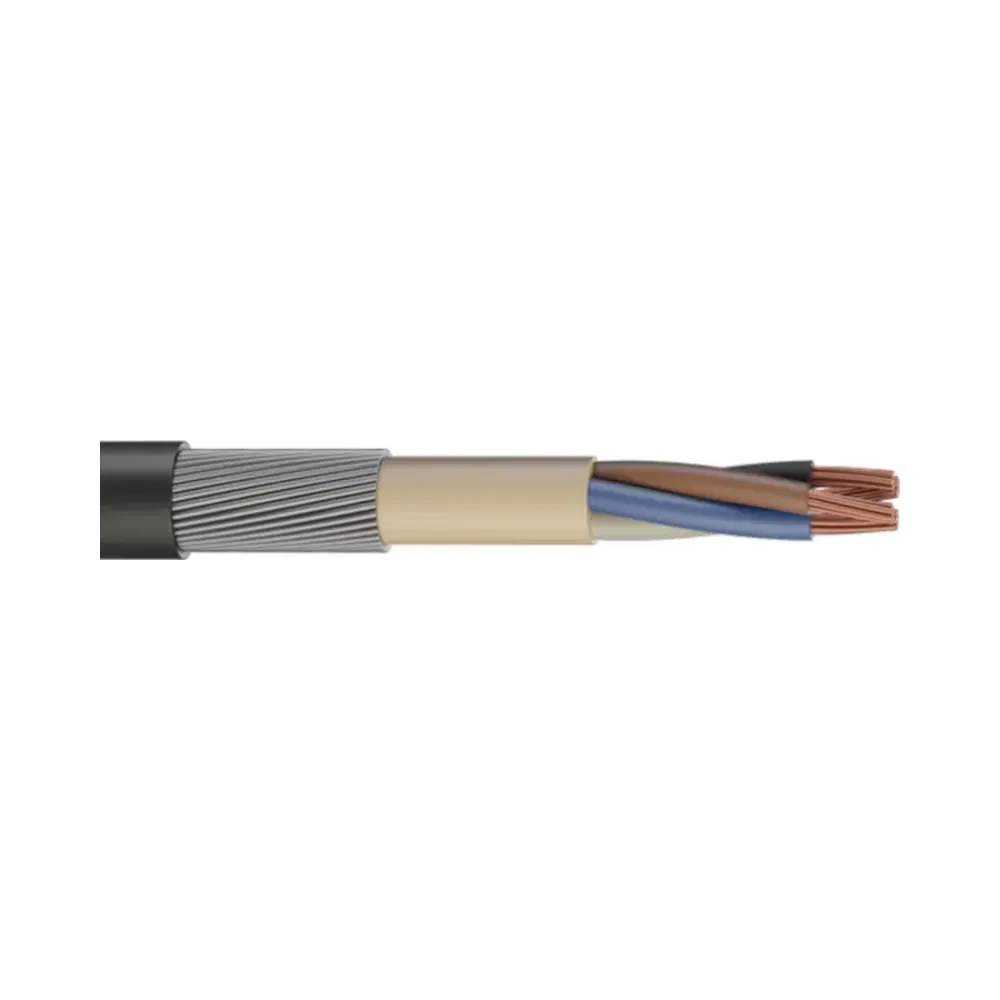

5 Core 1.5mm² XLPE SWA PVC Steel Wire Armoured Cable (Cut to Length)
The 5 Core 1.5mm² H6945XL1.5 XLPE SWA PVC Steel Wire Armoured Cable is a robust and reliable choice for industrial wiring and mains distribution. Manufactured to BS 5467, this cable offers excellent performance for installations in air, concrete embedding, cable trays, or underground ducting.
Key Features of 5 Core 1.5mm² H6945XL1.5 XLPE Steel Wire Armoured PVC Cable
- Construction: Plain annealed copper conductor, thermosetting XLPE insulation, PVC bedding, galvanised steel wire armour, and a durable PVC sheath.
- Voltage Rating: 600/1000V ensures reliable performance in challenging environments.
- Temperature Range: Operates between -15°C and +90°C, making it suitable for various applications.
- Bending Radius: Minimum of 8x the outer diameter for installation flexibility.
- Core Colours:
- Twin Core: Brown and Blue
- Three Core: Brown, Black, Grey
- Four Core: Blue, Brown, Black, Grey
- 5 Core: Green/Yellow, Blue, Brown, Black, Grey
- Sheath Colour: Black for UV resistance and durability.
- Compliance: Fully adheres to BS EN 60228 and BS 7655 standards for quality and safety.
Specifications
- Conductor: Class 2 stranded plain annealed copper.
- Insulation: Thermosetting XLPE Type GP8.
- Sheath Material: PVC Type 9.
- Nominal Thickness:
- Insulation: 0.6 mm
- Bedding: 0.8 mm
- Armour Wire Diameter: 0.9 mm
- Oversheath: 1.4 mm
- Approximate Diameter: 12.8 mm.
- Weight: ~433 kg/km.
- Recommended Gland Size: 20S.
Applications
The 5 Core 1.5mm² H6945XL1.5 XLPE SWA PVC Steel Wire Armoured Cable is suitable for:
- Industrial and commercial wiring systems.
- Mains power distribution in demanding environments.
- Outdoor installations, including direct burial and underground ducting.
- Secure installations on cable trays, ladders, or embedded in concrete.
Compliance
This steel wire armoured cable meets the current carrying capacity standards in Table 4E4A of BS 7671 IET Wiring Regulations, ensuring safety and high performance across all installations.
Why Choose Doncaster Cables?
The 5 Core 1.5mm² H6945XL1.5 XLPE SWA PVC Steel Wire Armoured Cable is manufactured by Doncaster Cables, a trusted name in industrial wiring solutions. Electrical4Less, an authorised distributor, ensures you get this premium product cut to your required length.
