Description
Reliable LSZH Cable for Industrial Applications
Doncaster Cables SWA LSZH Steel Wire Armoured Cable
Introducing the Doncaster SWA LSZH cable, a robust solution for your electrical wiring needs. Manufactured to BS 6724 standards, this cable is expertly designed for enhanced safety in installations where smoke and acid gas emissions can pose risks. The SWA cable ensures dependable performance, while the low smoke zero halogen (LSZH) features offer significant fire safety advantages.
Overview

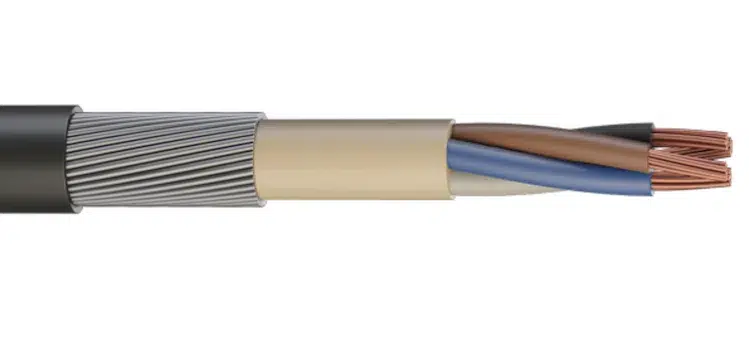

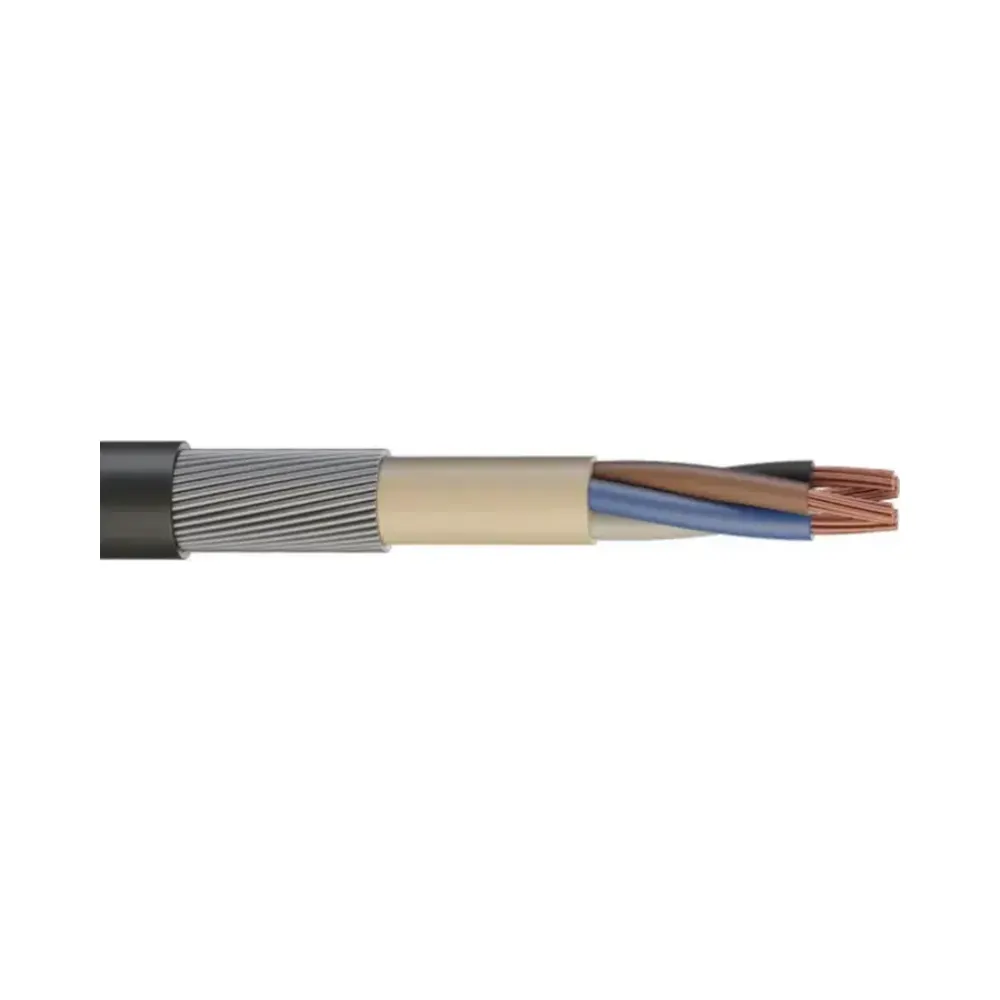

This cable features a plain annealed copper conductor, insulated with thermosetting XLPE. The unique LSNH bedded design is complemented by galvanised steel wire armouring, ensuring maximum protection. With a voltage rating of 600/1000V, this cable has a minimum operating temperature of -15°C and can withstand temperatures up to 90°C.
Key Features of Doncaster Cables LSZH SWA 5 Core 1.5mm² – 100 Metres
- Manufactured to BS 6724 standards.
- Plain annealed copper conductor.
- XLPE insulated for better performance.
- LSNH bedding and sheath for fire safety.
- Galvanised steel wire armouring for added protection.
- Available in various core configurations.
Applications
Ideal for industrial wiring, this cable is suitable for use around buildings and in various environments. Its robust design makes it perfect for installations in air or mounted on cable trays. You can also embed it into concrete or bury it directly in the ground.
Specifications
Conductor: Plain Annealed Copper Class 2 Stranded to BS EN 60228.
Insulation: Thermosetting XLPE Type GP8 to BS 7655-1.3.
Sheath: LSNH Type LTS1 to BS 7655-6.1.
Min Bending Radius: 8 x ∅.
Core Colours: 2 Core – Brown and Blue; 3 Core – Brown, Black and Grey; 4 Core – Blue, Brown, Black, and Grey; 5 Core – Green/Yellow, Blue, Brown, Black, and Grey.
Sheath Colour: Black.
Current Carrying Capacity: Refer to table 4E4A of BS7671 IEE Wiring Regulations for details.
Why Choose This Product
Choosing the Doncaster SWA LSZH cable ensures compliance with the latest BS7671 Wiring Regulations. At Electrical4Less, we supply only high-quality cables sourced from UK-based distributors. This guarantees that your purchases meet all safety, reliability, and industry standards.
Ensure the safety and performance of your electrical installations. Opt for the Doncaster SWA LSZH Steel Wire Armoured Cable today.
