Durable Armoured Cable for Industrial Use

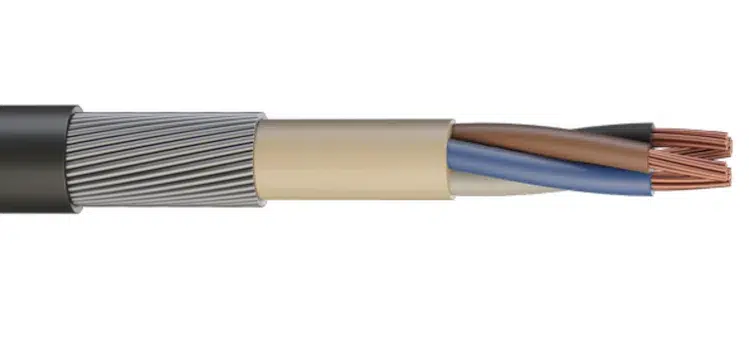

Doncaster Cables SWA LSZH Steel Wire Armoured Cable
Our Armoured Cable is meticulously engineered to comply with BS 6724 specifications. This ensures superior performance and reliability in various industrial applications. Featuring Plain Annealed Copper Conductor and XLPE Insulated layers, our cable excels in high-voltage situations of 600/1000V. It meets the latest fire safety standards with LSNH bedding and sheathing, significantly reducing smoke and acid gas emissions.
Overview
This cable is ideal for environments where fire safety is crucial. The steel wire armouring provides robust protection against mechanical damage, making it perfect for installations in and around buildings. Designed for various configurations, this product suits a range of core options for flexible wiring solutions.

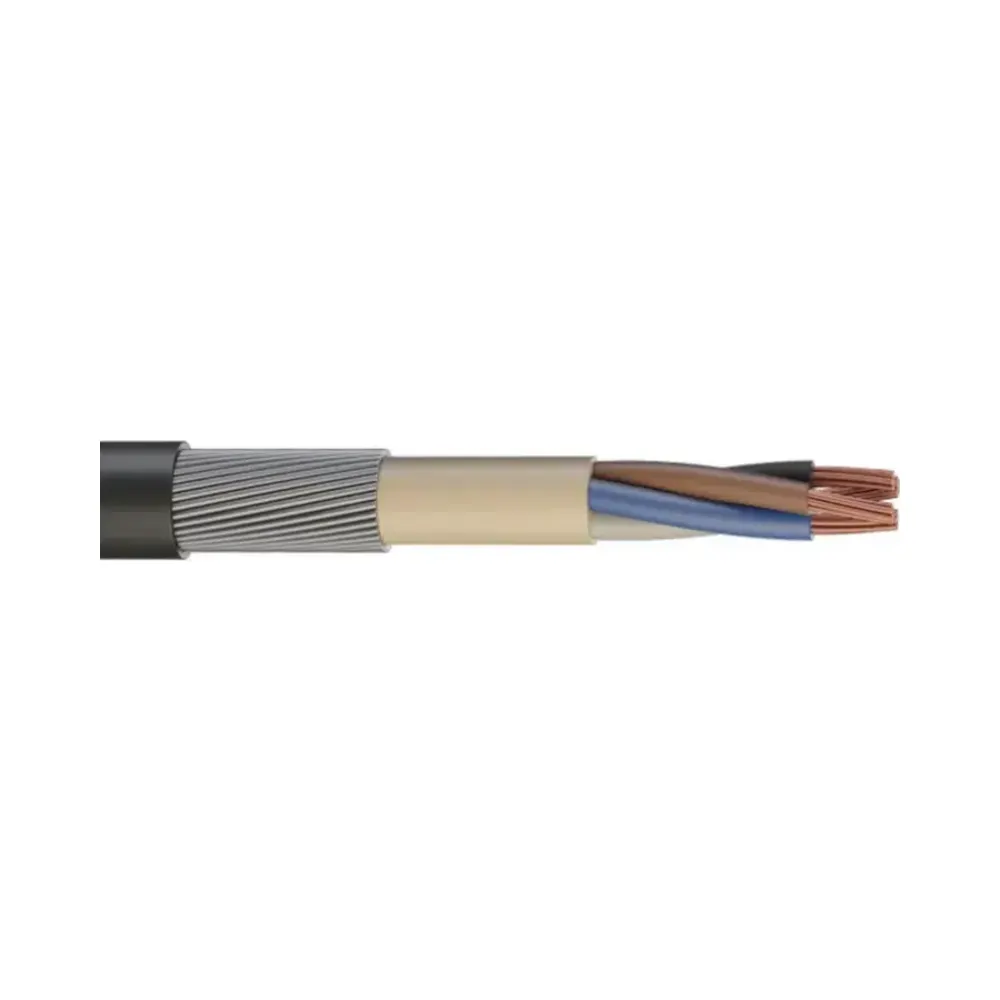

Key Features of Doncaster Cables LSZH SWA 3 Core 6.0mm² – 25 Metres
- Manufactured to BS 6724 standards for multiple core configurations
- Plain annealed copper conductor for effective electrical conductivity
- Thermosetting XLPE insulation for durability and performance
- LSNH bedding and sheath to minimise smoke emissions during a fire
- Galvanised steel wire armour for protection against physical risks
- Wide temperature range: Min -15°C to Max 90°C for versatile usage
Applications
This armoured cable is predominantly used for industrial wiring and mains distribution projects. Its rugged design makes it suitable for various applications, including:
- Residential electrical installations
- Commercial environments
- Heavy-duty industrial settings
- Embedded in concrete or directly buried underground
Specifications
Here are the key specifications for this armoured cable:
- Conductor: Plain Annealed Copper Class 2, stranded to BS EN 60228
- Insulation: Thermosetting XLPE Type GP8 as per BS 7655-1.3
- Sheath: LSNH Type LTS1 conforming to BS 7655-6.1
- Core Colours: Varied based on core configuration (e.g., Brown, Blue)
- Min Bending Radius: 8 x ∅
- Current Carrying Capacity: Refer to BS7671 IEE Wiring Regulations
Why Choose This Product
Choosing our Armoured Cable guarantees quality and compliance with UK electrical standards. Electrical4Less sources all cables from UK-approved distributors, ensuring adherence to British Standards. This commitment means you receive products that are safe, reliable, and ready for any electrical challenge. Invest in quality and peace of mind with our SWA LSZH cables.
