Description
Durable Steel Wire Armoured Cable for Versatile Applications

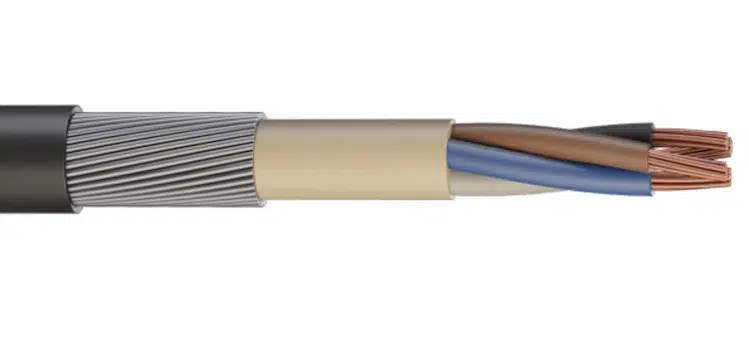

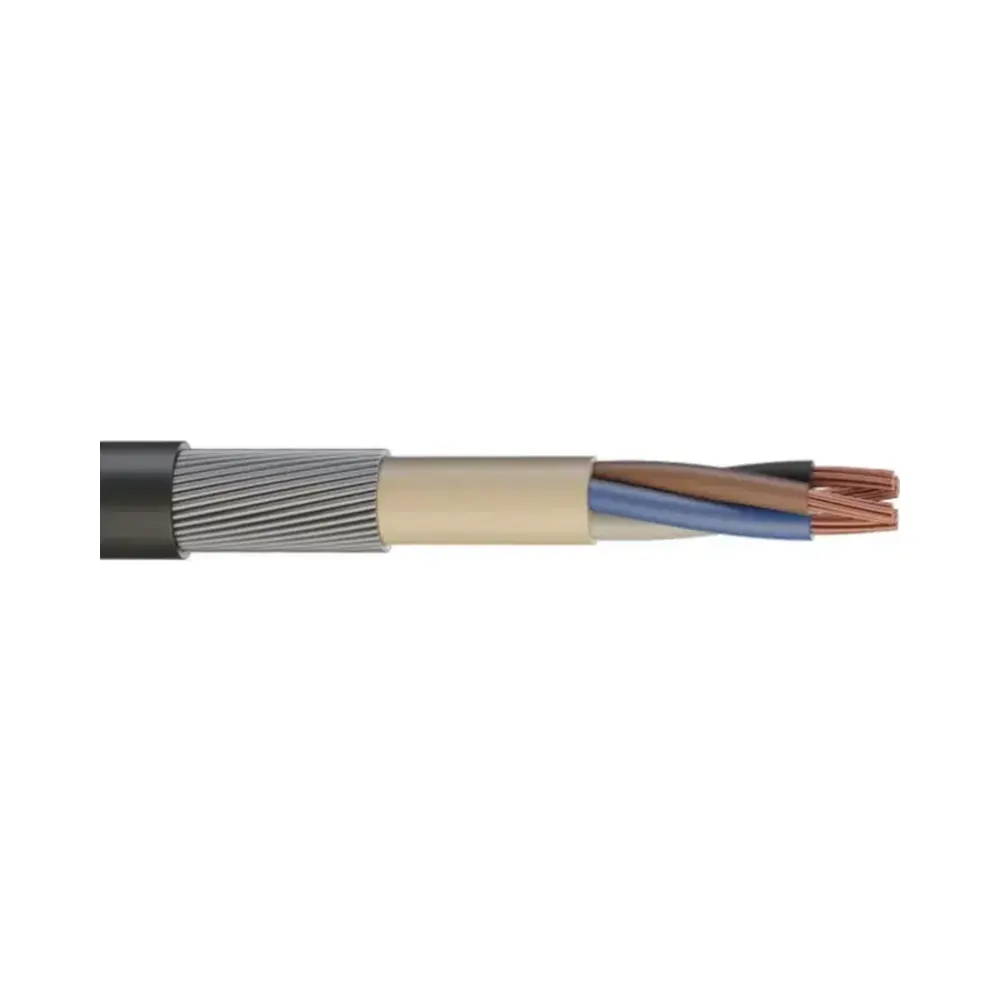

Doncaster Cables SWA LSZH Steel Wire Armoured Cable
The Doncaster Cables SWA LSZH Steel Wire Armoured Cable is expertly designed for safe and efficient electrical installations. Manufactured to BS 6724 Table 6 (2 Core), Table 8 (3 Core), Table 10 (4 Core), and Table 13 (5 Core), this resilient cable ensures reliable performance while maintaining essential safety standards.
Overview
Constructed with a Plain Annealed Copper Conductor, this cable uses XLPE insulation and an LSNH bedded design to reduce smoke and acid gas emissions during a fire. The products are rated for 600/1000V applications, making them suitable for a range of environments.
Key Features of Doncaster Cables LSZH SWA 3 Core 2.5mm² – 100 Metres
- Conductor: Plain Annealed Copper Class 2 Stranded to BS EN 60228.
- Insulation: Thermosetting XLPE Type GP8, adhering to BS 7655-1.3.
- Sheath: LSNH Type LTS1, meeting BS 7655-6.1 standards.
- Min Operating Temperature: -15°C, enabling versatile use in cold conditions.
- Max Operating Temperature: 90°C, providing high resistance to heat.
- Min Bending Radius: 8 x diameter, ensuring installation ease.
- Core Colours: Varies as per the number of cores provided.
- Sheath Colour: Black for clear identification.
Applications
These Steel Wire Armoured cables are predominantly used for industrial wiring and mains distribution. Their robust composition makes them perfect for installations in industrial areas, surrounding buildings, and similar complex environments.
They can be laid in air, clipped to surfaces, placed on cable trays, embedded in concrete, or directly buried in ducts or underground. Such versatility ensures broad applications across sectors.
Specifications
- Current Carrying Capacity: Refer to Table 4E4A of BS7671 IEE Wiring Regulations for specifications.
Why Choose This Product
Choosing the Doncaster Cables SWA LSZH cable guarantees compliance with UK wiring standards. Its construction reduces hazards associated with smoke and acid gas emissions during fires. Importantly, at Electrical4Less, we guarantee that our cables come from UK-based distributors who adhere to British Standards and relevant requirements. This commitment underlines our dedication to your safety and satisfaction.
