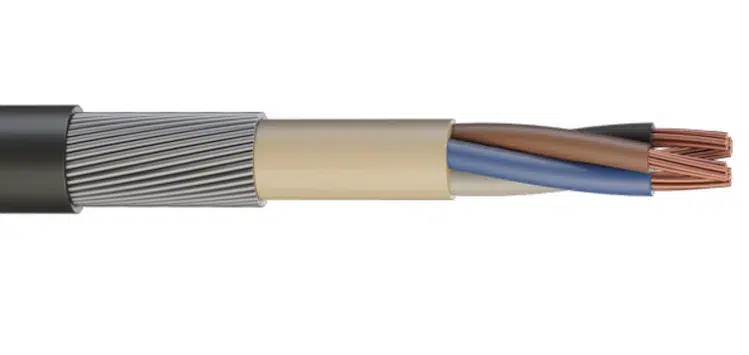

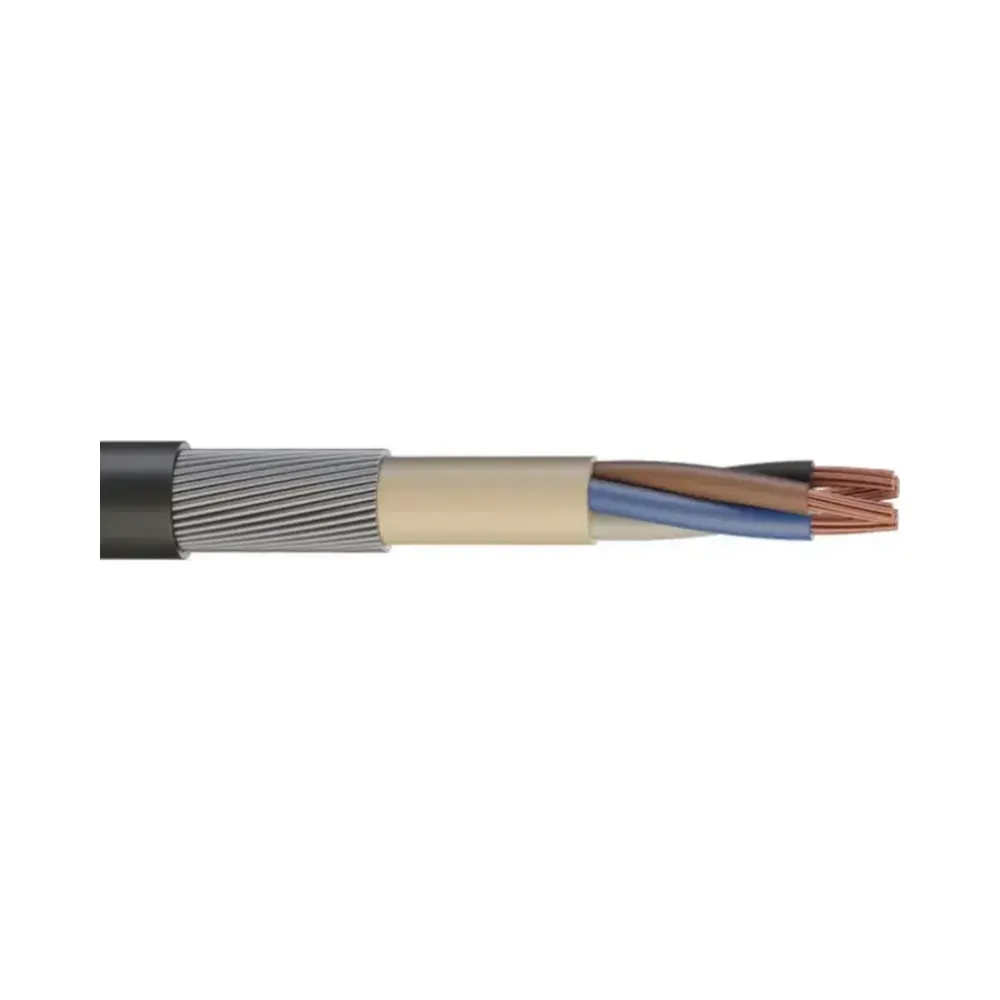

High-Performance Armoured Copper Cable
Doncaster Cables SWA LSZH Steel Wire Armoured Cable
The High-Performance Armoured Copper Cable is meticulously manufactured to meet the BS 6724 standards. Available in various core configurations, it features plain annealed copper conductors and XLPE insulation, making it ideal for diverse electrical installations. The LSNH bedded design ensures minimal smoke and acid gas emissions during a fire, enhancing safety in critical environments.
Overview
These cables are specifically designed for use in installations where fire hazards exist. The steel wire armouring provides exceptional protection, making it perfect for industrial wiring and mains distribution. Its robust construction allows for installation in various settings, including buried direct underground or embedded in concrete, ensuring versatility.
Key Features of Doncaster Cables LSZH SWA 3 Core 10mm² – 100 Metres
- Manufactured to BS 6724 with multiple core options.
- Plain annealed copper conductors for superior conductivity.
- XLPE insulation that withstands high temperatures and provides durability.
- LSNH bedding and sheath for safety in fire-prone environments.
- Rated for 600/1000V applications.
- Resistance to smoke and acid gas emissions.
Applications
This cable is suited for numerous applications, including residential, commercial, and industrial installations. Use it in industrial areas, around buildings, and similar environments. Its adaptability allows for various installation methods, including air, surface-mounted, or underground in ducting.
Specifications
- Conductor: Plain Annealed Copper Class 2 Stranded to BS EN 60228.
- Insulation: Thermosetting XLPE Type GP8 to BS 7655-1.3.
- Sheath: LSNH Type LTS1 to BS 7655-6.1.
- Temperature Range: Min -15°C, Max 90°C.
- Min Bending Radius: 8 x ∅.
- Core Colours: Varied based on core count.
- Current Carrying Capacity: Refer to table 4E4A of BS7671 IEE Wiring Regulations.
- Sheath Colour: Black.
- Fully compliant with BS7671 Wiring Regulations.
Why Choose This Product
Choosing the High-Performance Armoured Copper Cable ensures you receive a product from UK-based distributors. This guarantees compliance with all British Standards and relevant regulations, ensuring safety and reliability. Trust in Electrical4Less to provide components that meet the highest industry benchmarks.
