ALL LED High Bays

Explore ALL LED high bays at Electrical4Less, including LUMOMAX 100W, 150W and 200W IP65 industrial LED fittings. With selectable wattage, colour temperature and 0–10V dimming, they offer flexible lighting for warehouses, factories and commercial premises. Browse our ALL LED Lighting range for more products.

Showing all 6 results

LUMOMAX AHB/200/CCT | LumoMax | 0–10V Dimmable | 200W IP65 Highbay | CCT Selectable

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: AHB/200/CCT
£69.33

LUMOMAX AHB/150/CCT | LumoMax | 0–10V Dimmable | 150W IP65 Highbay | CCT Selectable

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: AHB/150/CCT
£58.99

LUMOMAX AHB/EM/ST | LumoMax | IP65 | Self Testing Emergency Pack

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: AHB/EM/ST
£104.70

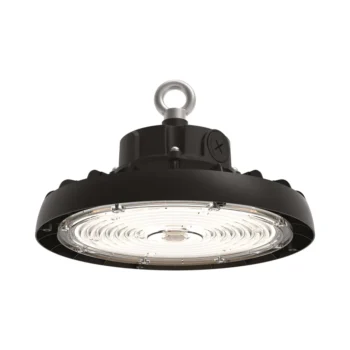

LUMOMAX AHB/100/CCT | LumoMax | 0–10V Dimmable | 100W IP65 Highbay | CCT Selectable

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: AHB/100/CCT
£50.13

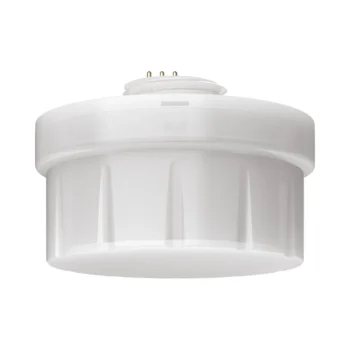

LUMOMAX AHB/MS | LumoMax | IP65 | Highbay Microwave Sensor

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: AHB/MS
£15.80

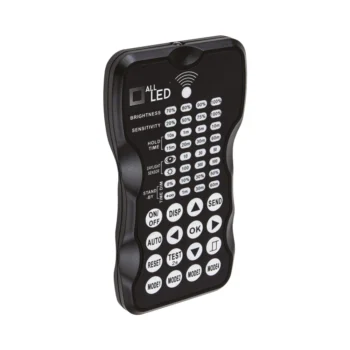

LUMOMAX AHB/RMT | LumoMax | Highbay Sensor Remote Programmer

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: AHB/RMT
£31.67

Showing all 6 results

ALL LED High Bays – LUMOMAX Industrial LED Lighting

Discover the ALL LED LUMOMAX high bay range for warehouses, factories, distribution centres, workshops and other high-ceiling commercial premises. These industrial LED high bay lights combine high lumen output with selectable wattage, adjustable colour temperature and 0–10V dimming.

ALL LED LUMOMAX 100W, 150W and 200W High Bays

The LUMOMAX range includes three models with selectable power settings:

  • AHB/100/CCT – 60W, 80W or 100W, producing up to 16,210 lumens.
  • AHB/150/CCT – 100W, 120W or 150W, producing up to 23,479 lumens.
  • AHB/200/CCT – 120W, 150W or 200W, producing up to 32,208 lumens.

Selectable wattage allows installers to adjust the power and light output to suit the lighting design without changing the complete fitting.

CCT Selectable LED High Bays

ALL LED LUMOMAX high bays offer selectable 3000K warm white, 4000K cool white and 5000K white lighting. This flexibility allows the colour temperature to be selected during installation according to the intended application.

All three LUMOMAX fittings feature IP65 ingress protection, IK08 impact resistance and a 90-degree beam angle.

0–10V Dimmable High Bay Lighting

The LUMOMAX range includes 0–10V dimming as standard, allowing compatible lighting control systems to adjust light output where required.

This can be useful in warehouses, industrial units and commercial premises where lighting levels may need to change according to occupancy, daylight availability or operational requirements.

Check compatibility with the selected 0–10V controller and follow the manufacturer’s wiring instructions.

LUMOMAX Microwave Sensors and Emergency Accessories

ALL LED offers compatible accessories to extend the functionality of LUMOMAX high bay fittings:

  • AHB/MS – IP65 microwave sensor with corridor and daylight sensing functions.
  • AHB/EM/ST – IP65 self-testing emergency pack offering up to 3 hours of emergency operation.
  • AHB/RMT – Remote programmer for configuring compatible high bay sensors.

These accessories are selected separately. Standard LUMOMAX high bays should not be described as emergency fittings unless the correct compatible emergency equipment is installed.

Choosing the Right Industrial LED High Bay

When selecting high bay lighting for warehouses or industrial premises, consider the following:

  • Mounting height – Select fittings and light distribution suitable for the ceiling height.
  • Lumen output – Calculate the lighting requirements for the working area.
  • Wattage – Choose the appropriate selectable power setting.
  • Colour temperature – Select 3000K, 4000K or 5000K according to the application.
  • Lighting controls – Consider 0–10V dimming and compatible occupancy sensors.
  • Emergency lighting – Assess whether a compatible emergency pack or separate emergency lighting provision is required.
  • Environment – Check the IP and IK ratings against the installation conditions.

For commercial and industrial installations, lighting levels, uniformity and emergency lighting requirements should be determined through an appropriate lighting design.

Why Buy ALL LED High Bays from Electrical4Less?

Electrical4Less is an independent electrical wholesaler based in Fulham, London, and a member of the Independent Buyers Association (IBA). Through our established working relationship with ALL LED, we support electricians and contractors with product selection, technical enquiries, lighting controls and project requirements.

For larger installations, our team can assist with product availability, estimated costs and quotations for multiple fittings and accessories.

ALL LED LUMOMAX High Bay Technical Guide

For more detailed information about the available models, wattage settings, dimming functions and compatible accessories, read our ALL LED LUMOMAX High Bays Guide.</
