Wago Capsule Black 51312607
SKU: 51312607

In stock (26) More Available in 1-3 Days

Dimensions: Lid Diameter 92mm, Height 122mm, Body width 85mm

Ingress Protection: up to IP68

Product Includes: Capsule Base, Lid, 2 x O rings and 1 x Sachet of Silicone Grease

Next Day Delivery Service for orders placed before 2pm* UK mainland
Postcodes in Zones : C B D ( Scotland , Northern Island , Scottish Islands ).
Please allow 2-4 working days delivery time.

£6.59 + VAT

(incl. VAT £7.91)

The WAGOBOX-Capsule is an IP68 enclosure, waterproof to a depth of 4 m when used with the appropriate cable glands.

Quantity Price
1 - 4 £6.59
5 - 9 £5.89
10+ £5.79
x
Category: Tags: ,

Description

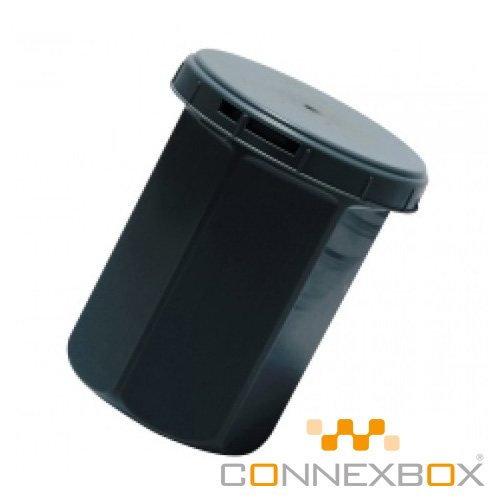

Wago Capsule Black 51312607

The WAGOBOX-Capsule is an IP68 enclosure, waterproof to a depth of 4 m when used with the appropriate cable glands.
Rated 400V / 4kV.

If you are in anyway unsure about any of the following steps or how to connect the circuit, consult a qualified electrician.
Incredibly Simple…

The WAGOBOX-Capsule is easy to use and fast to fit, just follow the steps below and discover how the WAGOBOX-Capsule can revolutionise the way you work.

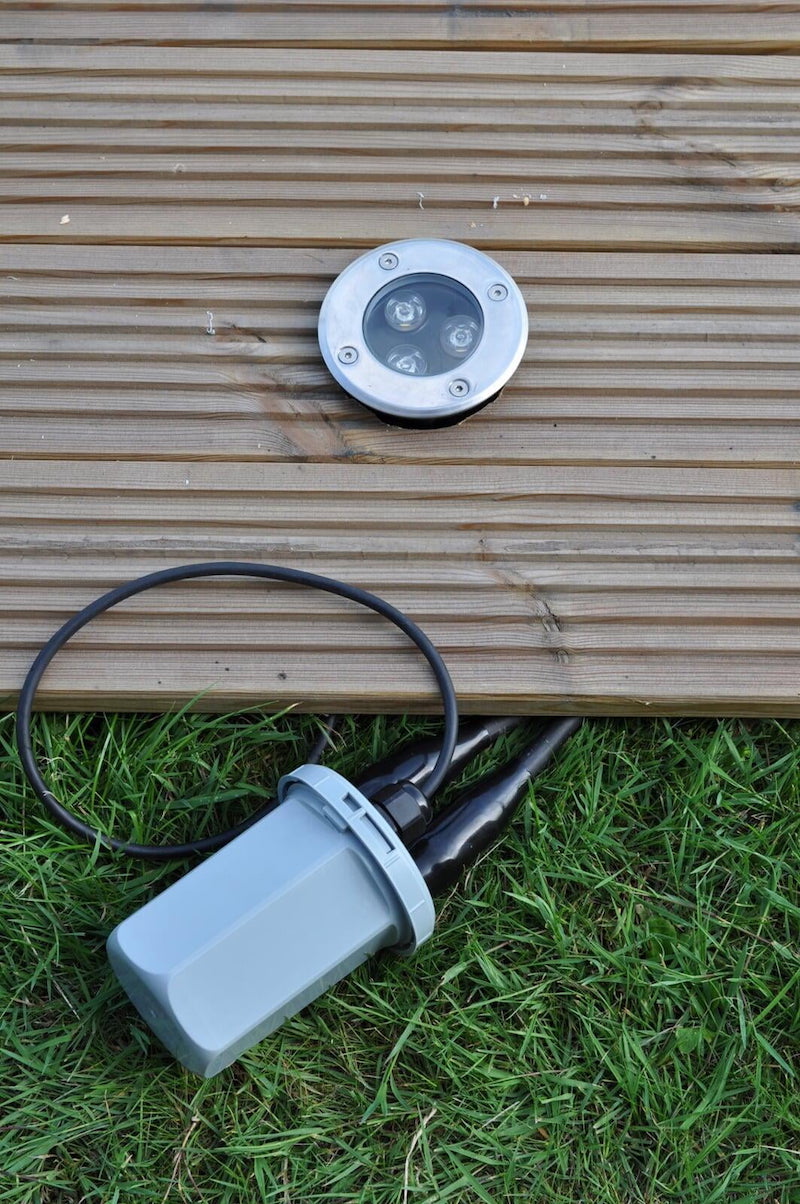

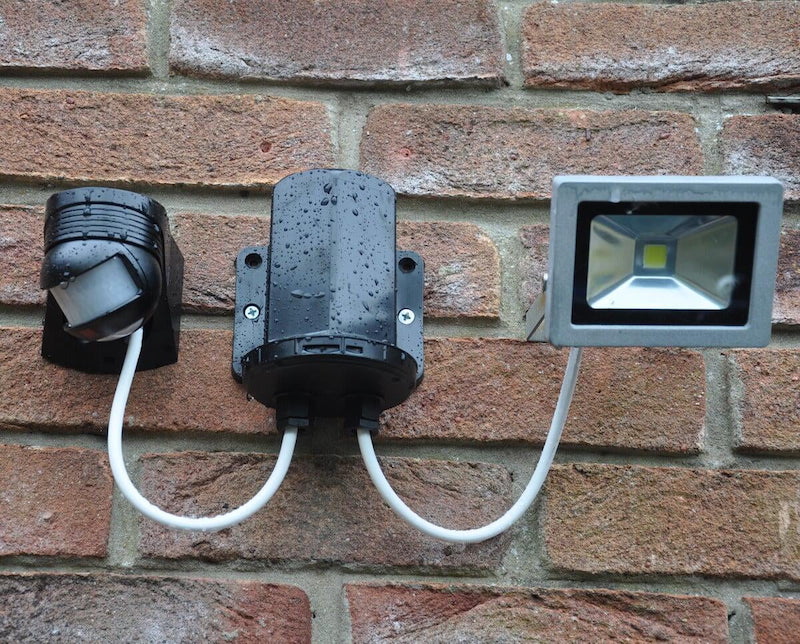

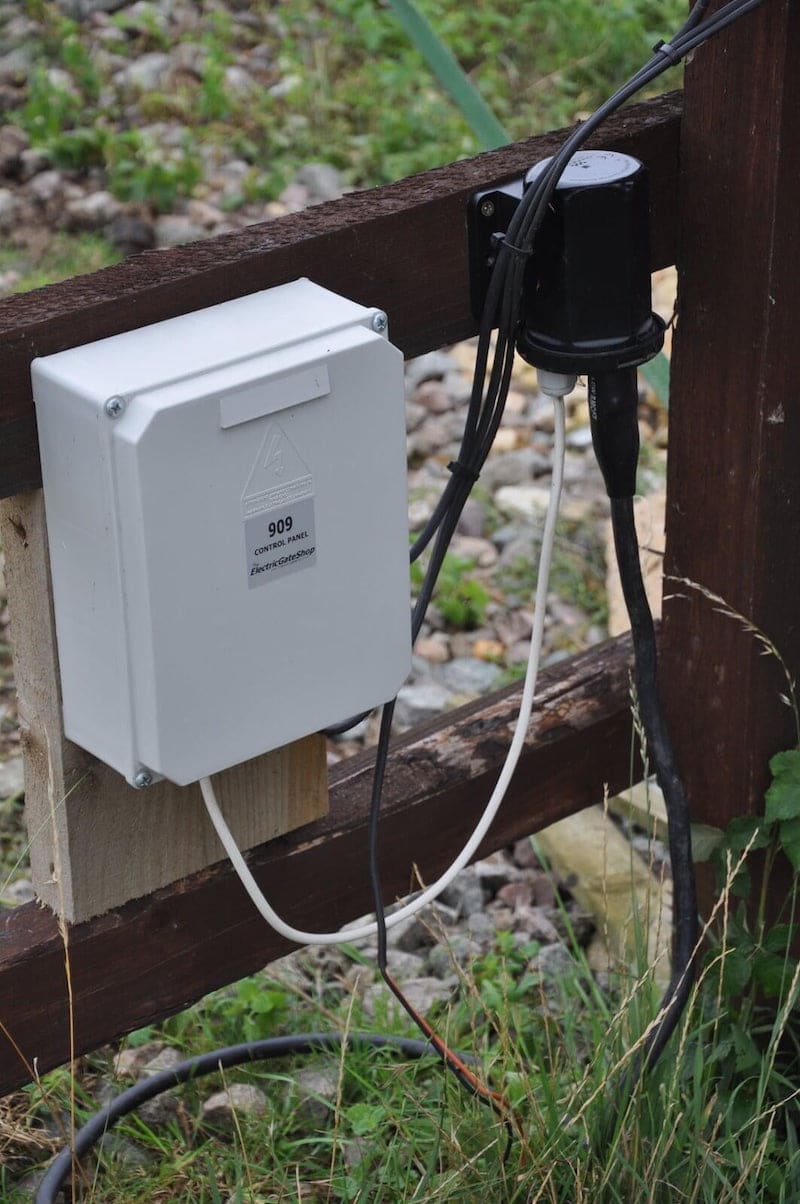

The WAGOBOX-Capsule can be installed inside, outside or even directly buried into soil.

The WAGOBOX-Capsule is robust and manufactured from UV resistant materials allowing installation in locations that are sunny, wet, dusty or muddy.

Care should be taken to avoid installation into locations that will result in severe forces being exerted directly onto the enclosure, such as directly under road surfaces and walk ways without sufficient coverage.

Standard IP2X electrical enclosures do not protect the electrical terminals they contain from the surrounding environment.

In locations where hazardous substances, such as water, are present terminals need to be protected to ensure that the safety of the electrical circuit is not compromised.

Contamination of the electrical terminals can result in degradation of the electrical connection, arcing between terminals and tracking of dangerous voltages to the outside of the enclosure.

The WAGOBOX-Capsule protects the electrical terminals and can prevent the ingress of water and dust even when submerged, thus ensuring the circuit connections remain safe and secure.

For speedy installation use Wago connectors in conjuction with WAGO Capsules



Additional information

Brand
Connexbox, Wago
Type of Product
Enclosures
Product Family
Wago Capsule
