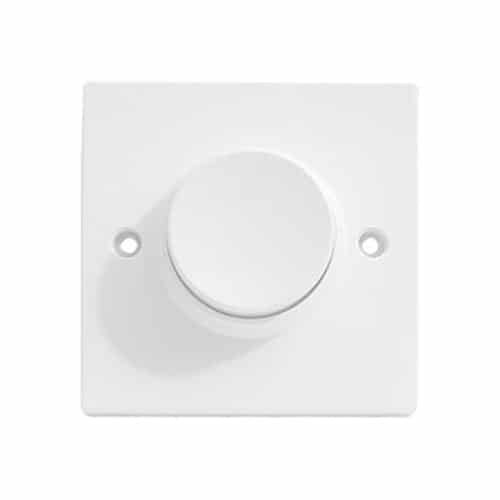

Pneumatic Time Delay Switch The timing can be adjusted between 10 seconds and 10 minutes by turning the brass timing screw in the centre of the plate on the back of the unit. Turning the timing screw clockwise will increase the time delay.
The switch is operated by pressing the plunger button. This will “make”.
The plunger will gradually return to its original position during the time delay sequence, eventually returning the contacts to their original position.
The face-plate is moulded in a semi-translucent material and therefore it is normal to occasionally see a flash when the contacts “make” or “break”
Pack Qty: 1 Main Housing Material:Polycarbonate
Conforms to:BS EN 60730-2-7
Dimensions:H85 x W85 x D42mm
GLS load:6A, 1440 watts
Fixings:2 x 25mm, 3.5mm
Fluorescent Load:3A, 720 watts
Time Delay:10 Seconds to 10 Minutes
