Description

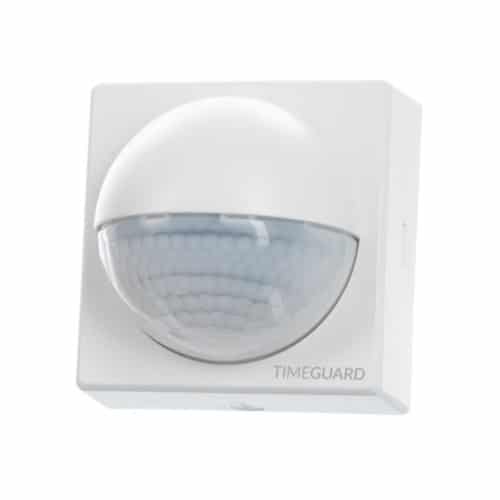

Timeguard PIR Anti Tamper Light Controller – White
With its high powered LED loading, this anti-tamper PIR Controller is a strong visible deterrent for use in most public use areas including stairways.
- Switches light ON when presence and motion is detected in combination with light levels (LUX adjustment) pre-set by user.
- Tamper proof design.
- 180° 12 metre detection.
- Zero crossing circuitry.
- IP55 weatherproof rating.
- Manual override.
- Adjustable time setting – 2 seconds to 30 minutes.
- Adjustable 2 to 1000 LUX setting.
- Quick fit terminal block connector.
- 2300W Halogen, 500W Fluorescent and LED switching.
- Optional corner bracket.
- MLTP180WH 2300W 180° PIR Anti Tamper Light Controller – White
SPECIFICATION
| Operating Voltage | 230V AC |
|---|---|
| Lamp Load (W) | Fluorescent/Low Energy 500, Filament 2300, LED 500 |
| Weatherproof Rating | IP55 |
| Detection Range (Max) Metres | 12 |
| Angle of Detection | 180º |
| Light ON Time After Last Detection (Adjustable) | 2 Seconds (Min), 30 Minutes (Max) |
| Permanent ON Facility | Electronic |
| Adjustable Light Level Control | Yes |
| Anti Tamper | Yes |
| EC Directives | Conforms to Latest Directives |
| Overall Dimensions (mm) | Height 82, Width 82, Depth 67 |
