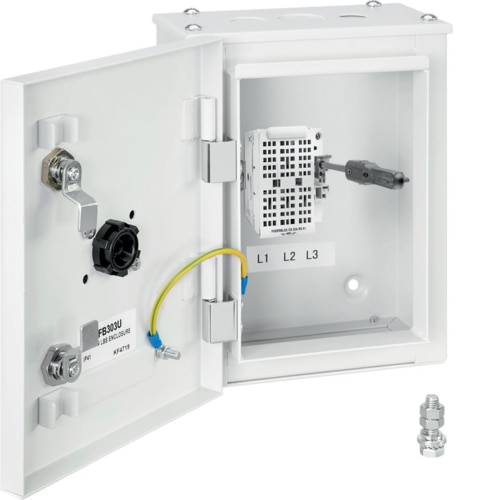

Hager 32A TP+N Metal Fused Switch JFB303U

Dispatch 7-14 Days

£249.00 + VAT

(incl. VAT £298.80)

This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.

Dimensions: 200 x 250 x 150mm (W x H x D)

  • Designed to complement both the TP&N and panelboard ranges
  • Provides individual protection and control of individual circuits
  • Designed to provide adequate cabling space without the need for additional cable spreader boxes
  • Operation of the device is through a door mounted rotary handle
  • Mechanically interlocked to prevent access to live conductors when the switch is in the on position
  • The handle is also padlockable in the off position
  • All versions will accept standard BS88 fuse links
  • Can be converted to switch disconnector by ftting copper links
  • Complies with: BS EN 60947-3 IP31
Category: Tag:


Hager 32A TP+N Metal Fused Switch JFB303U

The Hager JFB302U is a TP&N (triple pole and neutral) enclosed fuse combination switch, designed to provide individual protection and control of 20A circuits. The enclosure is safe and convenient, with a padlockable handle and plenty of space included for cabling (16mm² capacity), while maximum rated fuse links are also fitted.

Current Rating 32A
Depth 150mm
Dimensions (H)250 mm x (W)200 mm x (D)150 mm
Guarantee 2 Years
Handle Type Rotary Door Mounted
Height 250mm
Mounting Surface
Number of Poles Triple Pole and Neutral
Packaging Types Each
Product Range Commercial Distribution
Standards BS EN 60947
Supplied With Fuses Fitted
Terminal Capacity 16mm²
Type Fuse Combination Switch
Unspsc 39122233
Voltage Rating 415V
Weight 5.1kg
Width 200mm


For our all Three Phase Products click here


Additional information

Consumer Unit Type
Three Phase, Switched Fuse
