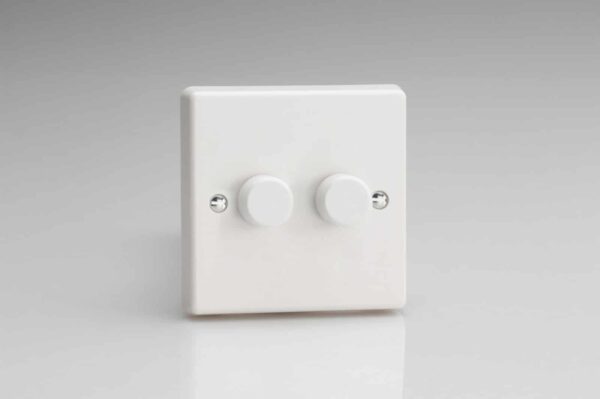

Thank you for choosing a VARILIGHT 2 Gang V-PRO LED Dimmer 0-120W intelligent programmable dimmerswitch. Use only on an electricity supply of 230VAC 50Hz.
IMPORTANT: Read ALL sections here before installing this dimmerswitch. V-Pro dimmers are set to run in trailing-edge mode (MODE 1) by default. This versatile mode is suitable for most types of lighting recommended below.
The alternative trailing-edge mode (MODE 3) may improve the performance of some dimmable LEDs. Some other lighting loads, including some types of LED, perform best in Mode 2. This is a simulated leading edge mode (not TRIAC) which is suitable for use with certain types of LED light. To change the mode, follow the instructions under “Programming” below.
This product complies with European Safety Regulations (IEC 669-2-1 or BSEN 60669-2-1) when used in lighting circuits containing MCBs (miniature circuit breakers). These can be rated at 6A, 10A or 16A (preferably 6A for lighting circuits).Your guarantee is not affected if you have an older lighting circuit protected by fuse wire links.
At the time of installation it is your responsibility to make sure that the lamps in your installation are visibly on, even at the lowest brightness setting [see “Adjusting the Minimum Brightness” under “Programming”]. This will allow your installation to comply with the EU EcoDesign Regulation 1194/2012. To optimise the dimming range for LED lighting in particular the minimum brightness setting of the dimmer can be adjusted [see “Adjusting the Minimum Brightness” under “Programming”].
